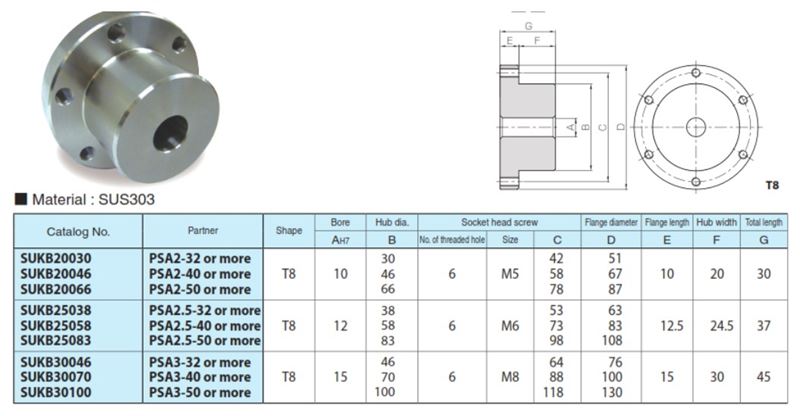

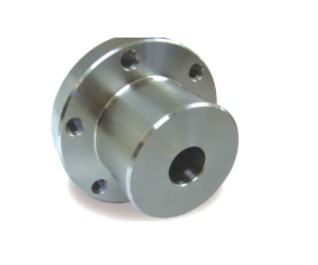

Stainless Steel Hubs for PSA Plastic Spur Gears (SUKB) On KHK Gears

Free Delivery

This is an attached stainless steel hub with excellent rust resistance.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.

1 - 9 of 9 | Results Per Page | View | Unit of Measure

Request Information Compare Items

Clear Filter

Bore Diameter (A) (in)

Bore Diameter (A) (mm)

Hub Diameter (B) (in)

Hub Diameter (B) (mm)

Socket Head Screw Size

Flange Diameter (D) (in)

Flange Diameter (D) (mm)

Hub Width (F) (in)

Hub Width (F) (mm)

Item #	Sell Price	CAD	Bore Diameter (A)	Hub Diameter (B)	Flange Diameter (D)	Hub Width (F)	Total Length (G)	Internal ID	Sell Price 1 Value

SUKB20030	$120.78	N/A	N/A 0.394 in10 mm	N/A 1.181 in30 mm	N/A 2.008 in51 mm	N/A 0.787 in20 mm	N/A 1.181 in30 mm	N/A 28709	120.78
SUKB20046	$155.98	N/A	N/A 0.394 in10 mm	N/A 1.811 in46 mm	N/A 2.638 in67 mm	N/A 0.787 in20 mm	N/A 1.181 in30 mm	N/A 28710	155.98
SUKB20066	$208.05	N/A	N/A 0.394 in10 mm	N/A 2.598 in66 mm	N/A 3.425 in87 mm	N/A 0.787 in20 mm	N/A 1.181 in30 mm	N/A 28711	208.05
SUKB25038	$155.09	N/A	N/A 0.472 in12 mm	N/A 1.496 in38 mm	N/A 2.480 in63 mm	N/A 0.965 in24.5 mm	N/A 1.457 in37 mm	N/A 28712	155.09
SUKB25058	$216.01	N/A	N/A 0.472 in12 mm	N/A 2.283 in58 mm	N/A 3.268 in83 mm	N/A 0.965 in24.5 mm	N/A 1.457 in37 mm	N/A 28713	216.01
SUKB25083	$312.93	N/A	N/A 0.472 in12 mm	N/A 3.268 in83 mm	N/A 4.252 in108 mm	N/A 0.965 in24.5 mm	N/A 1.457 in37 mm	N/A 28714	312.93
SUKB30046	$223.18	N/A	N/A 0.591 in15 mm	N/A 1.811 in46 mm	N/A 2.992 in76 mm	N/A 1.181 in30 mm	N/A 1.772 in45 mm	N/A 28715	223.18
SUKB30070	$352.11	N/A	N/A 0.591 in15 mm	N/A 2.756 in70 mm	N/A 3.937 in100 mm	N/A 1.181 in30 mm	N/A 1.772 in45 mm	N/A 28716	352.11
SUKB30100	$507.93	N/A	N/A 0.591 in15 mm	N/A 3.937 in100 mm	N/A 5.118 in130 mm	N/A 1.181 in30 mm	N/A 1.772 in45 mm	N/A 28717	507.93

1 - 9 of 9 | Results Per Page | View | Unit of Measure
