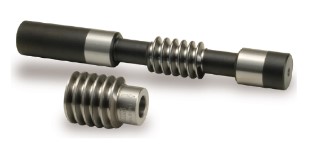

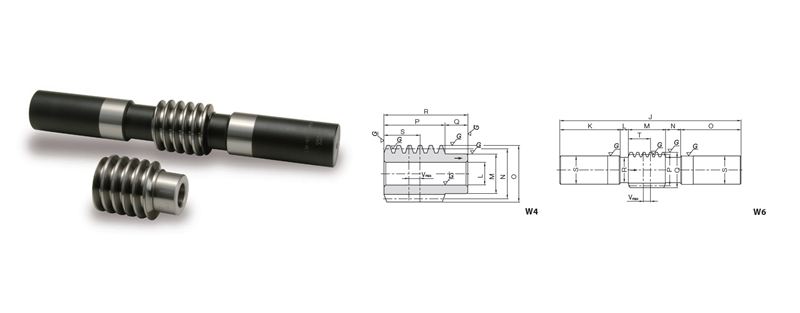

Duplex Worms (KWGDL - KWGDLS)
Worm Gears
A spiral bevel gears with a helix angle less than 10?. Receives forces from the same directions straight bevel gears receive and have excellent precision.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Item # |
Sell Price |
CAD |
Bore Type |
Nominal Axial Module |
Hand of Thread |
Shape |
Pitch Diameter (N) |
Internal ID |
Sell Price 1 Value |
|---|---|---|---|---|---|---|---|---|---|
| KWGDLS1.5-R1 | $183.25 |
CAD
N/A
|
Bore Type N/A | Nominal Axial Module N/A 1.5 | Hand of Thread N/A Right Hand | Shape N/A W6 | Pitch Diameter (N) N/A 0.984 in25 mm |
Internal ID
N/A
5828 |
183.25 |
| KWGDL2-R1 | $240.17 |
CAD
N/A
|
Bore Type N/A Plain | Nominal Axial Module N/A 2 | Hand of Thread N/A Right Hand | Shape N/A W4 | Pitch Diameter (N) N/A 1.220 in31 mm |
Internal ID
N/A
5821 |
240.17 |
| KWGDLS2-R1 | $255.52 |
CAD
N/A
|
Bore Type N/A | Nominal Axial Module N/A 2 | Hand of Thread N/A Right Hand | Shape N/A W6 | Pitch Diameter (N) N/A 1.220 in31 mm |
Internal ID
N/A
5829 |
255.52 |
| KWGDL2.5-R1 | $293.61 |
CAD
N/A
|
Bore Type N/A Plain | Nominal Axial Module N/A 2.5 | Hand of Thread N/A Right Hand | Shape N/A W4 | Pitch Diameter (N) N/A 1.457 in37 mm |
Internal ID
N/A
5822 |
293.61 |
| KWGDLS2.5-R1 | $334.39 |
CAD
N/A
|
Bore Type N/A | Nominal Axial Module N/A 2.5 | Hand of Thread N/A Right Hand | Shape N/A W6 | Pitch Diameter (N) N/A 1.457 in37 mm |
Internal ID
N/A
5830 |
334.39 |
| KWGDL3-R1 | $359.94 |
CAD
N/A
|
Bore Type N/A Plain | Nominal Axial Module N/A 3 | Hand of Thread N/A Right Hand | Shape N/A W4 | Pitch Diameter (N) N/A 1.732 in44 mm |
Internal ID
N/A
5823 |
359.94 |
| KWGDLS3-R1 | $440.96 |
CAD
N/A
|
Bore Type N/A | Nominal Axial Module N/A 3 | Hand of Thread N/A Right Hand | Shape N/A W6 | Pitch Diameter (N) N/A 1.732 in44 mm |
Internal ID
N/A
5831 |
440.96 |
| KWGDL3.5-R1 | $415.02 |
CAD
N/A
|
Bore Type N/A Plain | Nominal Axial Module N/A 3.5 | Hand of Thread N/A Right Hand | Shape N/A W4 | Pitch Diameter (N) N/A 2.087 in53 mm |
Internal ID
N/A
5824 |
415.02 |
| KWGDLS3.5-R1 | $565.13 |
CAD
N/A
|
Bore Type N/A | Nominal Axial Module N/A 3.5 | Hand of Thread N/A Right Hand | Shape N/A W6 | Pitch Diameter (N) N/A 2.087 in53 mm |
Internal ID
N/A
5832 |
565.13 |
| KWGDL4-R1 | $488.20 |
CAD
N/A
|
Bore Type N/A Plain | Nominal Axial Module N/A 4 | Hand of Thread N/A Right Hand | Shape N/A W4 | Pitch Diameter (N) N/A 2.441 in62 mm |
Internal ID
N/A
5825 |
488.2 |
| KWGDLS4-R1 | $698.22 |
CAD
N/A
|
Bore Type N/A | Nominal Axial Module N/A 4 | Hand of Thread N/A Right Hand | Shape N/A W6 | Pitch Diameter (N) N/A 2.441 in62 mm |
Internal ID
N/A
5833 |
698.22 |
| KWGDLS5-R1S | $2,550.80 | CAD N/A | Bore Type N/A | Nominal Axial Module N/A 5 | Hand of Thread N/A Right Hand | Shape N/A W6 | Pitch Diameter (N) N/A 2.756 in70 mm | 2550.8 | |
| KWGDLS6-R1S | $2,997.40 | CAD N/A | Bore Type N/A | Nominal Axial Module N/A 6 | Hand of Thread N/A Right Hand | Shape N/A W6 | Pitch Diameter (N) N/A 3.150 in80 mm | 2997.4 |
