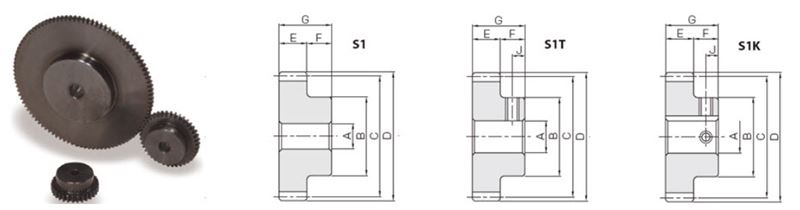

Thin Face Spur Gears (SSY) On KHK Gears

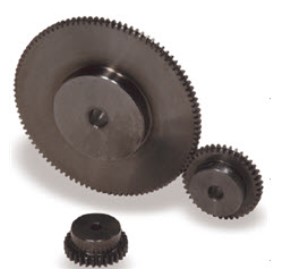

The SSY Spur Gears are made from carbon steel and are NOT hardened. These Spur Gears are designed with a narrower face width than the SS Series Spur Gears. These Spur Gears are suitable for light-duty applications. These Spur Gears are easily customizable.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.

1 - 25 of 121 | Results Per Page | View | Unit of Measure

1 2 3 4 5

Request Information Compare Items Search by Specification

Clear Filter

Bore Type

Module

No. of Teeth

Shape

Bore Diameter (A) (in)

Bore Diameter (A) (mm)

Pitch Diameter (C) (in)

Pitch Diameter (C) (mm)

Outer Diameter (D) (in)

Outer Diameter (D) (mm)

Total Length (G) (in)

Total Length (G) (mm)

Item #	Sell Price	CAD	Bore Type	Module	No. of Teeth	Shape	Bore Diameter (A)	Pitch Diameter (C)	Outer Diameter (D)	Total Length (G)	Internal ID	Sell Price 1 Value

SSY0.8-20	$13.76	N/A	N/A Plain	N/A 0.8	N/A 20	N/A S1	N/A 0.197 in5 mm	N/A 0.630 in16 mm	N/A 0.693 in17.6 mm	N/A 0.472 in12 mm	N/A 28598	13.76
SSY0.8-20A	$9,876.54	N/A	N/A Finished	N/A 0.8	N/A 20	N/A S1T	N/A 0.197 in5 mm	N/A 0.630 in16 mm	N/A 0.693 in17.6 mm	N/A 0.472 in12 mm	N/A 28599	9876.54
SSY0.8-25	$14.47	N/A	N/A Plain	N/A 0.8	N/A 25	N/A S1	N/A 0.197 in5 mm	N/A 0.787 in20 mm	N/A 0.850 in21.6 mm	N/A 0.472 in12 mm	N/A 28600	14.47
SSY0.8-25A	$9,876.54	N/A	N/A Finished	N/A 0.8	N/A 25	N/A S1T	N/A 0.197 in5 mm	N/A 0.787 in20 mm	N/A 0.850 in21.6 mm	N/A 0.472 in12 mm	N/A 28601	9876.54
SSY0.8-30	$14.74	N/A	N/A Plain	N/A 0.8	N/A 30	N/A S1	N/A 0.197 in5 mm	N/A 0.945 in24 mm	N/A 1.008 in25.6 mm	N/A 0.472 in12 mm	N/A 28602	14.74
SSY0.8-30A	$9,876.54	N/A	N/A Finished	N/A 0.8	N/A 30	N/A S1T	N/A 0.197 in5 mm	N/A 0.945 in24 mm	N/A 1.008 in25.6 mm	N/A 0.472 in12 mm	N/A 28603	9876.54
SSY0.8-40	$17.14	N/A	N/A Plain	N/A 0.8	N/A 40	N/A S1	N/A 0.197 in5 mm	N/A 1.260 in32 mm	N/A 1.323 in33.6 mm	N/A 0.472 in12 mm	N/A 28604	17.14
SSY0.8-40A	$9,876.54	N/A	N/A Finished	N/A 0.8	N/A 40	N/A S1T	N/A 0.236 in6 mm	N/A 1.260 in32 mm	N/A 1.323 in33.6 mm	N/A 0.472 in12 mm	N/A 28605	9876.54
SSY0.8-50	$20.41	N/A	N/A Plain	N/A 0.8	N/A 50	N/A S1	N/A 0.197 in5 mm	N/A 1.575 in40 mm	N/A 1.638 in41.6 mm	N/A 0.472 in12 mm	N/A 28606	20.41
SSY0.8-50A	$24.54	N/A	N/A Finished	N/A 0.8	N/A 50	N/A S1T	N/A 0.236 in6 mm	N/A 1.575 in40 mm	N/A 1.638 in41.6 mm	N/A 0.472 in12 mm	N/A 28607	24.54
SSY0.8-20H	$38.10	N/A	N/A Plain	N/A 0.8	N/A 20	N/A S1	N/A 0.197 in5 mm	N/A 0.630 in16 mm	N/A 0.693 in17.6 mm	N/A 0.472 in12 mm		38.1
SSY0.8-25H	$38.70	N/A	N/A Plain	N/A 0.8	N/A 25	N/A S1	N/A 0.197 in5 mm	N/A 0.787 in20 mm	N/A 0.850 in21.6 mm	N/A 0.472 in12 mm		38.7
SSY0.8-30H	$38.80	N/A	N/A Plain	N/A 0.8	N/A 30	N/A S1	N/A 0.197 in5 mm	N/A 0.945 in24 mm	N/A 1.008 in25.6 mm	N/A 0.472 in12 mm		38.8
SSY0.8-40H	$40.90	N/A	N/A Plain	N/A 0.8	N/A 40	N/A S1	N/A 0.197 in5 mm	N/A 1.260 in32 mm	N/A 1.323 in33.6 mm	N/A 0.472 in12 mm		40.9
SSY0.8-50H	$43.90	N/A	N/A Plain	N/A 0.8	N/A 50	N/A S1	N/A 0.197 in5 mm	N/A 1.575 in40 mm	N/A 1.638 in41.6 mm	N/A 0.472 in12 mm		43.9
SSY1-100	$53.56	N/A	N/A Plain	N/A 1	N/A 100	N/A S1	N/A 0.394 in10 mm	N/A 3.937 in100 mm	N/A 4.016 in102 mm	N/A 0.551 in14 mm	N/A 28608	53.56
SSY1-100A	$9,876.54	N/A	N/A Finished	N/A 1	N/A 100	N/A S1K	N/A 0.472 in12 mm	N/A 3.937 in100 mm	N/A 4.016 in102 mm	N/A 0.551 in14 mm	N/A 28609	9876.54
SSY1-110	$61.48	N/A	N/A Plain	N/A 1	N/A 110	N/A S1	N/A 0.394 in10 mm	N/A 4.331 in110 mm	N/A 4.409 in112 mm	N/A 0.551 in14 mm	N/A 28610	61.48
SSY1-110A	$9,876.54	N/A	N/A Finished	N/A 1	N/A 110	N/A S1K	N/A 0.472 in12 mm	N/A 4.331 in110 mm	N/A 4.409 in112 mm	N/A 0.551 in14 mm	N/A 28611	9876.54
SSY1-12	$13.39	N/A	N/A Plain	N/A 1	N/A 12	N/A S1	N/A 0.197 in5 mm	N/A 0.472 in12 mm	N/A 0.551 in14 mm	N/A 0.551 in14 mm	N/A 28612	13.39
SSY1-120	$69.58	N/A	N/A Plain	N/A 1	N/A 120	N/A S1	N/A 0.394 in10 mm	N/A 4.724 in120 mm	N/A 4.803 in122 mm	N/A 0.551 in14 mm	N/A 28613	69.58
SSY1-120A	$77.04	N/A	N/A Finished	N/A 1	N/A 120	N/A S1K	N/A 0.472 in12 mm	N/A 4.724 in120 mm	N/A 4.803 in122 mm	N/A 0.551 in14 mm	N/A 28614	77.04
SSY1-12A	$16.72	N/A	N/A Finished	N/A 1	N/A 12	N/A S1T	N/A 0.197 in5 mm	N/A 0.472 in12 mm	N/A 0.551 in14 mm	N/A 0.551 in14 mm	N/A 28615	16.72
SSY1-14	$14.05	N/A	N/A Plain	N/A 1	N/A 14	N/A S1	N/A 0.197 in5 mm	N/A 0.551 in14 mm	N/A 0.630 in16 mm	N/A 0.551 in14 mm	N/A 28616	14.05
SSY1-14A	$17.22	N/A	N/A Finished	N/A 1	N/A 14	N/A S1T	N/A 0.197 in5 mm	N/A 0.551 in14 mm	N/A 0.630 in16 mm	N/A 0.551 in14 mm	N/A 28617	17.22
