Spur Gears (SS)
Spur Gears

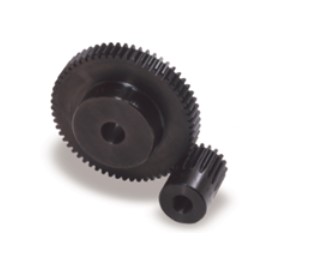

The SS Spur Gears are made from carbon steel and are NOT hardened. However, the SS-H Spur Gears do have the gear teeth hardened. These Spur Gears are economically priced, general usage gears, with a large selection of modules and numbers of teeth. These Spur Gears are easily customizable and J Series configurations of these Spur Gears are also available.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Item # |
Sell Price |
CAD |
Bore Type |
Module |
No. of Teeth |

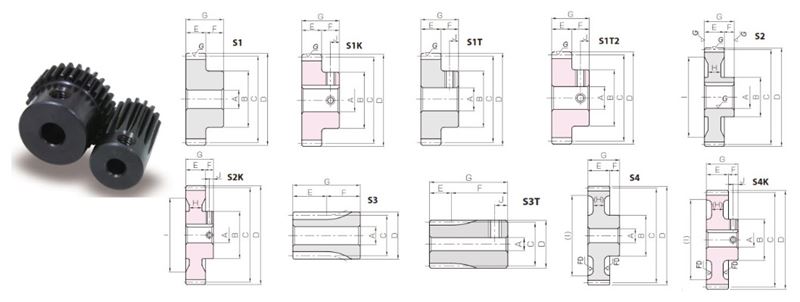

Shape |
Bore Diameter (A) |
Pitch Diameter (C) |
Outer Diameter (D) |
Total Length (G) |
Internal ID |
Sell Price 1 Value |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SS0.5-100A | $9,876.54 |
CAD
N/A
|
Bore Type N/A Plain | Module N/A 0.5 | No. of Teeth N/A 100 | Shape N/A S1T | Bore Diameter (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.969 in50 mm | Outer Diameter (D) N/A 2.008 in51 mm | Total Length (G) N/A 0.472 in12 mm |
Internal ID
N/A
11850 |
9876.54 |
| SS0.5-105A | $9,876.54 |
CAD
N/A
|
Bore Type N/A Plain | Module N/A 0.5 | No. of Teeth N/A 105 | Shape N/A S1T | Bore Diameter (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 2.067 in52.5 mm | Outer Diameter (D) N/A 2.106 in53.5 mm | Total Length (G) N/A 0.472 in12 mm |
Internal ID
N/A
11851 |
9876.54 |
| SS0.5-110A | $9,876.54 |
CAD
N/A
|
Bore Type N/A Plain | Module N/A 0.5 | No. of Teeth N/A 110 | Shape N/A S1T | Bore Diameter (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 2.165 in55 mm | Outer Diameter (D) N/A 2.205 in56 mm | Total Length (G) N/A 0.472 in12 mm |
Internal ID
N/A
11852 |
9876.54 |
| SS0.5-115A | $9,876.54 |
CAD
N/A
|
Bore Type N/A Plain | Module N/A 0.5 | No. of Teeth N/A 115 | Shape N/A S1T | Bore Diameter (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 2.264 in57.5 mm | Outer Diameter (D) N/A 2.303 in58.5 mm | Total Length (G) N/A 0.472 in12 mm |
Internal ID
N/A
11853 |
9876.54 |
| SS0.5-120A | $38.63 |
CAD
N/A
|
Bore Type N/A Plain | Module N/A 0.5 | No. of Teeth N/A 120 | Shape N/A S1T | Bore Diameter (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 2.362 in60 mm | Outer Diameter (D) N/A 2.402 in61 mm | Total Length (G) N/A 0.472 in12 mm |
Internal ID
N/A
11854 |
38.63 |
| SS0.5-28A | $20.97 |
CAD
N/A
|
Bore Type N/A Plain | Module N/A 0.5 | No. of Teeth N/A 28 | Shape N/A S1T | Bore Diameter (A) N/A 0.157 in4 mm | Pitch Diameter (C) N/A 0.551 in14 mm | Outer Diameter (D) N/A 0.591 in15 mm | Total Length (G) N/A 0.472 in12 mm |
Internal ID
N/A
11871 |
20.97 |
| SS0.5-29A | $9,876.54 |
CAD
N/A
|
Bore Type N/A Plain | Module N/A 0.5 | No. of Teeth N/A 29 | Shape N/A S1T | Bore Diameter (A) N/A 0.157 in4 mm | Pitch Diameter (C) N/A 0.571 in14.5 mm | Outer Diameter (D) N/A 0.610 in15.5 mm | Total Length (G) N/A 0.630 in16 mm |
Internal ID
N/A
11872 |
9876.54 |
| SS0.5-30A | $29.16 |
CAD
N/A
|
Bore Type N/A Plain | Module N/A 0.5 | No. of Teeth N/A 30 | Shape N/A S1T | Bore Diameter (A) N/A 0.157 in4 mm | Pitch Diameter (C) N/A 0.591 in15 mm | Outer Diameter (D) N/A 0.630 in16 mm | Total Length (G) N/A 0.472 in12 mm |
Internal ID
N/A
11873 |
29.16 |
| SS0.5-30B | $21.45 | CAD N/A | Bore Type N/A Plain | Module N/A 0.5 | No. of Teeth N/A 30 | Shape N/A S1T | Bore Diameter (A) N/A 0.197 in5 mm | Pitch Diameter (C) N/A 0.591 in15 mm | Outer Diameter (D) N/A 0.630 in16 mm | Total Length (G) N/A 0.472 in12 mm |
Internal ID
N/A
11874 |
21.45 |
| SS0.5-30C | $9,876.54 |
CAD
N/A
|
Bore Type N/A Plain | Module N/A 0.5 | No. of Teeth N/A 30 | Shape N/A S1T | Bore Diameter (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 0.591 in15 mm | Outer Diameter (D) N/A 0.630 in16 mm | Total Length (G) N/A 0.472 in12 mm |
Internal ID
N/A
11875 |
9876.54 |
| SS0.5-32A | $9,876.54 | CAD N/A | Bore Type N/A Plain | Module N/A 0.5 | No. of Teeth N/A 32 | Shape N/A S1T | Bore Diameter (A) N/A 0.197 in5 mm | Pitch Diameter (C) N/A 0.630 in16 mm | Outer Diameter (D) N/A 0.669 in17 mm | Total Length (G) N/A 0.472 in12 mm |
Internal ID
N/A
11876 |
9876.54 |
| SS0.5-34A | $24.26 |
CAD
N/A
|
Bore Type N/A Plain | Module N/A 0.5 | No. of Teeth N/A 34 | Shape N/A S1T | Bore Diameter (A) N/A 0.197 in5 mm | Pitch Diameter (C) N/A 0.669 in17 mm | Outer Diameter (D) N/A 0.709 in18 mm | Total Length (G) N/A 0.472 in12 mm |
Internal ID
N/A
11877 |
24.26 |
| SS0.5-35A | $9,876.54 |
CAD
N/A
|
Bore Type N/A Plain | Module N/A 0.5 | No. of Teeth N/A 35 | Shape N/A S1T | Bore Diameter (A) N/A 0.197 in5 mm | Pitch Diameter (C) N/A 0.689 in17.5 mm | Outer Diameter (D) N/A 0.728 in18.5 mm | Total Length (G) N/A 0.472 in12 mm |
Internal ID
N/A
11878 |
9876.54 |
| SS0.5-36A | $9,876.54 |
CAD
N/A
|
Bore Type N/A Plain | Module N/A 0.5 | No. of Teeth N/A 36 | Shape N/A S1T | Bore Diameter (A) N/A 0.197 in5 mm | Pitch Diameter (C) N/A 0.709 in18 mm | Outer Diameter (D) N/A 0.748 in19 mm | Total Length (G) N/A 0.472 in12 mm |
Internal ID
N/A
11879 |
9876.54 |
| SS0.5-38A | $9,876.54 |
CAD
N/A
|
Bore Type N/A Plain | Module N/A 0.5 | No. of Teeth N/A 38 | Shape N/A S1T | Bore Diameter (A) N/A 0.197 in5 mm | Pitch Diameter (C) N/A 0.748 in19 mm | Outer Diameter (D) N/A 0.787 in20 mm | Total Length (G) N/A 0.472 in12 mm |
Internal ID
N/A
11880 |
9876.54 |
| SS0.5-40A | $9,876.54 | CAD N/A | Bore Type N/A Plain | Module N/A 0.5 | No. of Teeth N/A 40 | Shape N/A S1T | Bore Diameter (A) N/A 0.197 in5 mm | Pitch Diameter (C) N/A 0.787 in20 mm | Outer Diameter (D) N/A 0.827 in21 mm | Total Length (G) N/A 0.472 in12 mm |
Internal ID
N/A
11881 |
9876.54 |
| SS0.5-40B | $9,876.54 |
CAD
N/A
|
Bore Type N/A Plain | Module N/A 0.5 | No. of Teeth N/A 40 | Shape N/A S1T | Bore Diameter (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 0.787 in20 mm | Outer Diameter (D) N/A 0.827 in21 mm | Total Length (G) N/A 0.472 in12 mm |
Internal ID
N/A
11882 |
9876.54 |
| SS0.5-42A | $9,876.54 |
CAD
N/A
|
Bore Type N/A Plain | Module N/A 0.5 | No. of Teeth N/A 42 | Shape N/A S1T | Bore Diameter (A) N/A 0.197 in5 mm | Pitch Diameter (C) N/A 0.827 in21 mm | Outer Diameter (D) N/A 0.866 in22 mm | Total Length (G) N/A 0.472 in12 mm |
Internal ID
N/A
11883 |
9876.54 |
| SS0.5-44A | $9,876.54 | CAD N/A | Bore Type N/A Plain | Module N/A 0.5 | No. of Teeth N/A 44 | Shape N/A S1T | Bore Diameter (A) N/A 0.197 in5 mm | Pitch Diameter (C) N/A 0.866 in22 mm | Outer Diameter (D) N/A 0.906 in23 mm | Total Length (G) N/A 0.472 in12 mm |
Internal ID
N/A
11884 |
9876.54 |
| SS0.5-45A | $9,876.54 | CAD N/A | Bore Type N/A Plain | Module N/A 0.5 | No. of Teeth N/A 45 | Shape N/A S1T | Bore Diameter (A) N/A 0.197 in5 mm | Pitch Diameter (C) N/A 0.886 in22.5 mm | Outer Diameter (D) N/A 0.925 in23.5 mm | Total Length (G) N/A 0.472 in12 mm |
Internal ID
N/A
11885 |
9876.54 |
| SS0.5-46A | $9,876.54 |
CAD
N/A
|
Bore Type N/A Plain | Module N/A 0.5 | No. of Teeth N/A 46 | Shape N/A S1T | Bore Diameter (A) N/A 0.197 in5 mm | Pitch Diameter (C) N/A 0.906 in23 mm | Outer Diameter (D) N/A 0.945 in24 mm | Total Length (G) N/A 0.472 in12 mm |
Internal ID
N/A
11886 |
9876.54 |
| SS0.5-48A | $9,876.54 |
CAD
N/A
|
Bore Type N/A Plain | Module N/A 0.5 | No. of Teeth N/A 48 | Shape N/A S1T | Bore Diameter (A) N/A 0.197 in5 mm | Pitch Diameter (C) N/A 0.945 in24 mm | Outer Diameter (D) N/A 0.984 in25 mm | Total Length (G) N/A 0.472 in12 mm |
Internal ID
N/A
11887 |
9876.54 |
| SS0.5-50A | $71.68 |
CAD
N/A
|
Bore Type N/A Plain | Module N/A 0.5 | No. of Teeth N/A 50 | Shape N/A S1T | Bore Diameter (A) N/A 0.197 in5 mm | Pitch Diameter (C) N/A 0.984 in25 mm | Outer Diameter (D) N/A 1.024 in26 mm | Total Length (G) N/A 0.472 in12 mm |
Internal ID
N/A
11888 |
71.68 |
| SS0.5-50B | $21.98 |
CAD
N/A
|
Bore Type N/A Plain | Module N/A 0.5 | No. of Teeth N/A 50 | Shape N/A S1T | Bore Diameter (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 0.984 in25 mm | Outer Diameter (D) N/A 1.024 in26 mm | Total Length (G) N/A 0.472 in12 mm |
Internal ID
N/A
11889 |
21.98 |
| SS0.5-52A | $9,876.54 | CAD N/A | Bore Type N/A Plain | Module N/A 0.5 | No. of Teeth N/A 52 | Shape N/A S1T | Bore Diameter (A) N/A 0.197 in5 mm | Pitch Diameter (C) N/A 1.024 in26 mm | Outer Diameter (D) N/A 1.063 in27 mm | Total Length (G) N/A 0.472 in12 mm |
Internal ID
N/A
11890 |
9876.54 |
