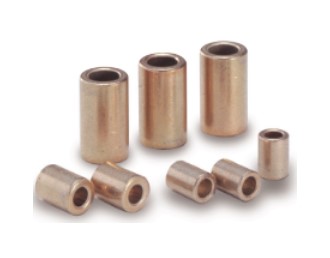

Sintered Metal Bushings (BB)
Spur Gears

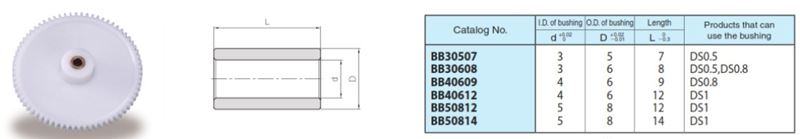

A Series of standard metal bushings that can be pressed into standard injection molded gears.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Item # |
Sell Price |
CAD |
Type |
Shape |
Total Length (L) |
ID Of Bushing (d) |
OD Of Bushing (D) |
Use Bushing |
Internal ID |
Sell Price 1 Value |
|---|---|---|---|---|---|---|---|---|---|---|
| BB30507 | $3.22 |
CAD
N/A
|
Type N/A Miter Gears | Shape N/A T8 | Total Length (L) N/A 0.276 in7 mm | ID Of Bushing (d) N/A 0.118 in3 mm | OD Of Bushing (D) N/A 0.197 in5 mm | Use Bushing N/A DS0.5 |
Internal ID
N/A
1423 |
3.22 |
| BB30608 | $3.22 |
CAD
N/A
|
Type N/A Miter Gears | Shape N/A T8 | Total Length (L) N/A 0.315 in8 mm | ID Of Bushing (d) N/A 0.118 in3 mm | OD Of Bushing (D) N/A 0.236 in6 mm | Use Bushing N/A DS0.5, DS0.8 |
Internal ID
N/A
1424 |
3.22 |
| BB40609 | $3.22 |
CAD
N/A
|
Type N/A Miter Gears | Shape N/A T8 | Total Length (L) N/A 0.354 in9 mm | ID Of Bushing (d) N/A 0.157 in4 mm | OD Of Bushing (D) N/A 0.236 in6 mm | Use Bushing N/A DS0.8 |
Internal ID
N/A
1425 |
3.22 |
| BB40612 | $3.37 |
CAD
N/A
|
Type N/A Bevel Gears | Shape N/A T8 | Total Length (L) N/A 0.472 in12 mm | ID Of Bushing (d) N/A 0.157 in4 mm | OD Of Bushing (D) N/A 0.236 in6 mm | Use Bushing N/A DS1 |
Internal ID
N/A
1426 |
3.37 |
| BB50812 | $3.53 |
CAD
N/A
|
Type N/A Miter Gears | Shape N/A T8 | Total Length (L) N/A 0.472 in12 mm | ID Of Bushing (d) N/A 0.197 in5 mm | OD Of Bushing (D) N/A 0.315 in8 mm | Use Bushing N/A DS1 |
Internal ID
N/A
1427 |
3.53 |
| BB50814 | $3.69 | CAD N/A | Type N/A Miter Gears | Shape N/A T8 | Total Length (L) N/A 0.551 in14 mm | ID Of Bushing (d) N/A 0.197 in5 mm | OD Of Bushing (D) N/A 0.315 in8 mm | Use Bushing N/A DS1 |
Internal ID
N/A
1428 |
3.69 |
