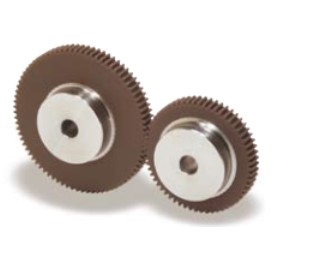

Plastic Spur Gears w/ Steel Core (NSU) On KHK Gears

Nylon teeth with steel hubs that can have keyways and set screws added.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.

1 - 25 of 880 | Results Per Page | View | Unit of Measure

1 2 3 4 5 »

Request Information Compare Items Search by Specification

Clear Filter

Bore Type

Module

No. of Teeth

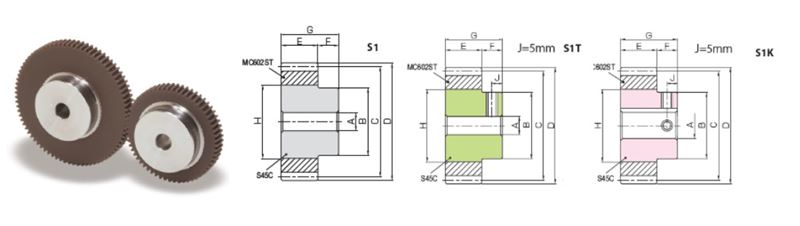

Shape

Bore Diameter (A) (in)

Bore Diameter (A) (mm)

Pitch Diameter (C) (in)

Pitch Diameter (C) (mm)

Outer Diameter (D) (in)

Outer Diameter (D) (mm)

Total Length (G) (in)

Total Length (G) (mm)

Item #	Sell Price	CAD	Bore Type	Module	No. of Teeth	Shape	Bore Diameter (A)	Pitch Diameter (C)	Outer Diameter (D)	Total Length (G)	Internal ID	Sell Price 1 Value

NSU1-100	$312.68	N/A	N/A Plain	N/A 1	N/A 100	N/A S1	N/A 0.394 in10 mm	N/A 3.937 in100 mm	N/A 4.016 in102 mm	N/A 0.787 in20 mm	N/A 6591	312.68
NSU1-100J10	$342.30	N/A	N/A Finished	N/A 1	N/A 100	N/A S1K	N/A 0.394 in10 mm	N/A 3.937 in100 mm	N/A 4.016 in102 mm	N/A 0.787 in20 mm	N/A 6592	342.3
NSU1-100J12	$349.30	N/A	N/A Finished	N/A 1	N/A 100	N/A S1K	N/A 0.472 in12 mm	N/A 3.937 in100 mm	N/A 4.016 in102 mm	N/A 0.787 in20 mm	N/A 6593	349.3
NSU1-100J14	$349.30	N/A	N/A Finished	N/A 1	N/A 100	N/A S1K	N/A 0.551 in14 mm	N/A 3.937 in100 mm	N/A 4.016 in102 mm	N/A 0.787 in20 mm	N/A 6594	349.3
NSU1-100J15	$349.30	N/A	N/A Finished	N/A 1	N/A 100	N/A S1K	N/A 0.591 in15 mm	N/A 3.937 in100 mm	N/A 4.016 in102 mm	N/A 0.787 in20 mm	N/A 6595	349.3
NSU1-100J16	$349.30	N/A	N/A Finished	N/A 1	N/A 100	N/A S1K	N/A 0.630 in16 mm	N/A 3.937 in100 mm	N/A 4.016 in102 mm	N/A 0.787 in20 mm	N/A 6596	349.3
NSU1-100J17	$349.30	N/A	N/A Finished	N/A 1	N/A 100	N/A S1K	N/A 0.669 in17 mm	N/A 3.937 in100 mm	N/A 4.016 in102 mm	N/A 0.787 in20 mm	N/A 6597	349.3
NSU1-100J18	$349.30	N/A	N/A Finished	N/A 1	N/A 100	N/A S1K	N/A 0.709 in18 mm	N/A 3.937 in100 mm	N/A 4.016 in102 mm	N/A 0.787 in20 mm	N/A 6598	349.3
NSU1-100J19	$349.30	N/A	N/A Finished	N/A 1	N/A 100	N/A S1K	N/A 0.748 in19 mm	N/A 3.937 in100 mm	N/A 4.016 in102 mm	N/A 0.787 in20 mm	N/A 6599	349.3
NSU1-100J20	$349.30	N/A	N/A Finished	N/A 1	N/A 100	N/A S1K	N/A 0.787 in20 mm	N/A 3.937 in100 mm	N/A 4.016 in102 mm	N/A 0.787 in20 mm	N/A 6600	349.3
NSU1-100J22	$349.30	N/A	N/A Finished	N/A 1	N/A 100	N/A S1K	N/A 0.866 in22 mm	N/A 3.937 in100 mm	N/A 4.016 in102 mm	N/A 0.787 in20 mm	N/A 6601	349.3
NSU1-30	$155.98	N/A	N/A Plain	N/A 1	N/A 30	N/A S1	N/A 0.315 in8 mm	N/A 1.181 in30 mm	N/A 1.260 in32 mm	N/A 0.787 in20 mm	N/A 6602	155.98
NSU1-30J8	$173.30	N/A	N/A Finished	N/A 1	N/A 30	N/A S1T	N/A 0.315 in8 mm	N/A 1.181 in30 mm	N/A 1.260 in32 mm	N/A 0.787 in20 mm	N/A 6603	173.3
NSU1-32	$9,876.54	N/A	N/A Plain	N/A 1	N/A 32	N/A S1	N/A 0.315 in8 mm	N/A 1.260 in32 mm	N/A 1.339 in34 mm	N/A 0.787 in20 mm	N/A 6604	9876.54
NSU1-32J10	$9,876.54	N/A	N/A Finished	N/A 1	N/A 32	N/A S1K	N/A 0.394 in10 mm	N/A 1.260 in32 mm	N/A 1.339 in34 mm	N/A 0.787 in20 mm	N/A 6605	9876.54
NSU1-32J8	$9,876.54	N/A	N/A Finished	N/A 1	N/A 32	N/A S1T	N/A 0.315 in8 mm	N/A 1.260 in32 mm	N/A 1.339 in34 mm	N/A 0.787 in20 mm	N/A 6606	9876.54
NSU1-34	$9,876.54	N/A	N/A Plain	N/A 1	N/A 34	N/A S1	N/A 0.315 in8 mm	N/A 1.339 in34 mm	N/A 1.417 in36 mm	N/A 0.787 in20 mm	N/A 6607	9876.54
NSU1-34J10	$9,876.54	N/A	N/A Finished	N/A 1	N/A 34	N/A S1K	N/A 0.394 in10 mm	N/A 1.339 in34 mm	N/A 1.417 in36 mm	N/A 0.787 in20 mm	N/A 6608	9876.54
NSU1-34J12	$9,876.54	N/A	N/A Finished	N/A 1	N/A 34	N/A S1K	N/A 0.472 in12 mm	N/A 1.339 in34 mm	N/A 1.417 in36 mm	N/A 0.787 in20 mm	N/A 6609	9876.54
NSU1-34J8	$9,876.54	N/A	N/A Finished	N/A 1	N/A 34	N/A S1T	N/A 0.315 in8 mm	N/A 1.339 in34 mm	N/A 1.417 in36 mm	N/A 0.787 in20 mm	N/A 6610	9876.54
NSU1-35	$172.40	N/A	N/A Plain	N/A 1	N/A 35	N/A S1	N/A 0.315 in8 mm	N/A 1.378 in35 mm	N/A 1.457 in37 mm	N/A 0.787 in20 mm	N/A 6611	172.4
NSU1-35J10	$213.80	N/A	N/A Finished	N/A 1	N/A 35	N/A S1K	N/A 0.394 in10 mm	N/A 1.378 in35 mm	N/A 1.457 in37 mm	N/A 0.787 in20 mm	N/A 6612	213.8
NSU1-35J12	$213.80	N/A	N/A Finished	N/A 1	N/A 35	N/A S1K	N/A 0.472 in12 mm	N/A 1.378 in35 mm	N/A 1.457 in37 mm	N/A 0.787 in20 mm	N/A 6613	213.8
NSU1-35J8	$189.30	N/A	N/A Finished	N/A 1	N/A 35	N/A S1T	N/A 0.315 in8 mm	N/A 1.378 in35 mm	N/A 1.457 in37 mm	N/A 0.787 in20 mm	N/A 6614	189.3
NSU1-36	$175.31	N/A	N/A Plain	N/A 1	N/A 36	N/A S1	N/A 0.315 in8 mm	N/A 1.417 in36 mm	N/A 1.496 in38 mm	N/A 0.787 in20 mm	N/A 6615	175.31

1 - 25 of 880 | Results Per Page | View | Unit of Measure

1 2 3 4 5 »
