Ground Spur Gears (SSG-R)
Spur Gears

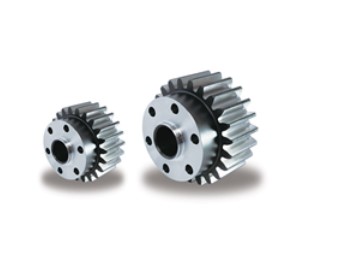

The SSG-R Ground Spur Gears are made from carbon steel, are induction hardened and the teeth are ground finished. These pinions are designed to mate with Nabtesco Gearheads.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Item # |
Sell Price |
CAD |
Module |
No. of Teeth |
Shape |

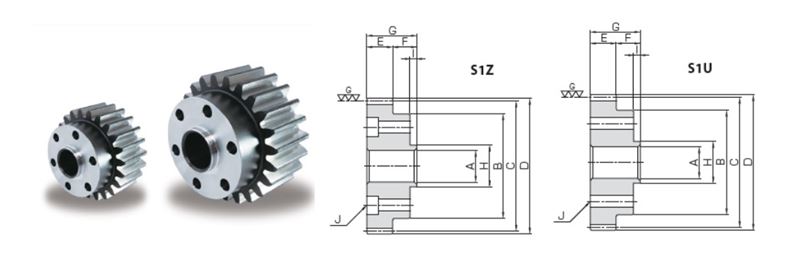

Bore Diameter (A) |
Pitch Diameter (C) |
Outer Diameter (D) |
Total Length (G) |
Internal ID |
Sell Price 1 Value |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SSG1.5-50R24 | $199.80 |
CAD
N/A
|
Module N/A 1.5 | No. of Teeth N/A 50 | Shape N/A S1Z | Bore Diameter (A) N/A 0.709 in18 mm | Pitch Diameter (C) N/A 2.953 in75 mm | Outer Diameter (D) N/A 3.071 in78 mm | Total Length (G) N/A 1.142 in29 mm |
Internal ID
N/A
24639 |
199.8 |
| SSG2-40R24 | $209.90 |
CAD
N/A
|
Module N/A 2 | No. of Teeth N/A 40 | Shape N/A S1Z | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.150 in80 mm | Outer Diameter (D) N/A 3.307 in84 mm | Total Length (G) N/A 1.417 in36 mm |
Internal ID
N/A
25234 |
209.9 |
| SSG2.5-27R24 | $208.10 |
CAD
N/A
|
Module N/A 2.5 | No. of Teeth N/A 27 | Shape N/A S1U | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 2.657 in67.5 mm | Outer Diameter (D) N/A 2.854 in72.5 mm | Total Length (G) N/A 1.693 in43 mm |
Internal ID
N/A
25633 |
208.1 |
| SSG2.5-28R24 | $213.30 |
CAD
N/A
|
Module N/A 2.5 | No. of Teeth N/A 28 | Shape N/A S1Z | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 2.756 in70 mm | Outer Diameter (D) N/A 2.953 in75 mm | Total Length (G) N/A 1.693 in43 mm |
Internal ID
N/A
25651 |
213.3 |
| SSG2.5-29R24 | $9,876.54 | CAD N/A | Module N/A 2.5 | No. of Teeth N/A 29 | Shape N/A S1Z | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 2.854 in72.5 mm | Outer Diameter (D) N/A 3.051 in77.5 mm | Total Length (G) N/A 1.693 in43 mm |
Internal ID
N/A
25669 |
9876.54 |
| SSG2.5-30R24 | $224.60 |
CAD
N/A
|
Module N/A 2.5 | No. of Teeth N/A 30 | Shape N/A S1Z | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 2.953 in75 mm | Outer Diameter (D) N/A 3.150 in80 mm | Total Length (G) N/A 1.693 in43 mm |
Internal ID
N/A
25692 |
224.6 |
| SSG2.5-42R32 | $287.00 |
CAD
N/A
|
Module N/A 2.5 | No. of Teeth N/A 42 | Shape N/A S1Z | Bore Diameter (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 4.134 in105 mm | Outer Diameter (D) N/A 4.331 in110 mm | Total Length (G) N/A 1.693 in43 mm |
Internal ID
N/A
25893 |
287 |
| SSG3-23R24 | $9,876.54 | CAD N/A | Module N/A 3 | No. of Teeth N/A 23 | Shape N/A S1U | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 2.717 in69 mm | Outer Diameter (D) N/A 2.953 in75 mm | Total Length (G) N/A 1.969 in50 mm |
Internal ID
N/A
26273 |
9876.54 |
| SSG3-24R24 | $233.10 |
CAD
N/A
|
Module N/A 3 | No. of Teeth N/A 24 | Shape N/A S1Z | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 2.835 in72 mm | Outer Diameter (D) N/A 3.071 in78 mm | Total Length (G) N/A 1.969 in50 mm |
Internal ID
N/A
26289 |
233.1 |
| SSG3-25R24 | $239.10 |
CAD
N/A
|
Module N/A 3 | No. of Teeth N/A 25 | Shape N/A S1Z | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 2.953 in75 mm | Outer Diameter (D) N/A 3.189 in81 mm | Total Length (G) N/A 1.969 in50 mm |
Internal ID
N/A
26311 |
239.1 |
| SSG3-26R24 | $249.00 |
CAD
N/A
|
Module N/A 3 | No. of Teeth N/A 26 | Shape N/A S1Z | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.071 in78 mm | Outer Diameter (D) N/A 3.307 in84 mm | Total Length (G) N/A 1.969 in50 mm |
Internal ID
N/A
26337 |
249 |
| SSG3-30R32 | $272.30 |
CAD
N/A
|
Module N/A 3 | No. of Teeth N/A 30 | Shape N/A S1Z | Bore Diameter (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 3.543 in90 mm | Outer Diameter (D) N/A 3.780 in96 mm | Total Length (G) N/A 1.969 in50 mm |
Internal ID
N/A
26456 |
272.3 |
| SSG3-32R32 | $290.20 |
CAD
N/A
|
Module N/A 3 | No. of Teeth N/A 32 | Shape N/A S1Z | Bore Diameter (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 3.780 in96 mm | Outer Diameter (D) N/A 4.016 in102 mm | Total Length (G) N/A 1.969 in50 mm |
Internal ID
N/A
26485 |
290.2 |
| SSG3-34R32 | $309.60 |
CAD
N/A
|
Module N/A 3 | No. of Teeth N/A 34 | Shape N/A S1Z | Bore Diameter (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 4.016 in102 mm | Outer Diameter (D) N/A 4.252 in108 mm | Total Length (G) N/A 1.969 in50 mm |
Internal ID
N/A
26514 |
309.6 |
| SSG3-35R32 | $312.30 |
CAD
N/A
|
Module N/A 3 | No. of Teeth N/A 35 | Shape N/A S1Z | Bore Diameter (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 4.134 in105 mm | Outer Diameter (D) N/A 4.370 in111 mm | Total Length (G) N/A 1.969 in50 mm |
Internal ID
N/A
26543 |
312.3 |
| SSG3-36R32 | $317.40 |
CAD
N/A
|
Module N/A 3 | No. of Teeth N/A 36 | Shape N/A S1Z | Bore Diameter (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 4.252 in108 mm | Outer Diameter (D) N/A 4.488 in114 mm | Total Length (G) N/A 1.969 in50 mm |
Internal ID
N/A
26572 |
317.4 |
| SSG3-30RGH7 | $326.60 | CAD N/A | Module N/A 3 | No. of Teeth N/A 30 | Shape N/A S1GH7 | Bore Diameter (A) N/A 0.276 in7 mm | Pitch Diameter (C) N/A 3.543 in90 mm | Outer Diameter (D) N/A 3.780 in96 mm | Total Length (G) N/A 1.969 in50 mm |
Internal ID
N/A
26457 |
326.6 |
| SSG3-40RGH17 | $399.40 | CAD N/A | Module N/A 3 | No. of Teeth N/A 40 | Shape N/A S1GH17 | Bore Diameter (A) N/A 0.669 in17 mm | Pitch Diameter (C) N/A 4.724 in120 mm | Outer Diameter (D) N/A 4.961 in126 mm | Total Length (G) N/A 1.969 in50 mm |
Internal ID
N/A
26632 |
399.4 |
| SSG4-24R32 | $341.70 |
CAD
N/A
|
Module N/A 4 | No. of Teeth N/A 24 | Shape N/A S1Z | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.780 in96 mm | Outer Diameter (D) N/A 4.094 in104 mm | Total Length (G) N/A 2.559 in65 mm |
Internal ID
N/A
27067 |
341.7 |
| SSG4-25R32 | $358.90 |
CAD
N/A
|
Module N/A 4 | No. of Teeth N/A 25 | Shape N/A S1Z | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.937 in100 mm | Outer Diameter (D) N/A 4.252 in108 mm | Total Length (G) N/A 2.559 in65 mm |
Internal ID
N/A
27092 |
358.9 |
| SSG4-30RGH24 | $450.80 | CAD N/A | Module N/A 4 | No. of Teeth N/A 30 | Shape N/A S1GH24 | Bore Diameter (A) N/A 0.945 in24 mm | Pitch Diameter (C) N/A 4.724 in120 mm | Outer Diameter (D) N/A 5.039 in128 mm | Total Length (G) N/A 2.559 in65 mm |
Internal ID
N/A
27146 |
450.8 |
| SSG5-20R32 | $533.10 |
CAD
N/A
|
Module N/A 5 | No. of Teeth N/A 20 | Shape N/A S1Z | Bore Diameter (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 3.937 in100 mm | Outer Diameter (D) N/A 4.331 in110 mm | Total Length (G) N/A 2.953 in75 mm |
Internal ID
N/A
27530 |
533.1 |
| SSG5-30R47 | $745.90 |
CAD
N/A
|
Module N/A 5 | No. of Teeth N/A 30 | Shape N/A S1Z | Bore Diameter (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 5.906 in150 mm | Outer Diameter (D) N/A 6.299 in160 mm | Total Length (G) N/A 2.953 in75 mm |
Internal ID
N/A
27581 |
745.9 |
| SSG5-30RGH40 | $693.20 | CAD N/A | Module N/A 5 | No. of Teeth N/A 30 | Shape N/A S1GH40 | Bore Diameter (A) N/A 1.575 in40 mm | Pitch Diameter (C) N/A 5.906 in150 mm | Outer Diameter (D) N/A 6.299 in160 mm | Total Length (G) N/A 2.953 in75 mm |
Internal ID
N/A
27582 |
693.2 |
| SSG6-25R47 | $845.50 |
CAD
N/A
|
Module N/A 6 | No. of Teeth N/A 25 | Shape N/A S1Z | Bore Diameter (A) N/A 1.181 in30 mm | Pitch Diameter (C) N/A 5.906 in150 mm | Outer Diameter (D) N/A 6.378 in162 mm | Total Length (G) N/A 3.465 in88 mm |
Internal ID
N/A
27925 |
845.5 |
