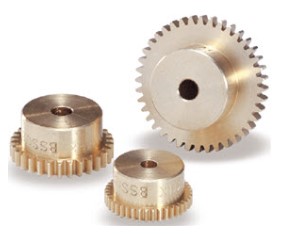

Brass Spur Gears (BSS) On KHK Gears

Small module brass spur gears suitable for mating with DS gears.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.

1 - 25 of 121 | Results Per Page | View | Unit of Measure

1 2 3 4 5

Request Information Compare Items Search by Specification

Clear Filter

Bore Type

Module

No. of Teeth

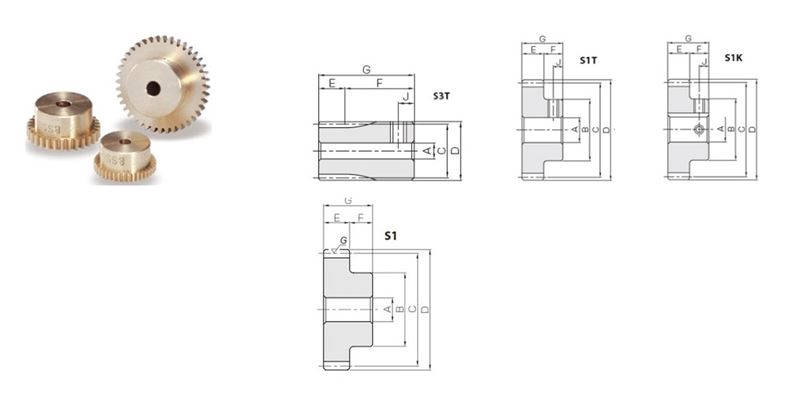

Shape

Bore Diameter (A) (in)

Bore Diameter (A) (mm)

Pitch Diameter (C) (in)

Pitch Diameter (C) (mm)

Outer Diameter (D) (in)

Outer Diameter (D) (mm)

Total Length (G) (in)

Total Length (G) (mm)

Item #	Sell Price	CAD	Bore Type	Module	No. of Teeth	Shape	Bore Diameter (A)	Pitch Diameter (C)	Outer Diameter (D)	Total Length (G)	Internal ID	Sell Price 1 Value

BSS0.5-15A	$14.12	N/A	N/A Finished	N/A 0.5	N/A 15	N/A S3T	N/A 0.118 in3 mm	N/A 0.295 in7.5 mm	N/A 0.335 in8.5 mm	N/A 0.551 in14 mm	N/A 1633	14.12
BSS0.5-16A	$14.13	N/A	N/A Finished	N/A 0.5	N/A 16	N/A S3T	N/A 0.118 in3 mm	N/A 0.315 in8 mm	N/A 0.354 in9 mm	N/A 0.551 in14 mm	N/A 1634	14.13
BSS0.5-17A	$53.04	N/A	N/A Finished	N/A 0.5	N/A 17	N/A S3T	N/A 0.118 in3 mm	N/A 0.335 in8.5 mm	N/A 0.374 in9.5 mm	N/A 0.551 in14 mm	N/A 1635	53.04
BSS0.5-18A	$9,876.54	N/A	N/A Finished	N/A 0.5	N/A 18	N/A S3T	N/A 0.118 in3 mm	N/A 0.354 in9 mm	N/A 0.394 in10 mm	N/A 0.551 in14 mm	N/A 1636	9876.54
BSS0.5-19A	$9,876.54	N/A	N/A Finished	N/A 0.5	N/A 19	N/A S3T	N/A 0.118 in3 mm	N/A 0.374 in9.5 mm	N/A 0.413 in10.5 mm	N/A 0.551 in14 mm	N/A 1637	9876.54
BSS0.5-20	$14.95	N/A	N/A Plain	N/A 0.5	N/A 20	N/A S1	N/A 0.157 in4 mm	N/A 0.394 in10 mm	N/A 0.433 in11 mm	N/A 0.394 in10 mm	N/A 1638	14.95
BSS0.5-20A	$16.39	N/A	N/A Finished	N/A 0.5	N/A 20	N/A S3T	N/A 0.118 in3 mm	N/A 0.394 in10 mm	N/A 0.433 in11 mm	N/A 0.551 in14 mm	N/A 1639	16.39
BSS0.5-20B	$9,876.54	N/A	N/A Finished	N/A 0.5	N/A 20	N/A S3T	N/A 0.157 in4 mm	N/A 0.394 in10 mm	N/A 0.433 in11 mm	N/A 0.551 in14 mm	N/A 1640	9876.54
BSS0.5-21A	$9,876.54	N/A	N/A Finished	N/A 0.5	N/A 21	N/A S3T	N/A 0.118 in3 mm	N/A 0.413 in10.5 mm	N/A 0.453 in11.5 mm	N/A 0.551 in14 mm	N/A 1641	9876.54
BSS0.5-22A	$17.20	N/A	N/A Finished	N/A 0.5	N/A 22	N/A S1T	N/A 0.118 in3 mm	N/A 0.433 in11 mm	N/A 0.472 in12 mm	N/A 0.394 in10 mm	N/A 1642	17.2
BSS0.5-23A	$9,876.54	N/A	N/A Finished	N/A 0.5	N/A 23	N/A S1T	N/A 0.118 in3 mm	N/A 0.453 in11.5 mm	N/A 0.492 in12.5 mm	N/A 0.394 in10 mm	N/A 1643	9876.54
BSS0.5-24A	$9,876.54	N/A	N/A Finished	N/A 0.5	N/A 24	N/A S1T	N/A 0.118 in3 mm	N/A 0.472 in12 mm	N/A 0.512 in13 mm	N/A 0.394 in10 mm	N/A 1644	9876.54
BSS0.5-24B	$18.00	N/A	N/A Finished	N/A 0.5	N/A 24	N/A S1T	N/A 0.157 in4 mm	N/A 0.472 in12 mm	N/A 0.512 in13 mm	N/A 0.394 in10 mm	N/A 1645	18
BSS0.5-25	$18.60	N/A	N/A Plain	N/A 0.5	N/A 25	N/A S1	N/A 0.157 in4 mm	N/A 0.492 in12.5 mm	N/A 0.531 in13.5 mm	N/A 0.394 in10 mm	N/A 1646	18.6
BSS0.5-25A	$9,876.54	N/A	N/A Finished	N/A 0.5	N/A 25	N/A S1T	N/A 0.118 in3 mm	N/A 0.492 in12.5 mm	N/A 0.531 in13.5 mm	N/A 0.394 in10 mm	N/A 1647	9876.54
BSS0.5-25B	$9,876.54	N/A	N/A Finished	N/A 0.5	N/A 25	N/A S1T	N/A 0.157 in4 mm	N/A 0.492 in12.5 mm	N/A 0.531 in13.5 mm	N/A 0.394 in10 mm	N/A 1648	9876.54
BSS0.5-26A	$9,876.54	N/A	N/A Finished	N/A 0.5	N/A 26	N/A S1T	N/A 0.118 in3 mm	N/A 0.512 in13 mm	N/A 0.551 in14 mm	N/A 0.394 in10 mm	N/A 1649	9876.54
BSS0.5-27A	$9,876.54	N/A	N/A Finished	N/A 0.5	N/A 27	N/A S1T	N/A 0.118 in3 mm	N/A 0.531 in13.5 mm	N/A 0.571 in14.5 mm	N/A 0.394 in10 mm	N/A 1650	9876.54
BSS0.5-28A	$9,876.54	N/A	N/A Finished	N/A 0.5	N/A 28	N/A S1T	N/A 0.118 in3 mm	N/A 0.551 in14 mm	N/A 0.591 in15 mm	N/A 0.394 in10 mm	N/A 1651	9876.54
BSS0.5-29A	$9,876.54	N/A	N/A Finished	N/A 0.5	N/A 29	N/A S1T	N/A 0.118 in3 mm	N/A 0.571 in14.5 mm	N/A 0.610 in15.5 mm	N/A 0.394 in10 mm	N/A 1652	9876.54
BSS0.5-30	$19.29	N/A	N/A Plain	N/A 0.5	N/A 30	N/A S1	N/A 0.157 in4 mm	N/A 0.591 in15 mm	N/A 0.630 in16 mm	N/A 0.394 in10 mm	N/A 1653	19.29
BSS0.5-30A	$19.97	N/A	N/A Finished	N/A 0.5	N/A 30	N/A S1T	N/A 0.118 in3 mm	N/A 0.591 in15 mm	N/A 0.630 in16 mm	N/A 0.394 in10 mm	N/A 1654	19.97
BSS0.5-30B	$19.96	N/A	N/A Finished	N/A 0.5	N/A 30	N/A S1T	N/A 0.157 in4 mm	N/A 0.591 in15 mm	N/A 0.630 in16 mm	N/A 0.394 in10 mm	N/A 1655	19.96
BSS0.5-30C	$19.96	N/A	N/A Finished	N/A 0.5	N/A 30	N/A S1T	N/A 0.197 in5 mm	N/A 0.591 in15 mm	N/A 0.630 in16 mm	N/A 0.394 in10 mm	N/A 1656	19.96
BSS0.5-32A	$26.39	N/A	N/A Finished	N/A 0.5	N/A 32	N/A S1T	N/A 0.157 in4 mm	N/A 0.630 in16 mm	N/A 0.669 in17 mm	N/A 0.394 in10 mm	N/A 1657	26.39
