Acetal F-Loc Hub Spur Gears (DSF)
Spur Gears

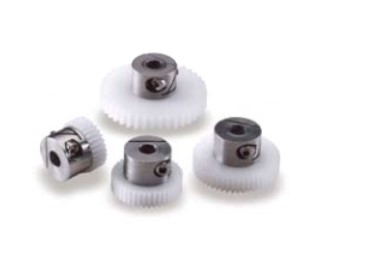

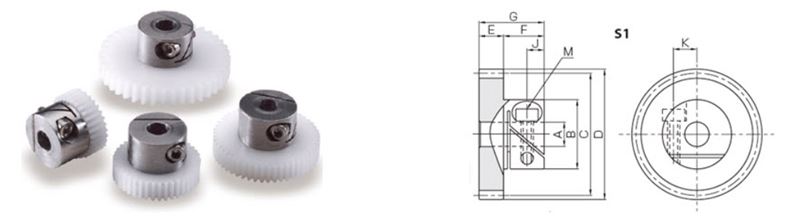

These fine pitch, acetal spur gears have an integral stainless steel hub locking mechanism which enables the gear to be fastened to the shaft without any keys or set screws.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
1 2
Clear
Filter
Module
No. of Teeth
Shape
Bore Diameter (A) (in)
Bore Diameter (A) (mm)
Pitch Diameter (C) (in)
Pitch Diameter (C) (mm)
Outer Diameter (D) (in)
Outer Diameter (D) (mm)
Total Length (G) (in)
Total Length (G) (mm)
Item # |
Sell Price |
CAD |
Module |
No. of Teeth |
Shape |
Bore Diameter (A) |
Pitch Diameter (C) |
Outer Diameter (D) |
Total Length (G) |
Internal ID |
Sell Price 1 Value |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DSF0.5-100 | $9,876.54 | CAD N/A | Module N/A 0.5 | No. of Teeth N/A 100 | Shape N/A S1 | Bore Diameter (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.969 in50 mm | Outer Diameter (D) N/A 2.008 in51 mm | Total Length (G) N/A 0.591 in15 mm |
Internal ID
N/A
2649 |
9876.54 |
| DSF0.5-120 | $78.31 | CAD N/A | Module N/A 0.5 | No. of Teeth N/A 120 | Shape N/A S1 | Bore Diameter (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 2.362 in60 mm | Outer Diameter (D) N/A 2.402 in61 mm | Total Length (G) N/A 0.591 in15 mm |
Internal ID
N/A
2650 |
78.31 |
| DSF0.5-36 | $66.63 | CAD N/A | Module N/A 0.5 | No. of Teeth N/A 36 | Shape N/A S1 | Bore Diameter (A) N/A 0.197 in5 mm | Pitch Diameter (C) N/A 0.709 in18 mm | Outer Diameter (D) N/A 0.748 in19 mm | Total Length (G) N/A 0.531 in13.5 mm |
Internal ID
N/A
2651 |
66.63 |
| DSF0.5-40 | $67.12 | CAD N/A | Module N/A 0.5 | No. of Teeth N/A 40 | Shape N/A S1 | Bore Diameter (A) N/A 0.197 in5 mm | Pitch Diameter (C) N/A 0.787 in20 mm | Outer Diameter (D) N/A 0.827 in21 mm | Total Length (G) N/A 0.531 in13.5 mm |
Internal ID
N/A
2652 |
67.12 |
| DSF0.5-45 | $9,876.54 | CAD N/A | Module N/A 0.5 | No. of Teeth N/A 45 | Shape N/A S1 | Bore Diameter (A) N/A 0.197 in5 mm | Pitch Diameter (C) N/A 0.886 in22.5 mm | Outer Diameter (D) N/A 0.925 in23.5 mm | Total Length (G) N/A 0.531 in13.5 mm |
Internal ID
N/A
2653 |
9876.54 |
| DSF0.5-48 | $9,876.54 | CAD N/A | Module N/A 0.5 | No. of Teeth N/A 48 | Shape N/A S1 | Bore Diameter (A) N/A 0.197 in5 mm | Pitch Diameter (C) N/A 0.945 in24 mm | Outer Diameter (D) N/A 0.984 in25 mm | Total Length (G) N/A 0.531 in13.5 mm |
Internal ID
N/A
2654 |
9876.54 |
| DSF0.5-50 | $67.86 | CAD N/A | Module N/A 0.5 | No. of Teeth N/A 50 | Shape N/A S1 | Bore Diameter (A) N/A 0.197 in5 mm | Pitch Diameter (C) N/A 0.984 in25 mm | Outer Diameter (D) N/A 1.024 in26 mm | Total Length (G) N/A 0.531 in13.5 mm |
Internal ID
N/A
2655 |
67.86 |
| DSF0.5-60 | $68.49 | CAD N/A | Module N/A 0.5 | No. of Teeth N/A 60 | Shape N/A S1 | Bore Diameter (A) N/A 0.197 in5 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.220 in31 mm | Total Length (G) N/A 0.531 in13.5 mm |
Internal ID
N/A
2656 |
68.49 |
| DSF0.5-64 | $9,876.54 | CAD N/A | Module N/A 0.5 | No. of Teeth N/A 64 | Shape N/A S1 | Bore Diameter (A) N/A 0.197 in5 mm | Pitch Diameter (C) N/A 1.260 in32 mm | Outer Diameter (D) N/A 1.299 in33 mm | Total Length (G) N/A 0.531 in13.5 mm |
Internal ID
N/A
2657 |
9876.54 |
| DSF0.5-70 | $9,876.54 | CAD N/A | Module N/A 0.5 | No. of Teeth N/A 70 | Shape N/A S1 | Bore Diameter (A) N/A 0.197 in5 mm | Pitch Diameter (C) N/A 1.378 in35 mm | Outer Diameter (D) N/A 1.417 in36 mm | Total Length (G) N/A 0.531 in13.5 mm |
Internal ID
N/A
2658 |
9876.54 |
| DSF0.5-80 | $74.01 | CAD N/A | Module N/A 0.5 | No. of Teeth N/A 80 | Shape N/A S1 | Bore Diameter (A) N/A 0.197 in5 mm | Pitch Diameter (C) N/A 1.575 in40 mm | Outer Diameter (D) N/A 1.614 in41 mm | Total Length (G) N/A 0.531 in13.5 mm |
Internal ID
N/A
2659 |
74.01 |
| DSF0.5-90 | $9,876.54 | CAD N/A | Module N/A 0.5 | No. of Teeth N/A 90 | Shape N/A S1 | Bore Diameter (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.772 in45 mm | Outer Diameter (D) N/A 1.811 in46 mm | Total Length (G) N/A 0.591 in15 mm |
Internal ID
N/A
2660 |
9876.54 |
| DSF1-100 | $112.44 | CAD N/A | Module N/A 1 | No. of Teeth N/A 100 | Shape N/A S1 | Bore Diameter (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 3.937 in100 mm | Outer Diameter (D) N/A 4.016 in102 mm | Total Length (G) N/A 0.630 in16 mm |
Internal ID
N/A
2661 |
112.44 |
| DSF1-20 | $66.64 | CAD N/A | Module N/A 1 | No. of Teeth N/A 20 | Shape N/A S1 | Bore Diameter (A) N/A 0.197 in5 mm | Pitch Diameter (C) N/A 0.787 in20 mm | Outer Diameter (D) N/A 0.866 in22 mm | Total Length (G) N/A 0.571 in14.5 mm |
Internal ID
N/A
2662 |
66.64 |
| DSF1-24 | $67.87 | CAD N/A | Module N/A 1 | No. of Teeth N/A 24 | Shape N/A S1 | Bore Diameter (A) N/A 0.197 in5 mm | Pitch Diameter (C) N/A 0.945 in24 mm | Outer Diameter (D) N/A 1.024 in26 mm | Total Length (G) N/A 0.571 in14.5 mm |
Internal ID
N/A
2663 |
67.87 |
| DSF1-25 | $68.12 | CAD N/A | Module N/A 1 | No. of Teeth N/A 25 | Shape N/A S1 | Bore Diameter (A) N/A 0.197 in5 mm | Pitch Diameter (C) N/A 0.984 in25 mm | Outer Diameter (D) N/A 1.063 in27 mm | Total Length (G) N/A 0.571 in14.5 mm |
Internal ID
N/A
2664 |
68.12 |
| DSF1-28 | $9,876.54 | CAD N/A | Module N/A 1 | No. of Teeth N/A 28 | Shape N/A S1 | Bore Diameter (A) N/A 0.197 in5 mm | Pitch Diameter (C) N/A 1.102 in28 mm | Outer Diameter (D) N/A 1.181 in30 mm | Total Length (G) N/A 0.571 in14.5 mm |
Internal ID
N/A
2665 |
9876.54 |
| DSF1-30 | $68.95 | CAD N/A | Module N/A 1 | No. of Teeth N/A 30 | Shape N/A S1 | Bore Diameter (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.260 in32 mm | Total Length (G) N/A 0.630 in16 mm |
Internal ID
N/A
2666 |
68.95 |
| DSF1-32 | $69.23 | CAD N/A | Module N/A 1 | No. of Teeth N/A 32 | Shape N/A S1 | Bore Diameter (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.260 in32 mm | Outer Diameter (D) N/A 1.339 in34 mm | Total Length (G) N/A 0.630 in16 mm |
Internal ID
N/A
2667 |
69.23 |
| DSF1-35 | $9,876.54 | CAD N/A | Module N/A 1 | No. of Teeth N/A 35 | Shape N/A S1 | Bore Diameter (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.378 in35 mm | Outer Diameter (D) N/A 1.457 in37 mm | Total Length (G) N/A 0.630 in16 mm |
Internal ID
N/A
2668 |
9876.54 |
| DSF1-36 | $72.02 | CAD N/A | Module N/A 1 | No. of Teeth N/A 36 | Shape N/A S1 | Bore Diameter (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.417 in36 mm | Outer Diameter (D) N/A 1.496 in38 mm | Total Length (G) N/A 0.630 in16 mm |
Internal ID
N/A
2669 |
72.02 |
| DSF1-40 | $72.53 | CAD N/A | Module N/A 1 | No. of Teeth N/A 40 | Shape N/A S1 | Bore Diameter (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.575 in40 mm | Outer Diameter (D) N/A 1.654 in42 mm | Total Length (G) N/A 0.630 in16 mm |
Internal ID
N/A
2670 |
72.53 |
| DSF1-45 | $9,876.54 | CAD N/A | Module N/A 1 | No. of Teeth N/A 45 | Shape N/A S1 | Bore Diameter (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.772 in45 mm | Outer Diameter (D) N/A 1.850 in47 mm | Total Length (G) N/A 0.630 in16 mm |
Internal ID
N/A
2671 |
9876.54 |
| DSF1-48 | $9,876.54 | CAD N/A | Module N/A 1 | No. of Teeth N/A 48 | Shape N/A S1 | Bore Diameter (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.890 in48 mm | Outer Diameter (D) N/A 1.969 in50 mm | Total Length (G) N/A 0.630 in16 mm |
Internal ID
N/A
2672 |
9876.54 |
| DSF1-50 | $74.79 | CAD N/A | Module N/A 1 | No. of Teeth N/A 50 | Shape N/A S1 | Bore Diameter (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.969 in50 mm | Outer Diameter (D) N/A 2.047 in52 mm | Total Length (G) N/A 0.630 in16 mm |
Internal ID
N/A
2673 |
74.79 |
1 2
