Thermal Refined Racks w/ Machined Ends (KRF - KRFD)


Email This Page Download PDF Download PDF Printable Page
Thermal Refined Racks w/ Machined Ends (KRF - KRFD) Racks
  • Thermal-Refined-Racks-w-Machined-Ends--KRF---KRFD-/Asset/Thermal-Refined-Racks-w-Machined-Ends--KRF---KRFD-.jpg

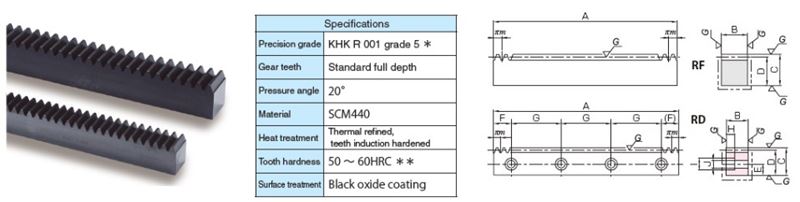

  • Thermal-Refined-Racks-w-Machined-Ends--KRF---KRFD-_Dim
  • Thermal-Refined-Racks-w-Machined-Ends--KRF---KRFD-/Asset/Thermal-Refined-Racks-w-Machined-Ends--KRF---KRFD-.jpg
  • Thermal-Refined-Racks-w-Machined-Ends--KRF---KRFD-_Dim
Increased strength with SCM440 material which is thermal refined.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
1 - 24 of 24 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items
Clear Filter

Module

Effective No. of Teeth

Shape

Total Length Rack (A) (in)

Total Length Rack (A) (mm)

Face Width (B) (in)

Face Width (B) (mm)

Height (C) (in)

Height (C) (mm)

Height To Pitch Line (D) (in)

Height To Pitch Line (D) (mm)

Item #

Sell Price

CAD

Module

Effective No. of Teeth

Shape

Total Length Rack (A)

Face Width (B)

Height (C)

Height To Pitch Line (D)

Internal ID

Sell Price 1 Value

KRF1.5-1000 $275.66 CAD N/A CAD Icon (for items table) Module N/A 1.5 Effective No. of Teeth N/A 212 Shape N/A RF Total Length Rack (A) N/A 39.332 in999.03 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.728 in18.5 mm Internal ID N/A
4745 		275.66
KRF1.5-500 $146.73 CAD N/A CAD Icon (for items table) Module N/A 1.5 Effective No. of Teeth N/A 106 Shape N/A RF Total Length Rack (A) N/A 19.666 in499.51 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.728 in18.5 mm Internal ID N/A
4747 		146.73
KRFD1.5-1000J $342.00 CAD N/A CAD Icon (for items table) Module N/A 1.5 Effective No. of Teeth N/A 212 Shape N/A RD Total Length Rack (A) N/A 39.332 in999.03 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.728 in18.5 mm Internal ID N/A
4764 		342
KRFD1.5-500J $206.00 CAD N/A CAD Icon (for items table) Module N/A 1.5 Effective No. of Teeth N/A 106 Shape N/A RD Total Length Rack (A) N/A 19.666 in499.51 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.728 in18.5 mm Internal ID N/A
4765 		206
KRF2-1000 $351.19 CAD N/A CAD Icon (for items table) Module N/A 2 Effective No. of Teeth N/A 160 Shape N/A RF Total Length Rack (A) N/A 39.579 in1005.31 mm Face Width (B) N/A 0.787 in20 mm Height (C) N/A 0.984 in25 mm Height To Pitch Line (D) N/A 0.906 in23 mm Internal ID N/A
4748 		351.19
KRF2-500 $185.03 CAD N/A CAD Icon (for items table) Module N/A 2 Effective No. of Teeth N/A 80 Shape N/A RF Total Length Rack (A) N/A 19.789 in502.65 mm Face Width (B) N/A 0.787 in20 mm Height (C) N/A 0.984 in25 mm Height To Pitch Line (D) N/A 0.906 in23 mm Internal ID N/A
4750 		185.03
KRFD2-1000J $426.30 CAD N/A CAD Icon (for items table) Module N/A 2 Effective No. of Teeth N/A 160 Shape N/A RD Total Length Rack (A) N/A 39.579 in1005.31 mm Face Width (B) N/A 0.787 in20 mm Height (C) N/A 0.984 in25 mm Height To Pitch Line (D) N/A 0.906 in23 mm Internal ID N/A
4767 		426.3
KRFD2-500J $252.20 CAD N/A CAD Icon (for items table) Module N/A 2 Effective No. of Teeth N/A 80 Shape N/A RD Total Length Rack (A) N/A 19.789 in502.65 mm Face Width (B) N/A 0.787 in20 mm Height (C) N/A 0.984 in25 mm Height To Pitch Line (D) N/A 0.906 in23 mm Internal ID N/A
4768 		252.2
KRF2.5-1000 $466.33 CAD N/A CAD Icon (for items table) Module N/A 2.5 Effective No. of Teeth N/A 128 Shape N/A RF Total Length Rack (A) N/A 39.579 in1005.31 mm Face Width (B) N/A 0.984 in25 mm Height (C) N/A 1.181 in30 mm Height To Pitch Line (D) N/A 1.083 in27.5 mm Internal ID N/A
4751 		466.33
KRF2.5-500 $244.82 CAD N/A CAD Icon (for items table) Module N/A 2.5 Effective No. of Teeth N/A 64 Shape N/A RF Total Length Rack (A) N/A 19.789 in502.65 mm Face Width (B) N/A 0.984 in25 mm Height (C) N/A 1.181 in30 mm Height To Pitch Line (D) N/A 1.083 in27.5 mm Internal ID N/A
4753 		244.82
KRFD2.5-1000J $539.30 CAD N/A CAD Icon (for items table) Module N/A 2.5 Effective No. of Teeth N/A 128 Shape N/A RD Total Length Rack (A) N/A 39.579 in1005.31 mm Face Width (B) N/A 0.984 in25 mm Height (C) N/A 1.181 in30 mm Height To Pitch Line (D) N/A 1.083 in27.5 mm Internal ID N/A
4770 		539.3
KRFD2.5-500J $311.00 CAD N/A CAD Icon (for items table) Module N/A 2.5 Effective No. of Teeth N/A 64 Shape N/A RD Total Length Rack (A) N/A 19.789 in502.65 mm Face Width (B) N/A 0.984 in25 mm Height (C) N/A 1.181 in30 mm Height To Pitch Line (D) N/A 1.083 in27.5 mm Internal ID N/A
4771 		311
KRF3-1000 $589.04 CAD N/A CAD Icon (for items table) Module N/A 3 Effective No. of Teeth N/A 106 Shape N/A RF Total Length Rack (A) N/A 39.332 in999.03 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.260 in32 mm Internal ID N/A
4754 		589.04
KRF3-500 $311.26 CAD N/A CAD Icon (for items table) Module N/A 3 Effective No. of Teeth N/A 53 Shape N/A RF Total Length Rack (A) N/A 19.666 in499.51 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.260 in32 mm Internal ID N/A
4756 		311.26
KRFD3-1000J $670.90 CAD N/A CAD Icon (for items table) Module N/A 3 Effective No. of Teeth N/A 106 Shape N/A RD Total Length Rack (A) N/A 39.332 in999.03 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.260 in32 mm Internal ID N/A
4773 		670.9
KRFD3-500J $387.10 CAD N/A CAD Icon (for items table) Module N/A 3 Effective No. of Teeth N/A 53 Shape N/A RD Total Length Rack (A) N/A 19.666 in499.51 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.260 in32 mm Internal ID N/A
4774 		387.1
KRF4-1000 $938.15 CAD N/A CAD Icon (for items table) Module N/A 4 Effective No. of Teeth N/A 80 Shape N/A RF Total Length Rack (A) N/A 39.579 in1005.31 mm Face Width (B) N/A 1.575 in40 mm Height (C) N/A 1.772 in45 mm Height To Pitch Line (D) N/A 1.614 in41 mm Internal ID N/A
4757 		938.15
KRF4-500 $505.77 CAD N/A CAD Icon (for items table) Module N/A 4 Effective No. of Teeth N/A 40 Shape N/A RF Total Length Rack (A) N/A 19.789 in502.65 mm Face Width (B) N/A 1.575 in40 mm Height (C) N/A 1.772 in45 mm Height To Pitch Line (D) N/A 1.614 in41 mm Internal ID N/A
4759 		505.77
KRFD4-1000J $1,009.40 CAD N/A CAD Icon (for items table) Module N/A 4 Effective No. of Teeth N/A 80 Shape N/A RD Total Length Rack (A) N/A 39.579 in1005.31 mm Face Width (B) N/A 1.575 in40 mm Height (C) N/A 1.772 in45 mm Height To Pitch Line (D) N/A 1.614 in41 mm Internal ID N/A
4776 		1009.4
KRFD4-500J $580.50 CAD N/A CAD Icon (for items table) Module N/A 4 Effective No. of Teeth N/A 40 Shape N/A RD Total Length Rack (A) N/A 19.789 in502.65 mm Face Width (B) N/A 1.575 in40 mm Height (C) N/A 1.772 in45 mm Height To Pitch Line (D) N/A 1.614 in41 mm Internal ID N/A
4777 		580.5
KRF5-1000 $1,122.13 CAD N/A CAD Icon (for items table) Module N/A 5 Effective No. of Teeth N/A 64 Shape N/A RF Total Length Rack (A) N/A 39.579 in1005.31 mm Face Width (B) N/A 1.969 in50 mm Height (C) N/A 1.969 in50 mm Height To Pitch Line (D) N/A 1.772 in45 mm Internal ID N/A
4760 		1122.13
KRF5-500 $624.78 CAD N/A CAD Icon (for items table) Module N/A 5 Effective No. of Teeth N/A 32 Shape N/A RF Total Length Rack (A) N/A 19.789 in502.65 mm Face Width (B) N/A 1.969 in50 mm Height (C) N/A 1.969 in50 mm Height To Pitch Line (D) N/A 1.772 in45 mm Internal ID N/A
4762 		624.78
KRFD5-1000J $1,192.20 CAD N/A CAD Icon (for items table) Module N/A 5 Effective No. of Teeth N/A 64 Shape N/A RD Total Length Rack (A) N/A 39.579 in1005.31 mm Face Width (B) N/A 1.969 in50 mm Height (C) N/A 1.969 in50 mm Height To Pitch Line (D) N/A 1.772 in45 mm Internal ID N/A
4779 		1192.2
KRFD5-500J $702.30 CAD N/A CAD Icon (for items table) Module N/A 5 Effective No. of Teeth N/A 32 Shape N/A RD Total Length Rack (A) N/A 19.789 in502.65 mm Face Width (B) N/A 1.969 in50 mm Height (C) N/A 1.969 in50 mm Height To Pitch Line (D) N/A 1.772 in45 mm Internal ID N/A
4780 		702.3
