Thermal Refined Ground Racks (KRG - KRGF - KRGD)


Email This Page Download PDF Download PDF Printable Page
Thermal Refined Ground Racks (KRG - KRGF - KRGD) Racks
  • Thermal-Refined-Ground-Racks--KRG---KRGF---KRGD-/Asset/Thermal-Refined-Ground-Racks--KRG---KRGF---KRGD-.jpg

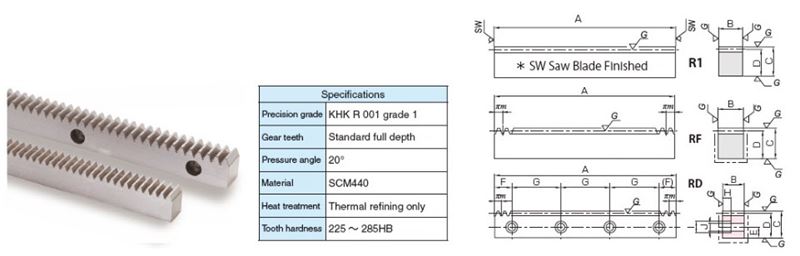

  • Thermal-Refined-Ground-Racks--KRG---KRGF---KRGD-_Dim
  • Thermal-Refined-Ground-Racks--KRG---KRGF---KRGD-/Asset/Thermal-Refined-Ground-Racks--KRG---KRGF---KRGD-.jpg
  • Thermal-Refined-Ground-Racks--KRG---KRGF---KRGD-_Dim
High strength and abrasion-resistant for precision linear motion.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
1 - 25 of 25 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items
Clear Filter

Module

Effective No. of Teeth

Shape

Total Length Rack (A) (in)

Total Length Rack (A) (mm)

Face Width (B) (in)

Face Width (B) (mm)

Height (C) (in)

Height (C) (mm)

Height To Pitch Line (D) (in)

Height To Pitch Line (D) (mm)

Item #

Sell Price

CAD

Module

Effective No. of Teeth

Shape

Total Length Rack (A)

Face Width (B)

Height (C)

Height To Pitch Line (D)

Internal ID

Sell Price 1 Value

KRG1-100 $143.21 CAD N/A CAD Icon (for items table) Module N/A 1 Effective No. of Teeth N/A 29 Shape N/A R1 Total Length Rack (A) N/A 3.858 in98 mm Face Width (B) N/A 0.394 in10 mm Height (C) N/A 0.591 in15 mm Height To Pitch Line (D) N/A 0.551 in14 mm Internal ID N/A
4781 		143.21
KRG1-500 $9,876.54 CAD N/A CAD Icon (for items table) Module N/A 1 Effective No. of Teeth N/A 159 Shape N/A R1 Total Length Rack (A) N/A 19.882 in505 mm Face Width (B) N/A 0.394 in10 mm Height (C) N/A 0.591 in15 mm Height To Pitch Line (D) N/A 0.551 in14 mm Internal ID N/A
4782 		9876.54
KRGD1-500 $9,876.54 CAD N/A CAD Icon (for items table) Module N/A 1 Effective No. of Teeth N/A 159 Shape N/A RD Total Length Rack (A) N/A 19.666 in499.51 mm Face Width (B) N/A 0.394 in10 mm Height (C) N/A 0.591 in15 mm Height To Pitch Line (D) N/A 0.551 in14 mm Internal ID N/A
4813 		9876.54
KRGF1-1000 $956.30 CAD N/A CAD Icon (for items table) Module N/A 1 Effective No. of Teeth N/A 318 Shape N/A RF Total Length Rack (A) N/A 39.332 in999.03 mm Face Width (B) N/A 0.394 in10 mm Height (C) N/A 0.591 in15 mm Height To Pitch Line (D) N/A 0.551 in14 mm Internal ID N/A
4818 		956.3
KRGF1-500 $540.32 CAD N/A Module N/A 1 Effective No. of Teeth N/A 159 Shape N/A RF Total Length Rack (A) N/A 19.666 in499.51 mm Face Width (B) N/A 0.394 in10 mm Height (C) N/A 0.591 in15 mm Height To Pitch Line (D) N/A 0.551 in14 mm Internal ID N/A
4819 		540.32
KRG1.5-100 $121.43 CAD N/A CAD Icon (for items table) Module N/A 1.5 Effective No. of Teeth N/A 20 Shape N/A R1 Total Length Rack (A) N/A 3.976 in101 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.728 in18.5 mm Internal ID N/A
4783 		121.43
KRG1.5-500 $9,876.54 CAD N/A CAD Icon (for items table) Module N/A 1.5 Effective No. of Teeth N/A 105 Shape N/A R1 Total Length Rack (A) N/A 19.882 in505 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.728 in18.5 mm Internal ID N/A
4784 		9876.54
KRGD1.5-500 $9,876.54 CAD N/A CAD Icon (for items table) Module N/A 1.5 Effective No. of Teeth N/A 106 Shape N/A RD Total Length Rack (A) N/A 19.666 in499.51 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.728 in18.5 mm Internal ID N/A
4814 		9876.54
KRGF1.5-1000 $800.87 CAD N/A CAD Icon (for items table) Module N/A 1.5 Effective No. of Teeth N/A 212 Shape N/A RF Total Length Rack (A) N/A 39.332 in999.03 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.728 in18.5 mm Internal ID N/A
4820 		800.87
KRGF1.5-500 $489.55 CAD N/A Module N/A 1.5 Effective No. of Teeth N/A 106 Shape N/A RF Total Length Rack (A) N/A 19.666 in499.51 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.728 in18.5 mm Internal ID N/A
4822 		489.55
KRG2-100 $148.03 CAD N/A CAD Icon (for items table) Module N/A 2 Effective No. of Teeth N/A 14 Shape N/A R1 Total Length Rack (A) N/A 3.858 in98 mm Face Width (B) N/A 0.787 in20 mm Height (C) N/A 0.984 in25 mm Height To Pitch Line (D) N/A 0.906 in23 mm Internal ID N/A
4785 		148.03
KRG2-500 $9,876.54 CAD N/A CAD Icon (for items table) Module N/A 2 Effective No. of Teeth N/A 79 Shape N/A R1 Total Length Rack (A) N/A 19.882 in505 mm Face Width (B) N/A 0.787 in20 mm Height (C) N/A 0.984 in25 mm Height To Pitch Line (D) N/A 0.906 in23 mm Internal ID N/A
4786 		9876.54
KRGD2-500 $9,876.54 CAD N/A CAD Icon (for items table) Module N/A 2 Effective No. of Teeth N/A 80 Shape N/A RD Total Length Rack (A) N/A 19.789 in502.65 mm Face Width (B) N/A 0.787 in20 mm Height (C) N/A 0.984 in25 mm Height To Pitch Line (D) N/A 0.906 in23 mm Internal ID N/A
4815 		9876.54
KRGF2-1000 $1,028.81 CAD N/A CAD Icon (for items table) Module N/A 2 Effective No. of Teeth N/A 160 Shape N/A RF Total Length Rack (A) N/A 39.579 in1005.31 mm Face Width (B) N/A 0.787 in20 mm Height (C) N/A 0.984 in25 mm Height To Pitch Line (D) N/A 0.906 in23 mm Internal ID N/A
4824 		1028.81
KRGF2-500 $564.70 CAD N/A Module N/A 2 Effective No. of Teeth N/A 80 Shape N/A RF Total Length Rack (A) N/A 19.789 in502.65 mm Face Width (B) N/A 0.787 in20 mm Height (C) N/A 0.984 in25 mm Height To Pitch Line (D) N/A 0.906 in23 mm Internal ID N/A
4826 		564.7
KRG2.5-100 $165.61 CAD N/A CAD Icon (for items table) Module N/A 2.5 Effective No. of Teeth N/A 11 Shape N/A R1 Total Length Rack (A) N/A 3.937 in100 mm Face Width (B) N/A 0.984 in25 mm Height (C) N/A 1.181 in30 mm Height To Pitch Line (D) N/A 1.083 in27.5 mm Internal ID N/A
4787 		165.61
KRG2.5-500 $9,876.54 CAD N/A CAD Icon (for items table) Module N/A 2.5 Effective No. of Teeth N/A 63 Shape N/A R1 Total Length Rack (A) N/A 19.882 in505 mm Face Width (B) N/A 0.984 in25 mm Height (C) N/A 1.181 in30 mm Height To Pitch Line (D) N/A 1.083 in27.5 mm Internal ID N/A
4788 		9876.54
KRGD2.5-500 $9,876.54 CAD N/A CAD Icon (for items table) Module N/A 2.5 Effective No. of Teeth N/A 64 Shape N/A RD Total Length Rack (A) N/A 19.789 in502.65 mm Face Width (B) N/A 0.984 in25 mm Height (C) N/A 1.181 in30 mm Height To Pitch Line (D) N/A 1.083 in27.5 mm Internal ID N/A
4816 		9876.54
KRGF2.5-1000 $1,146.23 CAD N/A CAD Icon (for items table) Module N/A 2.5 Effective No. of Teeth N/A 128 Shape N/A RF Total Length Rack (A) N/A 39.579 in1005.31 mm Face Width (B) N/A 0.984 in25 mm Height (C) N/A 1.181 in30 mm Height To Pitch Line (D) N/A 1.083 in27.5 mm Internal ID N/A
4828 		1146.23
KRGF2.5-500 $655.53 CAD N/A Module N/A 2.5 Effective No. of Teeth N/A 64 Shape N/A RF Total Length Rack (A) N/A 19.789 in502.65 mm Face Width (B) N/A 0.984 in25 mm Height (C) N/A 1.181 in30 mm Height To Pitch Line (D) N/A 0.295 in7.5 mm Internal ID N/A
4830 		655.53
KRG3-100 $170.22 CAD N/A CAD Icon (for items table) Module N/A 3 Effective No. of Teeth N/A 9 Shape N/A R1 Total Length Rack (A) N/A 3.976 in101 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.260 in32 mm Internal ID N/A
4789 		170.22
KRG3-500 $9,876.54 CAD N/A CAD Icon (for items table) Module N/A 3 Effective No. of Teeth N/A 52 Shape N/A R1 Total Length Rack (A) N/A 19.882 in505 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.260 in32 mm Internal ID N/A
4790 		9876.54
KRGD3-500 $9,876.54 CAD N/A CAD Icon (for items table) Module N/A 3 Effective No. of Teeth N/A 53 Shape N/A RD Total Length Rack (A) N/A 19.666 in499.51 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.260 in32 mm Internal ID N/A
4817 		9876.54
KRGF3-1000 $1,169.51 CAD N/A CAD Icon (for items table) Module N/A 3 Effective No. of Teeth N/A 106 Shape N/A RF Total Length Rack (A) N/A 39.332 in999.03 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.260 in32 mm Internal ID N/A
4832 		1169.51
KRGF3-500 $669.64 CAD N/A Module N/A 3 Effective No. of Teeth N/A 53 Shape N/A RF Total Length Rack (A) N/A 19.666 in499.51 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.260 in32 mm Internal ID N/A
4834 		669.64
