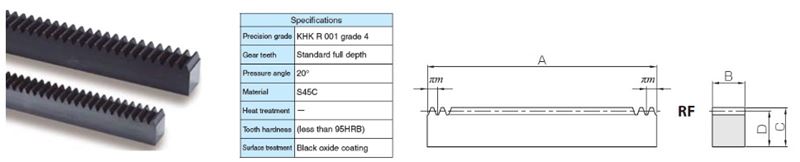

Steel Racks w/ Machined Ends (SRF)


Email This Page Download PDF Download PDF Printable Page
Steel Racks w/ Machined Ends (SRF) Racks
  • Steel-Racks-w-Machined-Ends--SRF-/Asset/Steel-Racks-w-Machined-Ends--SRF-.jpg
  • Steel-Racks-w-Machined-Ends--SRF-_Dim
  • Steel-Racks-w-Machined-Ends--SRF-/Asset/Steel-Racks-w-Machined-Ends--SRF-.jpg
  • Steel-Racks-w-Machined-Ends--SRF-_Dim
ow cost, large selections of modules and number of teeth. J Series products are also available.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
1 - 25 of 40 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items Search by Specification
Clear Filter

Module

Effective No. of Teeth

Total Length Rack (A) (in)

Total Length Rack (A) (mm)

Face Width (B) (in)

Face Width (B) (mm)

Height (C) (in)

Height (C) (mm)

Height To Pitch Line (D) (in)

Height To Pitch Line (D) (mm)

Item #

Sell Price

CAD

Module

Effective No. of Teeth

Shape

Total Length Rack (A)

Face Width (B)

Height (C)

Height To Pitch Line (D)

Internal ID

Sell Price 1 Value

SRF0.5-300 $58.30 CAD N/A CAD Icon (for items table) Module N/A 0.5 Effective No. of Teeth N/A 191 Shape N/A RF Total Length Rack (A) N/A 11.812 in300.02 mm Face Width (B) N/A 0.197 in5 mm Height (C) N/A 0.472 in12 mm Height To Pitch Line (D) N/A 0.453 in11.5 mm Internal ID N/A
11198 		58.3
SRF0.8-300 $67.57 CAD N/A CAD Icon (for items table) Module N/A 0.8 Effective No. of Teeth N/A 119 Shape N/A RF Total Length Rack (A) N/A 11.775 in299.08 mm Face Width (B) N/A 0.315 in8 mm Height (C) N/A 0.484 in12.3 mm Height To Pitch Line (D) N/A 0.453 in11.5 mm Internal ID N/A
11199 		67.57
SRF1-1000 $132.58 CAD N/A CAD Icon (for items table) Module N/A 1 Effective No. of Teeth N/A 318 Shape N/A RF Total Length Rack (A) N/A 39.332 in999.03 mm Face Width (B) N/A 0.394 in10 mm Height (C) N/A 0.472 in12 mm Height To Pitch Line (D) N/A 0.433 in11 mm Internal ID N/A
11200 		132.58
SRF1-300 $52.16 CAD N/A CAD Icon (for items table) Module N/A 1 Effective No. of Teeth N/A 96 Shape N/A RF Total Length Rack (A) N/A 11.874 in301.59 mm Face Width (B) N/A 0.394 in10 mm Height (C) N/A 0.472 in12 mm Height To Pitch Line (D) N/A 0.433 in11 mm Internal ID N/A
11201 		52.16
SRF1-500 $76.53 CAD N/A CAD Icon (for items table) Module N/A 1 Effective No. of Teeth N/A 159 Shape N/A RF Total Length Rack (A) N/A 19.666 in499.51 mm Face Width (B) N/A 0.394 in10 mm Height (C) N/A 0.472 in12 mm Height To Pitch Line (D) N/A 0.433 in11 mm Internal ID N/A
11202 		76.53
SRF1.5-1000 $159.20 CAD N/A CAD Icon (for items table) Module N/A 1.5 Effective No. of Teeth N/A 212 Shape N/A RF Total Length Rack (A) N/A 39.332 in999.03 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.728 in18.5 mm Internal ID N/A
11203 		159.2
SRF1.5-1500 $225.52 CAD N/A CAD Icon (for items table) Module N/A 1.5 Effective No. of Teeth N/A 320 Shape N/A RF Total Length Rack (A) N/A 59.369 in1507.96 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.728 in18.5 mm Internal ID N/A
11206 		225.52
SRF1.5-2000 $289.95 CAD N/A CAD Icon (for items table) Module N/A 1.5 Effective No. of Teeth N/A 435 Shape N/A RF Total Length Rack (A) N/A 80.704 in2049.88 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.728 in18.5 mm Internal ID N/A
11208 		289.95
SRF1.5-300 $61.54 CAD N/A CAD Icon (for items table) Module N/A 1.5 Effective No. of Teeth N/A 64 Shape N/A RF Total Length Rack (A) N/A 11.874 in301.59 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.728 in18.5 mm Internal ID N/A
11210 		61.54
SRF1.5-500 $90.87 CAD N/A CAD Icon (for items table) Module N/A 1.5 Effective No. of Teeth N/A 106 Shape N/A RF Total Length Rack (A) N/A 19.666 in499.51 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.728 in18.5 mm Internal ID N/A
11211 		90.87
SRF2-1000 $209.18 CAD N/A CAD Icon (for items table) Module N/A 2 Effective No. of Teeth N/A 160 Shape N/A RF Total Length Rack (A) N/A 39.579 in1005.31 mm Face Width (B) N/A 0.787 in20 mm Height (C) N/A 0.984 in25 mm Height To Pitch Line (D) N/A 0.906 in23 mm Internal ID N/A
11213 		209.18
SRF2-1500 $298.78 CAD N/A CAD Icon (for items table) Module N/A 2 Effective No. of Teeth N/A 240 Shape N/A RF Total Length Rack (A) N/A 59.369 in1507.96 mm Face Width (B) N/A 0.787 in20 mm Height (C) N/A 0.984 in25 mm Height To Pitch Line (D) N/A 0.906 in23 mm Internal ID N/A
11216 		298.78
SRF2-2000 $403.68 CAD N/A CAD Icon (for items table) Module N/A 2 Effective No. of Teeth N/A 326 Shape N/A RF Total Length Rack (A) N/A 80.642 in2048.31 mm Face Width (B) N/A 0.787 in20 mm Height (C) N/A 0.984 in25 mm Height To Pitch Line (D) N/A 0.906 in23 mm Internal ID N/A
11218 		403.68
SRF2-300 $78.24 CAD N/A CAD Icon (for items table) Module N/A 2 Effective No. of Teeth N/A 48 Shape N/A RF Total Length Rack (A) N/A 11.874 in301.59 mm Face Width (B) N/A 0.787 in20 mm Height (C) N/A 0.984 in25 mm Height To Pitch Line (D) N/A 0.906 in23 mm Internal ID N/A
11220 		78.24
SRF2-500 $116.81 CAD N/A CAD Icon (for items table) Module N/A 2 Effective No. of Teeth N/A 80 Shape N/A RF Total Length Rack (A) N/A 19.789 in502.65 mm Face Width (B) N/A 0.787 in20 mm Height (C) N/A 0.984 in25 mm Height To Pitch Line (D) N/A 0.906 in23 mm Internal ID N/A
11221 		116.81
SRF2.5-1000 $260.36 CAD N/A CAD Icon (for items table) Module N/A 2.5 Effective No. of Teeth N/A 128 Shape N/A RF Total Length Rack (A) N/A 39.579 in1005.31 mm Face Width (B) N/A 0.984 in25 mm Height (C) N/A 1.181 in30 mm Height To Pitch Line (D) N/A 1.083 in27.5 mm Internal ID N/A
11222 		260.36
SRF2.5-1500 $374.46 CAD N/A CAD Icon (for items table) Module N/A 2.5 Effective No. of Teeth N/A 192 Shape N/A RF Total Length Rack (A) N/A 59.369 in1507.96 mm Face Width (B) N/A 0.984 in25 mm Height (C) N/A 1.181 in30 mm Height To Pitch Line (D) N/A 1.083 in27.5 mm Internal ID N/A
11225 		374.46
SRF2.5-2000 $488.36 CAD N/A CAD Icon (for items table) Module N/A 2.5 Effective No. of Teeth N/A 261 Shape N/A RF Total Length Rack (A) N/A 80.704 in2049.88 mm Face Width (B) N/A 0.984 in25 mm Height (C) N/A 1.181 in30 mm Height To Pitch Line (D) N/A 1.083 in27.5 mm Internal ID N/A
11227 		488.36
SRF2.5-300 $95.55 CAD N/A CAD Icon (for items table) Module N/A 2.5 Effective No. of Teeth N/A 38 Shape N/A RF Total Length Rack (A) N/A 11.750 in298.45 mm Face Width (B) N/A 0.984 in25 mm Height (C) N/A 1.181 in30 mm Height To Pitch Line (D) N/A 1.083 in27.5 mm Internal ID N/A
11229 		95.55
SRF2.5-500 $145.20 CAD N/A CAD Icon (for items table) Module N/A 2.5 Effective No. of Teeth N/A 64 Shape N/A RF Total Length Rack (A) N/A 19.789 in502.65 mm Face Width (B) N/A 0.984 in25 mm Height (C) N/A 1.181 in30 mm Height To Pitch Line (D) N/A 1.083 in27.5 mm Internal ID N/A
11230 		145.2
SRF3-1000 $332.67 CAD N/A CAD Icon (for items table) Module N/A 3 Effective No. of Teeth N/A 106 Shape N/A RF Total Length Rack (A) N/A 39.332 in999.03 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.260 in32 mm Internal ID N/A
11231 		332.67
SRF3-1500 $481.34 CAD N/A CAD Icon (for items table) Module N/A 3 Effective No. of Teeth N/A 160 Shape N/A RF Total Length Rack (A) N/A 59.369 in1507.96 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.260 in32 mm Internal ID N/A
11234 		481.34
SRF3-2000 $629.18 CAD N/A CAD Icon (for items table) Module N/A 3 Effective No. of Teeth N/A 217 Shape N/A RF Total Length Rack (A) N/A 80.519 in2045.17 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.260 in32 mm Internal ID N/A
11236 		629.18
SRF3-300 $119.48 CAD N/A CAD Icon (for items table) Module N/A 3 Effective No. of Teeth N/A 32 Shape N/A RF Total Length Rack (A) N/A 11.874 in301.59 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.260 in32 mm Internal ID N/A
11238 		119.48
SRF3-500 $181.42 CAD N/A CAD Icon (for items table) Module N/A 3 Effective No. of Teeth N/A 53 Shape N/A RF Total Length Rack (A) N/A 19.666 in499.51 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.260 in32 mm Internal ID N/A
11239 		181.42
1 - 25 of 40 | Results Per Page | View | Unit of Measure
1 2
*
