Steel Racks w/ Machined Ends (SRAF - SRAFD - SRAFK)
Racks
This gear rack has the same tooth height and face width sizes, more compact and reasonably priced in comparison to SRF Racks
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Item # |
Sell Price |
CAD |
Module |
Effective No. of Teeth |

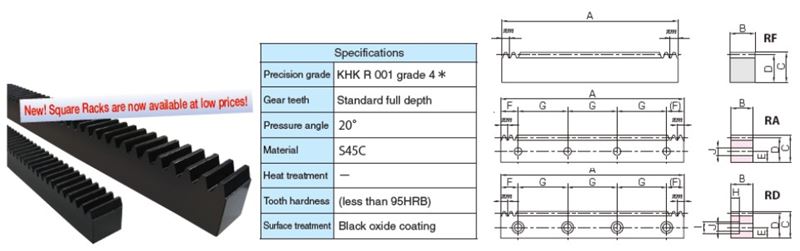

Shape |
Total Length Rack (A) |
Face Width (B) |
Height (C) |
Height To Pitch Line (D) |
Internal ID |
Sell Price 1 Value |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SRAF1.5-1000 | $113.35 |
CAD
N/A
|
Module N/A 1.5 | Effective No. of Teeth N/A 212 | Shape N/A RF | Total Length Rack (A) N/A 39.332 in999.03 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.591 in15 mm | Height To Pitch Line (D) N/A 0.531 in13.5 mm |
Internal ID
N/A
11109 |
113.35 |
| SRAF1.5-2000 | $267.88 | CAD N/A | Module N/A 1.5 | Effective No. of Teeth N/A 435 | Shape N/A RF | Total Length Rack (A) N/A 80.704 in2049.88 mm | Face Width (B) N/A 0.669 in17 mm | Height (C) N/A 0.669 in17 mm | Height To Pitch Line (D) N/A 0.610 in15.5 mm |
Internal ID
N/A
11110 |
267.88 |
| SRAFK1.5-1000J | $172.60 |
CAD
N/A
|
Module N/A 1.5 | Effective No. of Teeth N/A 212 | Shape N/A RA | Total Length Rack (A) N/A 39.332 in999.03 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.591 in15 mm | Height To Pitch Line (D) N/A 0.531 in13.5 mm |
Internal ID
N/A
11122 |
172.6 |
| SRAF1.5-1000HL | $277.20 |
CAD
N/A
|
Module N/A 1.5 | Effective No. of Teeth N/A 212 | Shape N/A RF | Total Length Rack (A) N/A 39.332 in999.03 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.591 in15 mm | Height To Pitch Line (D) N/A 0.531 in13.5 mm | 277.2 | |
| SRAFK1.5-1000HLJ | $314.90 | CAD N/A | Module N/A 1.5 | Effective No. of Teeth N/A 212 | Shape N/A RA | Total Length Rack (A) N/A 39.332 in999.03 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.591 in15 mm | Height To Pitch Line (D) N/A 0.531 in13.5 mm | 314.9 | |
| SRAF2-1000 | $151.77 |
CAD
N/A
|
Module N/A 2 | Effective No. of Teeth N/A 160 | Shape N/A RF | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 0.787 in20 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.709 in18 mm |
Internal ID
N/A
11111 |
151.77 |
| SRAF2-2000 | $326.39 |
CAD
N/A
|
Module N/A 2 | Effective No. of Teeth N/A 326 | Shape N/A RF | Total Length Rack (A) N/A 80.642 in2048.31 mm | Face Width (B) N/A 0.787 in20 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.709 in18 mm |
Internal ID
N/A
11112 |
326.39 |
| SRAFD2-1000J | $223.00 |
CAD
N/A
|
Module N/A 2 | Effective No. of Teeth N/A 160 | Shape N/A RD | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 0.787 in20 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.709 in18 mm |
Internal ID
N/A
11118 |
223 |
| SRAF2-1000HL | $275.70 |
CAD
N/A
|
Module N/A 2 | Effective No. of Teeth N/A 160 | Shape N/A RF | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 0.787 in20 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.709 in18 mm | 275.7 | |
| SRAFD2-1000HLJ | $327.20 | CAD N/A | Module N/A 2 | Effective No. of Teeth N/A 160 | Shape N/A RD | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 0.787 in20 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.709 in18 mm | 327.2 | |
| SRAF2.5-1000 | $208.64 |
CAD
N/A
|
Module N/A 2.5 | Effective No. of Teeth N/A 128 | Shape N/A RF | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 0.984 in25 mm | Height (C) N/A 0.984 in25 mm | Height To Pitch Line (D) N/A 0.886 in22.5 mm |
Internal ID
N/A
11113 |
208.64 |
| SRAF2.5-2000 | $419.70 |
CAD
N/A
|
Module N/A 2.5 | Effective No. of Teeth N/A 261 | Shape N/A RF | Total Length Rack (A) N/A 80.704 in2049.88 mm | Face Width (B) N/A 0.984 in25 mm | Height (C) N/A 0.984 in25 mm | Height To Pitch Line (D) N/A 0.886 in22.5 mm |
Internal ID
N/A
11114 |
419.7 |
| SRAFD2.5-1000J | $279.80 |
CAD
N/A
|
Module N/A 2.5 | Effective No. of Teeth N/A 128 | Shape N/A RD | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 0.984 in25 mm | Height (C) N/A 0.984 in25 mm | Height To Pitch Line (D) N/A 0.886 in22.5 mm |
Internal ID
N/A
11119 |
279.8 |
| SRAF2.5-1000HL | $335.30 |
CAD
N/A
|
Module N/A 2.5 | Effective No. of Teeth N/A 128 | Shape N/A RF | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 0.984 in25 mm | Height (C) N/A 0.984 in25 mm | Height To Pitch Line (D) N/A 0.886 in22.5 mm | 335.3 | |
| SRAFD2.5-1000HLJ | $386.20 | CAD N/A | Module N/A 2.5 | Effective No. of Teeth N/A 128 | Shape N/A RD | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 0.984 in25 mm | Height (C) N/A 0.984 in25 mm | Height To Pitch Line (D) N/A 0.886 in22.5 mm | 386.2 | |
| SRAF3-1000 | $277.62 |
CAD
N/A
|
Module N/A 3 | Effective No. of Teeth N/A 106 | Shape N/A RF | Total Length Rack (A) N/A 39.332 in999.03 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.181 in30 mm | Height To Pitch Line (D) N/A 1.063 in27 mm |
Internal ID
N/A
11115 |
277.62 |
| SRAF3-2000 | $546.51 |
CAD
N/A
|
Module N/A 3 | Effective No. of Teeth N/A 217 | Shape N/A RF | Total Length Rack (A) N/A 80.519 in2045.17 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.181 in30 mm | Height To Pitch Line (D) N/A 1.063 in27 mm |
Internal ID
N/A
11116 |
546.51 |
| SRAFD3-1000J | $357.30 |
CAD
N/A
|
Module N/A 3 | Effective No. of Teeth N/A 106 | Shape N/A RD | Total Length Rack (A) N/A 39.332 in999.03 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.181 in30 mm | Height To Pitch Line (D) N/A 1.063 in27 mm |
Internal ID
N/A
11120 |
357.3 |
| SRAF3-1000HL | $402.00 |
CAD
N/A
|
Module N/A 3 | Effective No. of Teeth N/A 106 | Shape N/A RF | Total Length Rack (A) N/A 39.332 in999.03 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.181 in30 mm | Height To Pitch Line (D) N/A 1.063 in27 mm | 402 | |
| SRAFD3-1000HLJ | $457.10 | CAD N/A | Module N/A 3 | Effective No. of Teeth N/A 106 | Shape N/A RD | Total Length Rack (A) N/A 39.332 in999.03 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.181 in30 mm | Height To Pitch Line (D) N/A 1.063 in27 mm | 457.1 | |
| SRAF4-1000 | $436.03 |
CAD
N/A
|
Module N/A 4 | Effective No. of Teeth N/A 80 | Shape N/A RF | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 1.575 in40 mm | Height (C) N/A 1.575 in40 mm | Height To Pitch Line (D) N/A 1.417 in36 mm |
Internal ID
N/A
11117 |
436.03 |
| SRAFD4-1000J | $512.40 |
CAD
N/A
|
Module N/A 4 | Effective No. of Teeth N/A 80 | Shape N/A RD | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 1.575 in40 mm | Height (C) N/A 1.575 in40 mm | Height To Pitch Line (D) N/A 1.417 in36 mm |
Internal ID
N/A
11121 |
512.4 |
| SRAF4-1000HL | $565.30 |
CAD
N/A
|
Module N/A 4 | Effective No. of Teeth N/A 80 | Shape N/A RF | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 1.575 in40 mm | Height (C) N/A 1.575 in40 mm | Height To Pitch Line (D) N/A 1.417 in36 mm | 565.3 | |
| SRAFD4-1000HLJ | $621.30 | CAD N/A | Module N/A 4 | Effective No. of Teeth N/A 80 | Shape N/A RD | Total Length Rack (A) N/A 39.579 in1005.31 mm | Face Width (B) N/A 1.575 in40 mm | Height (C) N/A 1.575 in40 mm | Height To Pitch Line (D) N/A 1.417 in36 mm | 621.3 |
