Steel Racks (SR)


Email This Page Download PDF Download PDF Printable Page

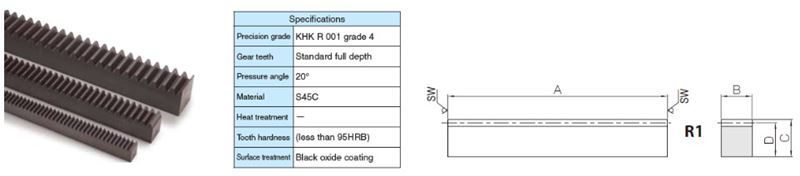

Steel Racks (SR) Racks
  • Steel-Racks--SR-/Asset/Steel-Racks--SR-.jpg
  • Steel-Racks--SR-_Dim
  • Steel-Racks--SR-/Asset/Steel-Racks--SR-.jpg
  • Steel-Racks--SR-_Dim
Low cost, large selections of modules and number of teeth. J Series products are also available.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
1 - 25 of 25 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items
Clear Filter

Module

Effective No. of Teeth

Total Length Rack (A) (in)

Total Length Rack (A) (mm)

Face Width (B) (in)

Face Width (B) (mm)

Height (C) (in)

Height (C) (mm)

Height To Pitch Line (D) (in)

Height To Pitch Line (D) (mm)

Item #

Sell Price

CAD

Module

Effective No. of Teeth

Shape

Total Length Rack (A)

Face Width (B)

Height (C)

Height To Pitch Line (D)

Internal ID

Sell Price 1 Value

SR0.5-100 $21.90 CAD N/A CAD Icon (for items table) Module N/A 0.5 Effective No. of Teeth N/A 62 Shape N/A R1 Total Length Rack (A) N/A 3.976 in101 mm Face Width (B) N/A 0.197 in5 mm Height (C) N/A 0.472 in12 mm Height To Pitch Line (D) N/A 0.453 in11.5 mm Internal ID N/A
11069 		21.9
SR0.8-100 $25.23 CAD N/A CAD Icon (for items table) Module N/A 0.8 Effective No. of Teeth N/A 38 Shape N/A R1 Total Length Rack (A) N/A 3.976 in101 mm Face Width (B) N/A 0.315 in8 mm Height (C) N/A 0.484 in12.3 mm Height To Pitch Line (D) N/A 0.453 in11.5 mm Internal ID N/A
11070 		25.23
SR1-100 $16.01 CAD N/A CAD Icon (for items table) Module N/A 1 Effective No. of Teeth N/A 29 Shape N/A R1 Total Length Rack (A) N/A 3.858 in98 mm Face Width (B) N/A 0.394 in10 mm Height (C) N/A 0.472 in12 mm Height To Pitch Line (D) N/A 0.433 in11 mm Internal ID N/A
11071 		16.01
SR1-300 $38.97 CAD N/A CAD Icon (for items table) Module N/A 1 Effective No. of Teeth N/A 94 Shape N/A R1 Total Length Rack (A) N/A 11.929 in303 mm Face Width (B) N/A 0.394 in10 mm Height (C) N/A 0.472 in12 mm Height To Pitch Line (D) N/A 0.433 in11 mm Internal ID N/A
11072 		38.97
SR1-500 $62.44 CAD N/A CAD Icon (for items table) Module N/A 1 Effective No. of Teeth N/A 159 Shape N/A R1 Total Length Rack (A) N/A 19.882 in505 mm Face Width (B) N/A 0.394 in10 mm Height (C) N/A 0.472 in12 mm Height To Pitch Line (D) N/A 0.433 in11 mm Internal ID N/A
11073 		62.44
SR1.5-100 $20.38 CAD N/A CAD Icon (for items table) Module N/A 1.5 Effective No. of Teeth N/A 20 Shape N/A R1 Total Length Rack (A) N/A 3.976 in101 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.728 in18.5 mm Internal ID N/A
11074 		20.38
SR1.5-300 $47.00 CAD N/A CAD Icon (for items table) Module N/A 1.5 Effective No. of Teeth N/A 62 Shape N/A R1 Total Length Rack (A) N/A 11.929 in303 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.728 in18.5 mm Internal ID N/A
11077 		47
SR1.5-500 $76.93 CAD N/A CAD Icon (for items table) Module N/A 1.5 Effective No. of Teeth N/A 105 Shape N/A R1 Total Length Rack (A) N/A 19.882 in505 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.728 in18.5 mm Internal ID N/A
11078 		76.93
SR2-100 $26.21 CAD N/A CAD Icon (for items table) Module N/A 2 Effective No. of Teeth N/A 14 Shape N/A R1 Total Length Rack (A) N/A 3.858 in98 mm Face Width (B) N/A 0.787 in20 mm Height (C) N/A 0.984 in25 mm Height To Pitch Line (D) N/A 0.906 in23 mm Internal ID N/A
11080 		26.21
SR2-300 $62.54 CAD N/A CAD Icon (for items table) Module N/A 2 Effective No. of Teeth N/A 46 Shape N/A R1 Total Length Rack (A) N/A 11.929 in303 mm Face Width (B) N/A 0.787 in20 mm Height (C) N/A 0.984 in25 mm Height To Pitch Line (D) N/A 0.906 in23 mm Internal ID N/A
11083 		62.54
SR2-500 $101.64 CAD N/A CAD Icon (for items table) Module N/A 2 Effective No. of Teeth N/A 79 Shape N/A R1 Total Length Rack (A) N/A 19.882 in505 mm Face Width (B) N/A 0.787 in20 mm Height (C) N/A 0.984 in25 mm Height To Pitch Line (D) N/A 0.906 in23 mm Internal ID N/A
11084 		101.64
SR2.5-100 $30.96 CAD N/A CAD Icon (for items table) Module N/A 2.5 Effective No. of Teeth N/A 11 Shape N/A R1 Total Length Rack (A) N/A 3.937 in100 mm Face Width (B) N/A 0.984 in25 mm Height (C) N/A 1.181 in30 mm Height To Pitch Line (D) N/A 1.083 in27.5 mm Internal ID N/A
11085 		30.96
SR2.5-300 $78.95 CAD N/A CAD Icon (for items table) Module N/A 2.5 Effective No. of Teeth N/A 37 Shape N/A R1 Total Length Rack (A) N/A 11.929 in303 mm Face Width (B) N/A 0.984 in25 mm Height (C) N/A 1.181 in30 mm Height To Pitch Line (D) N/A 1.083 in27.5 mm Internal ID N/A
11088 		78.95
SR2.5-500 $127.73 CAD N/A CAD Icon (for items table) Module N/A 2.5 Effective No. of Teeth N/A 63 Shape N/A R1 Total Length Rack (A) N/A 19.882 in505 mm Face Width (B) N/A 0.984 in25 mm Height (C) N/A 1.181 in30 mm Height To Pitch Line (D) N/A 1.083 in27.5 mm Internal ID N/A
11089 		127.73
SR3-100 $40.49 CAD N/A CAD Icon (for items table) Module N/A 3 Effective No. of Teeth N/A 9 Shape N/A R1 Total Length Rack (A) N/A 3.976 in101 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.260 in32 mm Internal ID N/A
11090 		40.49
SR3-300 $101.59 CAD N/A CAD Icon (for items table) Module N/A 3 Effective No. of Teeth N/A 30 Shape N/A R1 Total Length Rack (A) N/A 11.929 in303 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.260 in32 mm Internal ID N/A
11093 		101.59
SR3-500 $161.85 CAD N/A CAD Icon (for items table) Module N/A 3 Effective No. of Teeth N/A 52 Shape N/A R1 Total Length Rack (A) N/A 19.882 in505 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.260 in32 mm Internal ID N/A
11094 		161.85
SR4-100 $59.73 CAD N/A CAD Icon (for items table) Module N/A 4 Effective No. of Teeth N/A 6 Shape N/A R1 Total Length Rack (A) N/A 3.858 in98 mm Face Width (B) N/A 1.575 in40 mm Height (C) N/A 1.772 in45 mm Height To Pitch Line (D) N/A 1.614 in41 mm Internal ID N/A
11095 		59.73
SR4-500 $251.95 CAD N/A CAD Icon (for items table) Module N/A 4 Effective No. of Teeth N/A 39 Shape N/A R1 Total Length Rack (A) N/A 19.882 in505 mm Face Width (B) N/A 1.575 in40 mm Height (C) N/A 1.772 in45 mm Height To Pitch Line (D) N/A 1.614 in41 mm Internal ID N/A
11098 		251.95
SR5-110 $94.06 CAD N/A CAD Icon (for items table) Module N/A 5 Effective No. of Teeth N/A 5 Shape N/A R1 Total Length Rack (A) N/A 4.252 in108 mm Face Width (B) N/A 1.969 in50 mm Height (C) N/A 1.969 in50 mm Height To Pitch Line (D) N/A 1.772 in45 mm Internal ID N/A
11100 		94.06
SR5-500 $354.00 CAD N/A CAD Icon (for items table) Module N/A 5 Effective No. of Teeth N/A 31 Shape N/A R1 Total Length Rack (A) N/A 19.882 in505 mm Face Width (B) N/A 1.969 in50 mm Height (C) N/A 1.969 in50 mm Height To Pitch Line (D) N/A 1.772 in45 mm Internal ID N/A
11102 		354
SR6-110 $139.43 CAD N/A CAD Icon (for items table) Module N/A 6 Effective No. of Teeth N/A 4 Shape N/A R1 Total Length Rack (A) N/A 4.370 in111 mm Face Width (B) N/A 2.362 in60 mm Height (C) N/A 2.362 in60 mm Height To Pitch Line (D) N/A 2.126 in54 mm Internal ID N/A
11104 		139.43
SR6-500 $521.87 CAD N/A CAD Icon (for items table) Module N/A 6 Effective No. of Teeth N/A 25 Shape N/A R1 Total Length Rack (A) N/A 19.882 in505 mm Face Width (B) N/A 2.362 in60 mm Height (C) N/A 2.362 in60 mm Height To Pitch Line (D) N/A 2.126 in54 mm Internal ID N/A
11106 		521.87
SR8-130 $264.10 CAD N/A CAD Icon (for items table) Module N/A 8 Effective No. of Teeth N/A 3 Shape N/A R1 Total Length Rack (A) N/A 4.843 in123 mm Face Width (B) N/A 2.953 in75 mm Height (C) N/A 2.953 in75 mm Height To Pitch Line (D) N/A 2.638 in67 mm Internal ID N/A
11108 		264.1
SR10-160 $485.31 CAD N/A CAD Icon (for items table) Module N/A 10 Effective No. of Teeth N/A 3 Shape N/A R1 Total Length Rack (A) N/A 6.102 in155 mm Face Width (B) N/A 3.543 in90 mm Height (C) N/A 3.150 in80 mm Height To Pitch Line (D) N/A 2.756 in70 mm Internal ID N/A
11079 		485.31
