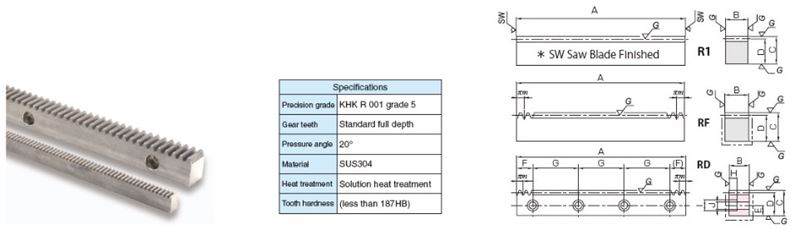

Stainless Steel Racks (SUR·SURF·SURFD) On KHK Gears

Suitable for food machinery due to SUS304 material\'s rust-resistant quality.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.

1 - 21 of 21 | Results Per Page | View | Unit of Measure

Request Information Compare Items

Clear Filter

Module

Effective No. of Teeth

Shape

Total Length Rack (A) (in)

Total Length Rack (A) (mm)

Face Width (B) (in)

Face Width (B) (mm)

Height (C) (in)

Height (C) (mm)

Height To Pitch Line (D) (in)

Height To Pitch Line (D) (mm)

Item #	Sell Price	CAD	Module	Effective No. of Teeth	Shape	Total Length Rack (A)	Face Width (B)	Height (C)	Height To Pitch Line (D)	Internal ID	Sell Price 1 Value

SUR1-500	$169.88	N/A	N/A 1	N/A 159	N/A R1	N/A 19.882 in505 mm	N/A 0.394 in10 mm	N/A 0.472 in12 mm	N/A 0.433 in11 mm	N/A 28933	169.88
SUR1.5-1000	$9,876.54	N/A	N/A 1.5	N/A 212	N/A R1	N/A 39.764 in1010 mm	N/A 0.591 in15 mm	N/A 0.787 in20 mm	N/A 0.728 in18.5 mm	N/A 28934	9876.54
SUR1.5-500	$204.49	N/A	N/A 1.5	N/A 105	N/A R1	N/A 19.882 in505 mm	N/A 0.591 in15 mm	N/A 0.787 in20 mm	N/A 0.728 in18.5 mm	N/A 28935	204.49
SURF1.5-1000	$400.61	N/A	N/A 1.5	N/A 212	N/A RF	N/A 39.332 in999.03 mm	N/A 0.591 in15 mm	N/A 0.787 in20 mm	N/A 0.728 in18.5 mm	N/A 28952	400.61
SURFD1.5-1000	$460.68	N/A	N/A 1.5	N/A 212	N/A RD	N/A 39.332 in999.03 mm	N/A 0.591 in15 mm	N/A 0.787 in20 mm	N/A 0.728 in18.5 mm	N/A 28957	460.68
SUR2-1000	$9,876.54	N/A	N/A 2	N/A 159	N/A R1	N/A 39.764 in1010 mm	N/A 0.787 in20 mm	N/A 0.984 in25 mm	N/A 0.906 in23 mm	N/A 28936	9876.54
SUR2-500	$288.68	N/A	N/A 2	N/A 79	N/A R1	N/A 19.882 in505 mm	N/A 0.787 in20 mm	N/A 0.984 in25 mm	N/A 0.906 in23 mm	N/A 28937	288.68
SURF2-1000	$558.45	N/A	N/A 2	N/A 160	N/A RF	N/A 39.579 in1005.31 mm	N/A 0.787 in20 mm	N/A 0.984 in25 mm	N/A 0.906 in23 mm	N/A 28953	558.45
SURFD2-1000	$629.51	N/A	N/A 2	N/A 160	N/A RD	N/A 39.579 in1005.31 mm	N/A 0.787 in20 mm	N/A 0.984 in25 mm	N/A 0.906 in23 mm	N/A 28958	629.51
SUR2.5-1000	$9,876.54	N/A	N/A 2.5	N/A 127	N/A R1	N/A 39.764 in1010 mm	N/A 0.984 in25 mm	N/A 1.181 in30 mm	N/A 1.083 in27.5 mm	N/A 28938	9876.54
SUR2.5-500	$385.95	N/A	N/A 2.5	N/A 63	N/A R1	N/A 19.882 in505 mm	N/A 0.984 in25 mm	N/A 1.181 in30 mm	N/A 1.083 in27.5 mm	N/A 28939	385.95
SURF2.5-1000	$746.64	N/A	N/A 2.5	N/A 128	N/A RF	N/A 39.579 in1005.31 mm	N/A 0.984 in25 mm	N/A 1.181 in30 mm	N/A 1.083 in27.5 mm	N/A 28954	746.64
SURFD2.5-1000	$826.62	N/A	N/A 2.5	N/A 128	N/A RD	N/A 39.579 in1005.31 mm	N/A 0.984 in25 mm	N/A 1.181 in30 mm	N/A 1.083 in27.5 mm	N/A 28959	826.62
SUR3-1000	$9,876.54	N/A	N/A 3	N/A 105	N/A R1	N/A 39.764 in1010 mm	N/A 1.181 in30 mm	N/A 1.378 in35 mm	N/A 1.260 in32 mm	N/A 28940	9876.54
SUR3-500	$444.31	N/A	N/A 3	N/A 52	N/A R1	N/A 19.882 in505 mm	N/A 1.181 in30 mm	N/A 1.378 in35 mm	N/A 1.260 in32 mm	N/A 28941	444.31
SURF3-1000	$865.69	N/A	N/A 3	N/A 106	N/A RF	N/A 39.332 in999.03 mm	N/A 1.181 in30 mm	N/A 1.378 in35 mm	N/A 1.260 in32 mm	N/A 28955	865.69
SURFD3-1000	$948.21	N/A	N/A 3	N/A 106	N/A RD	N/A 39.332 in999.03 mm	N/A 1.181 in30 mm	N/A 1.378 in35 mm	N/A 1.260 in32 mm	N/A 28960	948.21
SUR4-1000	$9,876.54	N/A	N/A 4	N/A 79	N/A R1	N/A 39.764 in1010 mm	N/A 1.575 in40 mm	N/A 1.772 in45 mm	N/A 1.614 in41 mm	N/A 28942	9876.54
SUR4-500	$684.78	N/A	N/A 4	N/A 39	N/A R1	N/A 19.882 in505 mm	N/A 1.575 in40 mm	N/A 1.772 in45 mm	N/A 1.614 in41 mm	N/A 28943	684.78
SURF4-1000	$1,298.54	N/A	N/A 4	N/A 80	N/A RF	N/A 39.579 in1005.31 mm	N/A 1.575 in40 mm	N/A 1.772 in45 mm	N/A 1.614 in41 mm	N/A 28956	1298.54
SURFD4-1000	$1,410.54	N/A	N/A 4	N/A 80	N/A RD	N/A 39.579 in1005.31 mm	N/A 1.575 in40 mm	N/A 1.772 in45 mm	N/A 1.614 in41 mm	N/A 28961	1410.54

1 - 21 of 21 | Results Per Page | View | Unit of Measure
