Racks with Bolt Holes (SRFD - SRFK)


Email This Page Download PDF Download PDF Printable Page

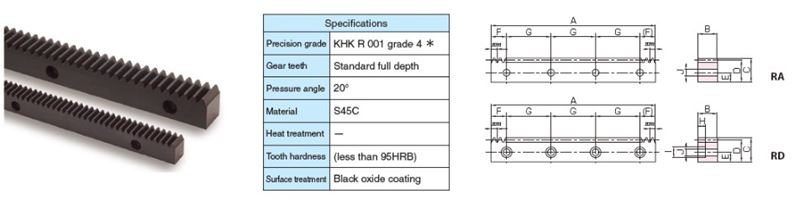

Racks with Bolt Holes (SRFD - SRFK) Racks
  • Racks-with-Bolt-Holes--SRFD---SRFK-/Asset/Racks-with-Bolt-Holes--SRFD---SRFK-.jpg
  • Racks-with-Bolt-Holes--SRFD---SRFK-_Dim
  • Racks-with-Bolt-Holes--SRFD---SRFK-/Asset/Racks-with-Bolt-Holes--SRFD---SRFK-.jpg
  • Racks-with-Bolt-Holes--SRFD---SRFK-_Dim
Low cost, large selections of modules and number of teeth. J Series products are also available.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
1 - 25 of 36 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items Search by Specification
Clear Filter

Module

Effective No. of Teeth

Shape

Total Length Rack (A) (in)

Total Length Rack (A) (mm)

Face Width (B) (in)

Face Width (B) (mm)

Height (C) (in)

Height (C) (mm)

Height To Pitch Line (D) (in)

Height To Pitch Line (D) (mm)

Item #

Sell Price

CAD

Module

Effective No. of Teeth

Shape

Total Length Rack (A)

Face Width (B)

Height (C)

Height To Pitch Line (D)

Internal ID

Sell Price 1 Value

SRFK0.5-300J $107.80 CAD N/A CAD Icon (for items table) Module N/A 0.5 Effective No. of Teeth N/A 191 Shape N/A RA Total Length Rack (A) N/A 11.812 in300.02 mm Face Width (B) N/A 0.197 in5 mm Height (C) N/A 0.472 in12 mm Height To Pitch Line (D) N/A 0.453 in11.5 mm Internal ID N/A
11326 		107.8
SRFK0.8-300J $116.20 CAD N/A CAD Icon (for items table) Module N/A 0.8 Effective No. of Teeth N/A 119 Shape N/A RA Total Length Rack (A) N/A 11.775 in299.08 mm Face Width (B) N/A 0.315 in8 mm Height (C) N/A 0.484 in12.3 mm Height To Pitch Line (D) N/A 0.453 in11.5 mm Internal ID N/A
11327 		116.2
SRFK1-300J $102.50 CAD N/A CAD Icon (for items table) Module N/A 1 Effective No. of Teeth N/A 96 Shape N/A RA Total Length Rack (A) N/A 11.874 in301.59 mm Face Width (B) N/A 0.394 in10 mm Height (C) N/A 0.472 in12 mm Height To Pitch Line (D) N/A 0.433 in11 mm Internal ID N/A
11328 		102.5
SRFK1-500J $124.30 CAD N/A CAD Icon (for items table) Module N/A 1 Effective No. of Teeth N/A 159 Shape N/A RA Total Length Rack (A) N/A 19.666 in499.51 mm Face Width (B) N/A 0.394 in10 mm Height (C) N/A 0.472 in12 mm Height To Pitch Line (D) N/A 0.433 in11 mm Internal ID N/A
11329 		124.3
SRFD1.5-1000 $178.71 CAD N/A CAD Icon (for items table) Module N/A 1.5 Effective No. of Teeth N/A 212 Shape N/A RD Total Length Rack (A) N/A 39.332 in999.03 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.728 in18.5 mm Internal ID N/A
11266 		178.71
SRFD1.5-1500 $253.34 CAD N/A CAD Icon (for items table) Module N/A 1.5 Effective No. of Teeth N/A 320 Shape N/A RD Total Length Rack (A) N/A 59.369 in1507.96 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.728 in18.5 mm Internal ID N/A
11269 		253.34
SRFD1.5-2000 $327.05 CAD N/A CAD Icon (for items table) Module N/A 1.5 Effective No. of Teeth N/A 435 Shape N/A RD Total Length Rack (A) N/A 80.704 in2049.88 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.728 in18.5 mm Internal ID N/A
11271 		327.05
SRFD1.5-300J $118.40 CAD N/A CAD Icon (for items table) Module N/A 1.5 Effective No. of Teeth N/A 64 Shape N/A RD Total Length Rack (A) N/A 11.874 in301.59 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.728 in18.5 mm Internal ID N/A
11273 		118.4
SRFD1.5-500J $148.00 CAD N/A CAD Icon (for items table) Module N/A 1.5 Effective No. of Teeth N/A 106 Shape N/A RD Total Length Rack (A) N/A 19.666 in499.51 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.728 in18.5 mm Internal ID N/A
11274 		148
SRFD2-1000 $232.09 CAD N/A CAD Icon (for items table) Module N/A 2 Effective No. of Teeth N/A 160 Shape N/A RD Total Length Rack (A) N/A 39.579 in1005.31 mm Face Width (B) N/A 0.787 in20 mm Height (C) N/A 0.984 in25 mm Height To Pitch Line (D) N/A 0.906 in23 mm Internal ID N/A
11275 		232.09
SRFD2-1500 $330.70 CAD N/A CAD Icon (for items table) Module N/A 2 Effective No. of Teeth N/A 240 Shape N/A RD Total Length Rack (A) N/A 59.369 in1507.96 mm Face Width (B) N/A 0.787 in20 mm Height (C) N/A 0.984 in25 mm Height To Pitch Line (D) N/A 0.906 in23 mm Internal ID N/A
11278 		330.7
SRFD2-2000 $432.12 CAD N/A CAD Icon (for items table) Module N/A 2 Effective No. of Teeth N/A 326 Shape N/A RD Total Length Rack (A) N/A 80.642 in2048.31 mm Face Width (B) N/A 0.787 in20 mm Height (C) N/A 0.984 in25 mm Height To Pitch Line (D) N/A 0.906 in23 mm Internal ID N/A
11280 		432.12
SRFD2-300J $142.60 CAD N/A CAD Icon (for items table) Module N/A 2 Effective No. of Teeth N/A 48 Shape N/A RD Total Length Rack (A) N/A 11.874 in301.59 mm Face Width (B) N/A 0.787 in20 mm Height (C) N/A 0.984 in25 mm Height To Pitch Line (D) N/A 0.906 in23 mm Internal ID N/A
11282 		142.6
SRFD2-500J $182.20 CAD N/A CAD Icon (for items table) Module N/A 2 Effective No. of Teeth N/A 80 Shape N/A RD Total Length Rack (A) N/A 19.789 in502.65 mm Face Width (B) N/A 0.787 in20 mm Height (C) N/A 0.984 in25 mm Height To Pitch Line (D) N/A 0.906 in23 mm Internal ID N/A
11283 		182.2
SRFD2.5-1000 $288.64 CAD N/A CAD Icon (for items table) Module N/A 2.5 Effective No. of Teeth N/A 128 Shape N/A RD Total Length Rack (A) N/A 39.579 in1005.31 mm Face Width (B) N/A 0.984 in25 mm Height (C) N/A 1.181 in30 mm Height To Pitch Line (D) N/A 1.083 in27.5 mm Internal ID N/A
11284 		288.64
SRFD2.5-1500 $416.18 CAD N/A CAD Icon (for items table) Module N/A 2.5 Effective No. of Teeth N/A 192 Shape N/A RD Total Length Rack (A) N/A 59.369 in1507.96 mm Face Width (B) N/A 0.984 in25 mm Height (C) N/A 1.181 in30 mm Height To Pitch Line (D) N/A 1.083 in27.5 mm Internal ID N/A
11287 		416.18
SRFD2.5-2000 $541.17 CAD N/A CAD Icon (for items table) Module N/A 2.5 Effective No. of Teeth N/A 261 Shape N/A RD Total Length Rack (A) N/A 80.704 in2049.88 mm Face Width (B) N/A 0.984 in25 mm Height (C) N/A 1.181 in30 mm Height To Pitch Line (D) N/A 1.083 in27.5 mm Internal ID N/A
11289 		541.17
SRFD2.5-300J $160.60 CAD N/A CAD Icon (for items table) Module N/A 2.5 Effective No. of Teeth N/A 38 Shape N/A RD Total Length Rack (A) N/A 11.750 in298.45 mm Face Width (B) N/A 0.984 in25 mm Height (C) N/A 1.181 in30 mm Height To Pitch Line (D) N/A 1.083 in27.5 mm Internal ID N/A
11291 		160.6
SRFD2.5-500J $210.00 CAD N/A CAD Icon (for items table) Module N/A 2.5 Effective No. of Teeth N/A 64 Shape N/A RD Total Length Rack (A) N/A 19.789 in502.65 mm Face Width (B) N/A 0.984 in25 mm Height (C) N/A 1.181 in30 mm Height To Pitch Line (D) N/A 1.083 in27.5 mm Internal ID N/A
11292 		210
SRFD3-1000 $363.33 CAD N/A CAD Icon (for items table) Module N/A 3 Effective No. of Teeth N/A 106 Shape N/A RD Total Length Rack (A) N/A 39.332 in999.03 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.260 in32 mm Internal ID N/A
11293 		363.33
SRFD3-1500 $529.47 CAD N/A CAD Icon (for items table) Module N/A 3 Effective No. of Teeth N/A 160 Shape N/A RD Total Length Rack (A) N/A 59.369 in1507.96 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.260 in32 mm Internal ID N/A
11296 		529.47
SRFD3-2000 $689.32 CAD N/A CAD Icon (for items table) Module N/A 3 Effective No. of Teeth N/A 217 Shape N/A RD Total Length Rack (A) N/A 80.519 in2045.17 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.260 in32 mm Internal ID N/A
11298 		689.32
SRFD3-300J $193.00 CAD N/A CAD Icon (for items table) Module N/A 3 Effective No. of Teeth N/A 32 Shape N/A RD Total Length Rack (A) N/A 11.874 in301.59 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.260 in32 mm Internal ID N/A
11300 		193
SRFD3-500J $255.40 CAD N/A CAD Icon (for items table) Module N/A 3 Effective No. of Teeth N/A 53 Shape N/A RD Total Length Rack (A) N/A 19.666 in499.51 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.260 in32 mm Internal ID N/A
11301 		255.4
SRFD4-1000 $558.60 CAD N/A CAD Icon (for items table) Module N/A 4 Effective No. of Teeth N/A 80 Shape N/A RD Total Length Rack (A) N/A 39.579 in1005.31 mm Face Width (B) N/A 1.575 in40 mm Height (C) N/A 1.772 in45 mm Height To Pitch Line (D) N/A 1.614 in41 mm Internal ID N/A
11302 		558.6
1 - 25 of 36 | Results Per Page | View | Unit of Measure
1 2
*
