Plastic Racks (PR·PRF) On KHK Gears

Made form MC nylon, can be used without lubrication.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.

1 - 13 of 13 | Results Per Page | View | Unit of Measure

Request Information Compare Items

Clear Filter

Module

Effective Number of Teeth

Shape

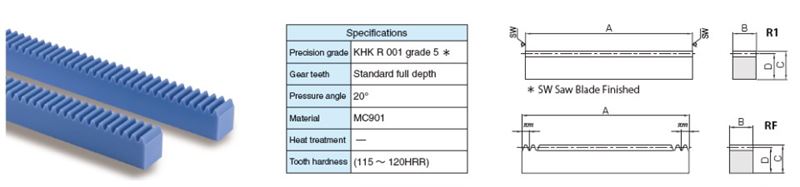

Total Length Rack (A) (in)

Total Length Rack (A) (mm)

Face Width (B) (in)

Face Width (B) (mm)

Height (C) (in)

Height (C) (mm)

Height To Pitch Line (D) (in)

Height To Pitch Line (D) (mm)

Item #	Sell Price	CAD	Module	Effective Number of Teeth	Shape	Total Length Rack (A)	Face Width (B)	Height (C)	Height To Pitch Line (D)	Internal ID	Sell Price 1 Value

PR1-500	$96.13	N/A	N/A 1	N/A 159	N/A R1	N/A 19.882 in505 mm	N/A 0.394 in10 mm	N/A 0.472 in12 mm	N/A 0.433 in11 mm	N/A 7859	96.13
PR1.5-1000	$9,876.54	N/A	N/A 1.5	N/A 212	N/A R1	N/A 39.764 in1010 mm	N/A 0.591 in15 mm	N/A 0.787 in20 mm	N/A 0.728 in18.5 mm	N/A 7860	9876.54
PR1.5-500	$115.79	N/A	N/A 1.5	N/A 105	N/A R1	N/A 19.882 in505 mm	N/A 0.591 in15 mm	N/A 0.787 in20 mm	N/A 0.728 in18.5 mm	N/A 7861	115.79
PRF1.5-1000	$217.21	N/A	N/A 1.5	N/A 212	N/A RF	N/A 39.332 in999.03 mm	N/A 0.591 in15 mm	N/A 0.787 in20 mm	N/A 0.728 in18.5 mm	N/A 7868	217.21
PR2-1000	$9,876.54	N/A	N/A 2	N/A 159	N/A R1	N/A 39.764 in1010 mm	N/A 0.787 in20 mm	N/A 0.984 in25 mm	N/A 0.906 in23 mm	N/A 7862	9876.54
PR2-500	$143.26	N/A	N/A 2	N/A 79	N/A R1	N/A 19.882 in505 mm	N/A 0.787 in20 mm	N/A 0.984 in25 mm	N/A 0.906 in23 mm	N/A 7863	143.26
PRF2-1000	$262.40	N/A	N/A 2	N/A 160	N/A RF	N/A 39.579 in1005.31 mm	N/A 0.787 in20 mm	N/A 0.984 in25 mm	N/A 0.906 in23 mm	N/A 7869	262.4
PR2.5-1000	$9,876.54	N/A	N/A 2.5	N/A 127	N/A R1	N/A 39.764 in1010 mm	N/A 0.984 in25 mm	N/A 1.181 in30 mm	N/A 1.083 in27.5 mm	N/A 7864	9876.54
PR2.5-500	$182.69	N/A	N/A 2.5	N/A 63	N/A R1	N/A 19.882 in505 mm	N/A 0.984 in25 mm	N/A 1.181 in30 mm	N/A 1.083 in27.5 mm	N/A 7865	182.69
PRF2.5-1000	$331.24	N/A	N/A 2.5	N/A 128	N/A RF	N/A 39.579 in1005.31 mm	N/A 0.984 in25 mm	N/A 1.181 in30 mm	N/A 1.083 in27.5 mm	N/A 7870	331.24
PR3-1000	$9,876.54	N/A	N/A 3	N/A 105	N/A R1	N/A 39.764 in1010 mm	N/A 1.181 in30 mm	N/A 1.378 in35 mm	N/A 1.260 in32 mm	N/A 7866	9876.54
PR3-500	$213.91	N/A	N/A 3	N/A 52	N/A R1	N/A 19.882 in505 mm	N/A 1.181 in30 mm	N/A 1.378 in35 mm	N/A 1.260 in32 mm	N/A 7867	213.91
PRF3-1000	$389.84	N/A	N/A 3	N/A 106	N/A RF	N/A 39.332 in999.03 mm	N/A 1.181 in30 mm	N/A 1.378 in35 mm	N/A 1.260 in32 mm	N/A 7871	389.84
