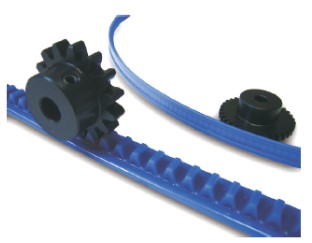

Molded Flexible Racks (DR)
Racks
Used in applications due to its flexibility, where metal racks do no have this attribute. Pinions and accessories are also available.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Item # |
Sell Price |
CAD |
Module |
Effective Number of Teeth |

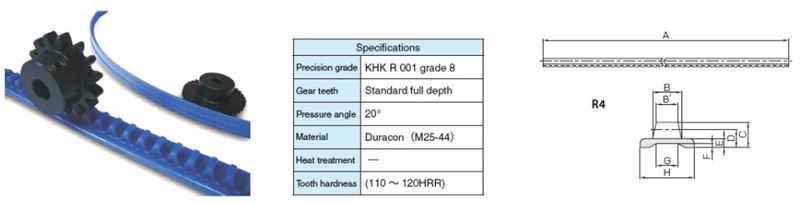

Total Length Rack (A) |
Face Width (B) |
Height to Pitch Line (D) |
Internal ID |
Sell Price 1 Value |
|---|---|---|---|---|---|---|---|---|---|
| DR0.8-2000 | $40.66 |
CAD
N/A
|
Module N/A 0.8 | Effective Number of Teeth N/A 792 | Total Length Rack (A) N/A 78.740 in2000 mm | Face Width (B) N/A 0.150 in3.8 mm | Height to Pitch Line (D) N/A 0.098 in2.5 mm |
Internal ID
N/A
2561 |
40.66 |
| DR1-2000 | $46.00 |
CAD
N/A
|
Module N/A 1 | Effective Number of Teeth N/A 633 | Total Length Rack (A) N/A 78.740 in2000 mm | Face Width (B) N/A 0.197 in5 mm | Height to Pitch Line (D) N/A 0.130 in3.3 mm |
Internal ID
N/A
2562 |
46 |
| DR1.5-2000 | $61.25 |
CAD
N/A
|
Module N/A 1.5 | Effective Number of Teeth N/A 422 | Total Length Rack (A) N/A 78.740 in2000 mm | Face Width (B) N/A 0.256 in6.5 mm | Height to Pitch Line (D) N/A 0.165 in4.2 mm |
Internal ID
N/A
2563 |
61.25 |
| DR2-2000 | $72.61 |
CAD
N/A
|
Module N/A 2 | Effective Number of Teeth N/A 316 | Total Length Rack (A) N/A 78.740 in2000 mm | Face Width (B) N/A 0.315 in8 mm | Height to Pitch Line (D) N/A 0.197 in5 mm |
Internal ID
N/A
2564 |
72.61 |
