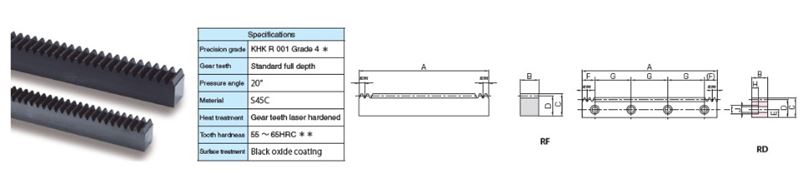

Laser Hardened Racks (SRF-HL/ SRFD-HL)


Email This Page Download PDF Download PDF Printable Page
Laser Hardened Racks (SRF-HL/ SRFD-HL) Racks
  • Laser-Hardened-Racks---SRF-HL--SRFD-HL-/Asset/Laser-Hardened-Racks---SRF-HL--SRFD-HL-.jpg
  • Laser-Hardened-Racks---SRF-HL--SRFD-HL-_Dim
  • Laser-Hardened-Racks---SRF-HL--SRFD-HL-/Asset/Laser-Hardened-Racks---SRF-HL--SRFD-HL-.jpg
  • Laser-Hardened-Racks---SRF-HL--SRFD-HL-_Dim

Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
1 - 25 of 42 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items
Clear Filter

Module

No. of teeth

Shape

Total Length Rack (A) (in)

Total Length Rack (A) (mm)

Face Width (B) (in)

Face Width (B) (mm)

Item #

Sell Price

CAD

Module

No. of teeth

Shape

Total Length Rack (A)

Face Width (B)

Height (C)

Height To Pitch Line (D)

Internal ID

Sell Price 1 Value

SRF1.5-1000HL $312.10 CAD N/A CAD Icon (for items table) Module N/A 1.5 No. of teeth N/A 212 Shape N/A RF Total Length Rack (A) N/A 39.332 in999.03 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.728 in18.5 mm Internal ID N/A
11205 		312.1
SRF1.5-1500HL $423.50 CAD N/A CAD Icon (for items table) Module N/A 1.5 No. of teeth N/A 320 Shape N/A RF Total Length Rack (A) N/A 59.369 in1507.96 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.728 in18.5 mm Internal ID N/A
11207 		423.5
SRF1.5-2000HL $530.10 CAD N/A CAD Icon (for items table) Module N/A 1.5 No. of teeth N/A 435 Shape N/A RF Total Length Rack (A) N/A 80.704 in2049.88 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.728 in18.5 mm Internal ID N/A
11209 		530.1
SRFD1.5-1000HLJ $364.20 CAD N/A Module N/A 1.5 No. of teeth N/A 212 Shape N/A RD Total Length Rack (A) N/A 39.332 in999.03 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.728 in18.5 mm Internal ID N/A
11268 		364.2
SRFD1.5-1500HLJ $486.30 CAD N/A Module N/A 1.5 No. of teeth N/A 320 Shape N/A RD Total Length Rack (A) N/A 59.369 in1507.96 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.728 in18.5 mm Internal ID N/A
11270 		486.3
SRFD1.5-2000HLJ $604.60 CAD N/A Module N/A 1.5 No. of teeth N/A 435 Shape N/A RD Total Length Rack (A) N/A 80.704 in2049.88 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.728 in18.5 mm Internal ID N/A
11272 		604.6
SRF2-1000HL $328.90 CAD N/A CAD Icon (for items table) Module N/A 2 No. of teeth N/A 160 Shape N/A RF Total Length Rack (A) N/A 39.579 in1005.31 mm Face Width (B) N/A 0.787 in20 mm Height (C) N/A 0.984 in25 mm Height To Pitch Line (D) N/A 0.906 in23 mm Internal ID N/A
11215 		328.9
SRF2-1500HL $446.70 CAD N/A CAD Icon (for items table) Module N/A 2 No. of teeth N/A 240 Shape N/A RF Total Length Rack (A) N/A 59.369 in1507.96 mm Face Width (B) N/A 0.787 in20 mm Height (C) N/A 0.984 in25 mm Height To Pitch Line (D) N/A 0.906 in23 mm Internal ID N/A
11217 		446.7
SRF2-2000HL $560.20 CAD N/A CAD Icon (for items table) Module N/A 2 No. of teeth N/A 326 Shape N/A RF Total Length Rack (A) N/A 80.642 in2048.31 mm Face Width (B) N/A 0.787 in20 mm Height (C) N/A 0.984 in25 mm Height To Pitch Line (D) N/A 0.906 in23 mm Internal ID N/A
11219 		560.2
SRFD2-1000HLJ $387.10 CAD N/A Module N/A 2 No. of teeth N/A 160 Shape N/A RD Total Length Rack (A) N/A 39.579 in1005.31 mm Face Width (B) N/A 0.787 in20 mm Height (C) N/A 0.984 in25 mm Height To Pitch Line (D) N/A 0.906 in23 mm Internal ID N/A
11277 		387.1
SRFD2-1500HLJ $519.00 CAD N/A Module N/A 2 No. of teeth N/A 240 Shape N/A RD Total Length Rack (A) N/A 59.369 in1507.96 mm Face Width (B) N/A 0.787 in20 mm Height (C) N/A 0.984 in25 mm Height To Pitch Line (D) N/A 0.906 in23 mm Internal ID N/A
11279 		519
SRFD2-2000HLJ $646.40 CAD N/A Module N/A 2 No. of teeth N/A 326 Shape N/A RD Total Length Rack (A) N/A 80.642 in2048.31 mm Face Width (B) N/A 0.787 in20 mm Height (C) N/A 0.984 in25 mm Height To Pitch Line (D) N/A 0.906 in23 mm Internal ID N/A
11281 		646.4
SRF2.5-1000HL $348.20 CAD N/A CAD Icon (for items table) Module N/A 2.5 No. of teeth N/A 128 Shape N/A RF Total Length Rack (A) N/A 39.579 in1005.31 mm Face Width (B) N/A 0.984 in25 mm Height (C) N/A 1.181 in30 mm Height To Pitch Line (D) N/A 1.083 in27.5 mm Internal ID N/A
11224 		348.2
SRF2.5-1500HL $498.80 CAD N/A CAD Icon (for items table) Module N/A 2.5 No. of teeth N/A 192 Shape N/A RF Total Length Rack (A) N/A 59.369 in1507.96 mm Face Width (B) N/A 0.984 in25 mm Height (C) N/A 1.181 in30 mm Height To Pitch Line (D) N/A 1.083 in27.5 mm Internal ID N/A
11226 		498.8
SRF2.5-2000HL $641.40 CAD N/A CAD Icon (for items table) Module N/A 2.5 No. of teeth N/A 261 Shape N/A RF Total Length Rack (A) N/A 80.704 in2049.88 mm Face Width (B) N/A 0.984 in25 mm Height (C) N/A 1.181 in30 mm Height To Pitch Line (D) N/A 1.083 in27.5 mm Internal ID N/A
11228 		641.4
SRFD2.5-1000HLJ $406.40 CAD N/A Module N/A 2.5 No. of teeth N/A 128 Shape N/A RD Total Length Rack (A) N/A 39.579 in1005.31 mm Face Width (B) N/A 0.984 in25 mm Height (C) N/A 1.181 in30 mm Height To Pitch Line (D) N/A 1.083 in27.5 mm Internal ID N/A
11286 		406.4
SRFD2.5-1500HLJ $562.60 CAD N/A Module N/A 2.5 No. of teeth N/A 192 Shape N/A RD Total Length Rack (A) N/A 59.369 in1507.96 mm Face Width (B) N/A 0.984 in25 mm Height (C) N/A 1.181 in30 mm Height To Pitch Line (D) N/A 1.083 in27.5 mm Internal ID N/A
11288 		562.6
SRFD2.5-2000HLJ $718.60 CAD N/A Module N/A 2.5 No. of teeth N/A 261 Shape N/A RD Total Length Rack (A) N/A 80.704 in2049.88 mm Face Width (B) N/A 0.984 in25 mm Height (C) N/A 1.181 in30 mm Height To Pitch Line (D) N/A 1.083 in27.5 mm Internal ID N/A
11290 		718.6
SRF3-1000HL $418.80 CAD N/A CAD Icon (for items table) Module N/A 3 No. of teeth N/A 106 Shape N/A RF Total Length Rack (A) N/A 39.332 in999.03 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.260 in32 mm Internal ID N/A
11233 		418.8
SRF3-1500HL $601.10 CAD N/A CAD Icon (for items table) Module N/A 3 No. of teeth N/A 160 Shape N/A RF Total Length Rack (A) N/A 59.369 in1507.96 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.260 in32 mm Internal ID N/A
11235 		601.1
SRF3-2000HL $780.20 CAD N/A CAD Icon (for items table) Module N/A 3 No. of teeth N/A 217 Shape N/A RF Total Length Rack (A) N/A 80.519 in2045.17 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.260 in32 mm Internal ID N/A
11237 		780.2
SRFD3-1000HLJ $485.80 CAD N/A Module N/A 3 No. of teeth N/A 106 Shape N/A RD Total Length Rack (A) N/A 39.332 in999.03 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.260 in32 mm Internal ID N/A
11295 		485.8
SRFD3-1500HLJ $684.80 CAD N/A Module N/A 3 No. of teeth N/A 160 Shape N/A RD Total Length Rack (A) N/A 59.369 in1507.96 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.260 in32 mm Internal ID N/A
11297 		684.8
SRFD3-2000HLJ $879.10 CAD N/A Module N/A 3 No. of teeth N/A 217 Shape N/A RD Total Length Rack (A) N/A 80.519 in2045.17 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.260 in32 mm Internal ID N/A
11299 		879.1
SRF4-1000HL $577.10 CAD N/A CAD Icon (for items table) Module N/A 4 No. of teeth N/A 80 Shape N/A RF Total Length Rack (A) N/A 39.579 in1005.31 mm Face Width (B) N/A 1.575 in40 mm Height (C) N/A 1.772 in45 mm Height To Pitch Line (D) N/A 1.614 in41 mm Internal ID N/A
11242 		577.1
1 - 25 of 42 | Results Per Page | View | Unit of Measure
1 2
*
