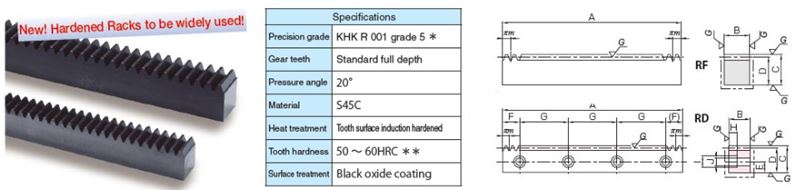

Hardened Racks (SRF-H/SRFD-H) On KHK Gears

Stable Hardened racks with high strength, long life span are reasonably priced. J Series products are also available.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.

1 - 14 of 14 | Results Per Page | View | Unit of Measure

Request Information Compare Items

Clear Filter

Module

Effective No. of Teeth

Shape

Total Length Rack (A) (in)

Total Length Rack (A) (mm)

Face Width (B) (in)

Face Width (B) (mm)

Height (C) (in)

Height (C) (mm)

Height To Pitch Line (D) (in)

Height To Pitch Line (D) (mm)

Item #	Sell Price	CAD	Module	Effective No. of Teeth	Shape	Total Length Rack (A)	Face Width (B)	Height (C)	Height To Pitch Line (D)	Internal ID	Sell Price 1 Value

SRF1.5-1000H	$314.60	N/A	N/A 1.5	N/A 212	N/A RF	N/A 39.332 in999.03 mm	N/A 0.591 in15 mm	N/A 0.787 in20 mm	N/A 0.728 in18.5 mm	N/A 11204	314.6
SRFD1.5-1000HJ	$366.70	N/A	N/A 1.5	N/A 212	N/A RD	N/A 39.332 in999.03 mm	N/A 0.591 in15 mm	N/A 0.787 in20 mm	N/A 0.728 in18.5 mm	N/A 11267	366.7
SRF2-1000H	$357.50	N/A	N/A 2	N/A 160	N/A RF	N/A 39.579 in1005.31 mm	N/A 0.787 in20 mm	N/A 0.984 in25 mm	N/A 0.906 in23 mm	N/A 11214	357.5
SRFD2-1000HJ	$415.30	N/A	N/A 2	N/A 160	N/A RD	N/A 39.579 in1005.31 mm	N/A 0.787 in20 mm	N/A 0.984 in25 mm	N/A 0.906 in23 mm	N/A 11276	415.3
SRF2.5-1000H	$407.60	N/A	N/A 2.5	N/A 128	N/A RF	N/A 39.579 in1005.31 mm	N/A 0.984 in25 mm	N/A 1.181 in30 mm	N/A 1.083 in27.5 mm	N/A 11223	407.6
SRFD2.5-1000HJ	$464.90	N/A	N/A 2.5	N/A 128	N/A RD	N/A 39.579 in1005.31 mm	N/A 0.984 in25 mm	N/A 1.181 in30 mm	N/A 1.083 in27.5 mm	N/A 11285	464.9
SRF3-1000H	$481.00	N/A	N/A 3	N/A 106	N/A RF	N/A 39.332 in999.03 mm	N/A 1.181 in30 mm	N/A 1.378 in35 mm	N/A 1.260 in32 mm	N/A 11232	481
SRFD3-1000HJ	$547.10	N/A	N/A 3	N/A 106	N/A RD	N/A 39.332 in999.03 mm	N/A 1.181 in30 mm	N/A 1.378 in35 mm	N/A 1.260 in32 mm	N/A 11294	547.1
SRF4-1000H	$637.70	N/A	N/A 4	N/A 80	N/A RF	N/A 39.579 in1005.31 mm	N/A 1.575 in40 mm	N/A 1.772 in45 mm	N/A 1.614 in41 mm	N/A 11241	637.7
SRFD4-1000HJ	$702.30	N/A	N/A 4	N/A 80	N/A RD	N/A 39.579 in1005.31 mm	N/A 1.575 in40 mm	N/A 1.772 in45 mm	N/A 1.614 in41 mm	N/A 11303	702.3
SRF5-1000H	$942.00	N/A	N/A 5	N/A 64	N/A RF	N/A 39.579 in1005.31 mm	N/A 1.969 in50 mm	N/A 1.969 in50 mm	N/A 1.772 in45 mm	N/A 11249	942
SRFD5-1000HJ	$1,006.40	N/A	N/A 5	N/A 64	N/A RD	N/A 39.579 in1005.31 mm	N/A 1.969 in50 mm	N/A 1.969 in50 mm	N/A 1.772 in45 mm	N/A 11311	1006.4
SRF6-1000H	$1,303.50	N/A	N/A 6	N/A 53	N/A RF	N/A 39.332 in999.03 mm	N/A 2.362 in60 mm	N/A 2.362 in60 mm	N/A 2.126 in54 mm	N/A 11257	1303.5
SRFD6-1000HJ	$1,369.70	N/A	N/A 6	N/A 53	N/A RD	N/A 39.332 in999.03 mm	N/A 2.362 in60 mm	N/A 2.362 in60 mm	N/A 2.126 in54 mm	N/A 11319	1369.7

1 - 14 of 14 | Results Per Page | View | Unit of Measure
