Hardened Ground Racks (SRG - SRGF - SRGFD - SRGFK)


Email This Page Download PDF Download PDF Printable Page

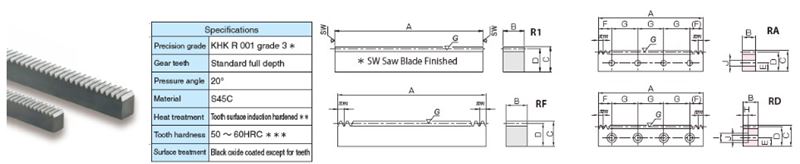

Hardened Ground Racks (SRG - SRGF - SRGFD - SRGFK) Racks
  • Hardened-Ground-Racks--SRG---SRGF---SRGFD---SRGFK-/Asset/Hardened-Ground-Racks--SRG---SRGF---SRGFD---SRGFK-.jpg
  • Hardened-Ground-Racks--SRG---SRGF---SRGFD---SRGFK-_Dim
  • Hardened-Ground-Racks--SRG---SRGF---SRGFD---SRGFK-/Asset/Hardened-Ground-Racks--SRG---SRGF---SRGFD---SRGFK-.jpg
  • Hardened-Ground-Racks--SRG---SRGF---SRGFD---SRGFK-_Dim
Reasonably priced ground racks with abrasion-resistant characteristics. J Series products are also available.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
1 - 25 of 46 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items Search by Specification
Clear Filter

Module

Effective No. of Teeth

Shape

Total Length Rack (A) (in)

Total Length Rack (A) (mm)

Face Width (B) (in)

Face Width (B) (mm)

Height (C) (in)

Height (C) (mm)

Height To Pitch Line (D) (in)

Height To Pitch Line (D) (mm)

Item #

Sell Price

CAD

Module

Effective No. of Teeth

Shape

Total Length Rack (A)

Face Width (B)

Height (C)

Height To Pitch Line (D)

Internal ID

Sell Price 1 Value

SRG0.5-100 $9,876.54 CAD N/A CAD Icon (for items table) Module N/A 0.5 Effective No. of Teeth N/A 61 Shape N/A R1 Total Length Rack (A) N/A 3.976 in101 mm Face Width (B) N/A 0.197 in5 mm Height (C) N/A 0.472 in12 mm Height To Pitch Line (D) N/A 0.453 in11.5 mm Internal ID N/A
11330 		9876.54
SRGF0.5-300 $9,876.54 CAD N/A CAD Icon (for items table) Module N/A 0.5 Effective No. of Teeth N/A 191 Shape N/A RF Total Length Rack (A) N/A 11.812 in300.02 mm Face Width (B) N/A 0.197 in5 mm Height (C) N/A 0.472 in12 mm Height To Pitch Line (D) N/A 0.453 in11.5 mm Internal ID N/A
11360 		9876.54
SRGFK0.5-300J $790.14 CAD N/A CAD Icon (for items table) Module N/A 0.5 Effective No. of Teeth N/A 191 Shape N/A RA Total Length Rack (A) N/A 11.812 in300.02 mm Face Width (B) N/A 0.197 in5 mm Height (C) N/A 0.472 in12 mm Height To Pitch Line (D) N/A 0.453 in11.5 mm Internal ID N/A
11392 		790.14
SRG0.8-100 $9,876.54 CAD N/A CAD Icon (for items table) Module N/A 0.8 Effective No. of Teeth N/A 38 Shape N/A R1 Total Length Rack (A) N/A 3.976 in101 mm Face Width (B) N/A 0.315 in8 mm Height (C) N/A 0.484 in12.3 mm Height To Pitch Line (D) N/A 0.453 in11.5 mm Internal ID N/A
11331 		9876.54
SRGF0.8-300 $9,876.54 CAD N/A CAD Icon (for items table) Module N/A 0.8 Effective No. of Teeth N/A 119 Shape N/A RF Total Length Rack (A) N/A 11.775 in299.08 mm Face Width (B) N/A 0.315 in8 mm Height (C) N/A 0.484 in12.3 mm Height To Pitch Line (D) N/A 0.453 in11.5 mm Internal ID N/A
11361 		9876.54
SRGFK0.8-300J $744.38 CAD N/A CAD Icon (for items table) Module N/A 0.8 Effective No. of Teeth N/A 119 Shape N/A RA Total Length Rack (A) N/A 11.775 in299.08 mm Face Width (B) N/A 0.315 in8 mm Height (C) N/A 0.484 in12.3 mm Height To Pitch Line (D) N/A 0.453 in11.5 mm Internal ID N/A
11393 		744.38
SRG1-100 $102.54 CAD N/A CAD Icon (for items table) Module N/A 1 Effective No. of Teeth N/A 29 Shape N/A R1 Total Length Rack (A) N/A 3.858 in98 mm Face Width (B) N/A 0.394 in10 mm Height (C) N/A 0.472 in12 mm Height To Pitch Line (D) N/A 0.433 in11 mm Internal ID N/A
11332 		102.54
SRGF1-300 $231.70 CAD N/A CAD Icon (for items table) Module N/A 1 Effective No. of Teeth N/A 96 Shape N/A RF Total Length Rack (A) N/A 11.874 in301.59 mm Face Width (B) N/A 0.394 in10 mm Height (C) N/A 0.472 in12 mm Height To Pitch Line (D) N/A 0.433 in11 mm Internal ID N/A
11362 		231.7
SRGF1-500 $371.53 CAD N/A CAD Icon (for items table) Module N/A 1 Effective No. of Teeth N/A 159 Shape N/A RF Total Length Rack (A) N/A 19.666 in499.51 mm Face Width (B) N/A 0.394 in10 mm Height (C) N/A 0.472 in12 mm Height To Pitch Line (D) N/A 0.433 in11 mm Internal ID N/A
11363 		371.53
SRGFK1-300J $277.50 CAD N/A CAD Icon (for items table) Module N/A 1 Effective No. of Teeth N/A 96 Shape N/A RA Total Length Rack (A) N/A 11.874 in301.59 mm Face Width (B) N/A 0.394 in10 mm Height (C) N/A 0.472 in12 mm Height To Pitch Line (D) N/A 0.433 in11 mm Internal ID N/A
11394 		277.5
SRGFK1-500J $414.30 CAD N/A CAD Icon (for items table) Module N/A 1 Effective No. of Teeth N/A 159 Shape N/A RA Total Length Rack (A) N/A 19.666 in499.51 mm Face Width (B) N/A 0.394 in10 mm Height (C) N/A 0.472 in12 mm Height To Pitch Line (D) N/A 0.433 in11 mm Internal ID N/A
11395 		414.3
SRG1.5-100 $89.99 CAD N/A CAD Icon (for items table) Module N/A 1.5 Effective No. of Teeth N/A 20 Shape N/A R1 Total Length Rack (A) N/A 3.976 in101 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.728 in18.5 mm Internal ID N/A
11333 		89.99
SRGF1.5-1000 $734.81 CAD N/A CAD Icon (for items table) Module N/A 1.5 Effective No. of Teeth N/A 212 Shape N/A RF Total Length Rack (A) N/A 39.332 in999.03 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.728 in18.5 mm Internal ID N/A
11364 		734.81
SRGF1.5-500 $399.41 CAD N/A CAD Icon (for items table) Module N/A 1.5 Effective No. of Teeth N/A 106 Shape N/A RF Total Length Rack (A) N/A 19.666 in499.51 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.728 in18.5 mm Internal ID N/A
11365 		399.41
SRGFD1.5-1000J $792.70 CAD N/A CAD Icon (for items table) Module N/A 1.5 Effective No. of Teeth N/A 212 Shape N/A RD Total Length Rack (A) N/A 39.332 in999.03 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.728 in18.5 mm Internal ID N/A
11378 		792.7
SRGFD1.5-500J $450.90 CAD N/A CAD Icon (for items table) Module N/A 1.5 Effective No. of Teeth N/A 106 Shape N/A RD Total Length Rack (A) N/A 19.666 in499.51 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.728 in18.5 mm Internal ID N/A
11379 		450.9
SRG2-100 $96.69 CAD N/A CAD Icon (for items table) Module N/A 2 Effective No. of Teeth N/A 14 Shape N/A R1 Total Length Rack (A) N/A 3.858 in98 mm Face Width (B) N/A 0.787 in20 mm Height (C) N/A 0.984 in25 mm Height To Pitch Line (D) N/A 0.906 in23 mm Internal ID N/A
11334 		96.69
SRGF2-1000 $771.85 CAD N/A CAD Icon (for items table) Module N/A 2 Effective No. of Teeth N/A 160 Shape N/A RF Total Length Rack (A) N/A 39.579 in1005.31 mm Face Width (B) N/A 0.787 in20 mm Height (C) N/A 0.984 in25 mm Height To Pitch Line (D) N/A 0.906 in23 mm Internal ID N/A
11366 		771.85
SRGF2-500 $413.24 CAD N/A CAD Icon (for items table) Module N/A 2 Effective No. of Teeth N/A 80 Shape N/A RF Total Length Rack (A) N/A 19.789 in502.65 mm Face Width (B) N/A 0.787 in20 mm Height (C) N/A 0.984 in25 mm Height To Pitch Line (D) N/A 0.906 in23 mm Internal ID N/A
11367 		413.24
SRGFD2-1000J $837.80 CAD N/A CAD Icon (for items table) Module N/A 2 Effective No. of Teeth N/A 160 Shape N/A RD Total Length Rack (A) N/A 39.579 in1005.31 mm Face Width (B) N/A 0.787 in20 mm Height (C) N/A 0.984 in25 mm Height To Pitch Line (D) N/A 0.906 in23 mm Internal ID N/A
11380 		837.8
SRGFD2-500J $473.00 CAD N/A CAD Icon (for items table) Module N/A 2 Effective No. of Teeth N/A 80 Shape N/A RD Total Length Rack (A) N/A 19.789 in502.65 mm Face Width (B) N/A 0.787 in20 mm Height (C) N/A 0.984 in25 mm Height To Pitch Line (D) N/A 0.906 in23 mm Internal ID N/A
11381 		473
SRG2.5-100 $103.89 CAD N/A CAD Icon (for items table) Module N/A 2.5 Effective No. of Teeth N/A 11 Shape N/A R1 Total Length Rack (A) N/A 3.937 in100 mm Face Width (B) N/A 0.984 in25 mm Height (C) N/A 1.181 in30 mm Height To Pitch Line (D) N/A 1.083 in27.5 mm Internal ID N/A
11335 		103.89
SRGF2.5-1000 $833.55 CAD N/A CAD Icon (for items table) Module N/A 2.5 Effective No. of Teeth N/A 128 Shape N/A RF Total Length Rack (A) N/A 39.579 in1005.31 mm Face Width (B) N/A 0.984 in25 mm Height (C) N/A 1.181 in30 mm Height To Pitch Line (D) N/A 1.083 in27.5 mm Internal ID N/A
11368 		833.55
SRGF2.5-500 $439.42 CAD N/A CAD Icon (for items table) Module N/A 2.5 Effective No. of Teeth N/A 64 Shape N/A RF Total Length Rack (A) N/A 19.789 in502.65 mm Face Width (B) N/A 0.984 in25 mm Height (C) N/A 1.181 in30 mm Height To Pitch Line (D) N/A 1.083 in27.5 mm Internal ID N/A
11369 		439.42
SRGFD2.5-1000J $898.50 CAD N/A CAD Icon (for items table) Module N/A 2.5 Effective No. of Teeth N/A 128 Shape N/A RD Total Length Rack (A) N/A 39.579 in1005.31 mm Face Width (B) N/A 0.984 in25 mm Height (C) N/A 1.181 in30 mm Height To Pitch Line (D) N/A 1.083 in27.5 mm Internal ID N/A
11382 		898.5
