Hardened Ground Racks (MRGF - MRGFD)
Racks

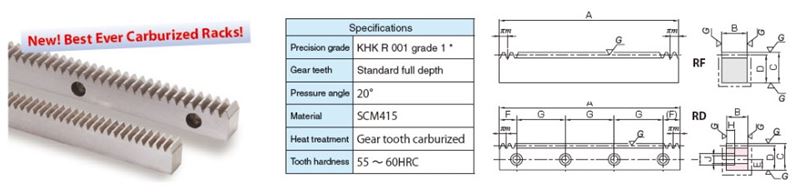

Has the highest strength and precision in the KHK standard rack series. Bolt holes can be remachined as carburizing is applied only within the tooth area. J Series products are also available.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Item # |
Sell Price |
CAD |
Module |
Effective No. of Teeth |
Shape |
Total Length Rack (A) |
Face Width (B) |
Height (C) |
Height To Pitch Line (D) |
Internal ID |
Sell Price 1 Value |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MRGFD1.5-500J | $925.00 |
CAD
N/A
|
Module N/A 1.5 | Effective No. of Teeth N/A 106 | Shape N/A RD | Total Length Rack (A) N/A 19.666 in499.51 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.787 in20 mm | Height To Pitch Line (D) N/A 0.728 in18.5 mm |
Internal ID
N/A
6390 |
925 |
| MRGF2-500 | $910.21 |
CAD
N/A
|
Module N/A 2 | Effective No. of Teeth N/A 80 | Shape N/A RF | Total Length Rack (A) N/A 19.789 in502.65 mm | Face Width (B) N/A 0.787 in20 mm | Height (C) N/A 0.984 in25 mm | Height To Pitch Line (D) N/A 0.906 in23 mm |
Internal ID
N/A
6387 |
910.21 |
| MRGFD2-500J | $966.20 |
CAD
N/A
|
Module N/A 2 | Effective No. of Teeth N/A 80 | Shape N/A RD | Total Length Rack (A) N/A 19.789 in502.65 mm | Face Width (B) N/A 0.787 in20 mm | Height (C) N/A 0.984 in25 mm | Height To Pitch Line (D) N/A 0.906 in23 mm |
Internal ID
N/A
6391 |
966.2 |
| MRGF2.5-500 | $1,026.05 |
CAD
N/A
|
Module N/A 2.5 | Effective No. of Teeth N/A 64 | Shape N/A RF | Total Length Rack (A) N/A 19.789 in502.65 mm | Face Width (B) N/A 0.984 in25 mm | Height (C) N/A 1.181 in30 mm | Height To Pitch Line (D) N/A 1.083 in27.5 mm |
Internal ID
N/A
6388 |
1026.05 |
| MRGFD2.5-500J | $1,081.70 |
CAD
N/A
|
Module N/A 2.5 | Effective No. of Teeth N/A 64 | Shape N/A RD | Total Length Rack (A) N/A 19.789 in502.65 mm | Face Width (B) N/A 0.984 in25 mm | Height (C) N/A 1.181 in30 mm | Height To Pitch Line (D) N/A 1.083 in27.5 mm |
Internal ID
N/A
6392 |
1081.7 |
| MRGF3-500 | $1,227.06 |
CAD
N/A
|
Module N/A 3 | Effective No. of Teeth N/A 53 | Shape N/A RF | Total Length Rack (A) N/A 19.666 in499.51 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.378 in35 mm | Height To Pitch Line (D) N/A 1.260 in32 mm |
Internal ID
N/A
6389 |
1227.06 |
| MRGFD3-500J | $1,290.30 |
CAD
N/A
|
Module N/A 3 | Effective No. of Teeth N/A 53 | Shape N/A RD | Total Length Rack (A) N/A 19.666 in499.51 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.378 in35 mm | Height To Pitch Line (D) N/A 1.260 in32 mm |
Internal ID
N/A
6393 |
1290.3 |
