Hardened Ground Helical Racks (ZST)
Racks
Gear teeth are induction hardened for durability, and are also standardized for easier connection.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Clear
Filter

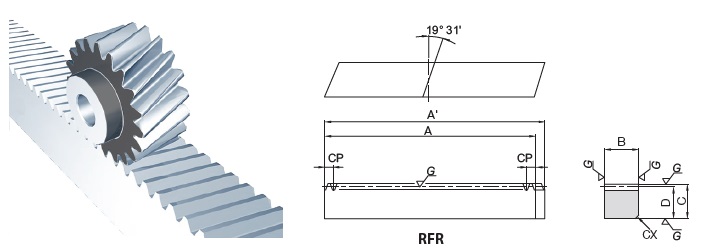

Module
Effective No. of Teeth
Total Length (A) (in)
Total Length (A) (mm)
Face Width (B) (in)
Face Width (B) (mm)
Height (C) (in)
Height (C) (mm)
Height To Pitch Line (D) (in)
Height To Pitch Line (D) (mm)
Item # |
Sell Price |
CAD |
Module |
Effective No. of Teeth |
Total Length (A) |
Face Width (B) |
Height (C) |
Height To Pitch Line (D) |
Internal ID |
Sell Price 1 Value |
|---|---|---|---|---|---|---|---|---|---|---|
| ZST2-1000R | $1,028.38 | CAD N/A | Module N/A 2 | Effective No. of Teeth N/A 150 | Total Length (A) N/A 39.705 in1008.51 mm | Face Width (B) N/A 0.945 in24 mm | Height (C) N/A 0.945 in24 mm | Height To Pitch Line (D) N/A 0.866 in22 mm |
Internal ID
N/A
31505 |
1028.38 |
| ZST2-2000R | $1,695.30 | CAD N/A | Module N/A 2 | Effective No. of Teeth N/A 300 | Total Length (A) N/A 79.076 in2008.52 mm | Face Width (B) N/A 0.945 in24 mm | Height (C) N/A 0.945 in24 mm | Height To Pitch Line (D) N/A 0.866 in22 mm |
Internal ID
N/A
31506 |
1695.3 |
| ZST3-1000R | $1,140.87 | CAD N/A | Module N/A 3 | Effective No. of Teeth N/A 100 | Total Length (A) N/A 39.775 in1010.29 mm | Face Width (B) N/A 1.142 in29 mm | Height (C) N/A 1.142 in29 mm | Height To Pitch Line (D) N/A 1.024 in26 mm |
Internal ID
N/A
31508 |
1140.87 |
| ZST3-2000R | $1,890.57 | CAD N/A | Module N/A 3 | Effective No. of Teeth N/A 200 | Total Length (A) N/A 79.145 in2010.29 mm | Face Width (B) N/A 1.142 in29 mm | Height (C) N/A 1.142 in29 mm | Height To Pitch Line (D) N/A 1.024 in26 mm |
Internal ID
N/A
31509 |
1890.57 |
| ZST4-1000R | $1,323.88 | CAD N/A | Module N/A 4 | Effective No. of Teeth N/A 75 | Total Length (A) N/A 39.915 in1013.83 mm | Face Width (B) N/A 1.535 in39 mm | Height (C) N/A 1.535 in39 mm | Height To Pitch Line (D) N/A 1.378 in35 mm |
Internal ID
N/A
31511 |
1323.88 |
| ZST4-2000R | $2,216.94 | CAD N/A | Module N/A 4 | Effective No. of Teeth N/A 150 | Total Length (A) N/A 79.285 in2013.83 mm | Face Width (B) N/A 1.535 in39 mm | Height (C) N/A 1.535 in39 mm | Height To Pitch Line (D) N/A 1.378 in35 mm |
Internal ID
N/A
31512 |
2216.94 |
| ZST5-1000R | $1,683.12 | CAD N/A | Module N/A 5 | Effective No. of Teeth N/A 60 | Total Length (A) N/A 40.054 in1017.38 mm | Face Width (B) N/A 1.929 in49 mm | Height (C) N/A 1.535 in39 mm | Height To Pitch Line (D) N/A 1.339 in34 mm |
Internal ID
N/A
31514 |
1683.12 |
| ZST6-1000R | $1,909.28 | CAD N/A | Module N/A 6 | Effective No. of Teeth N/A 50 | Total Length (A) N/A 40.194 in1020.93 mm | Face Width (B) N/A 2.323 in59 mm | Height (C) N/A 1.929 in49 mm | Height To Pitch Line (D) N/A 1.693 in43 mm |
Internal ID
N/A
31516 |
1909.28 |
