Flexible Rack Guide Rails (ARL) On KHK Gears

Free Delivery

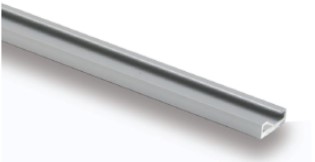

Guide Rails for Molder Flexible Racks
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.

1 - 4 of 4 | Results Per Page | View | Unit of Measure

Request Information Compare Items

Clear Filter

A (in)

A (mm)

B (in)

B (mm)

C (in)

C (mm)

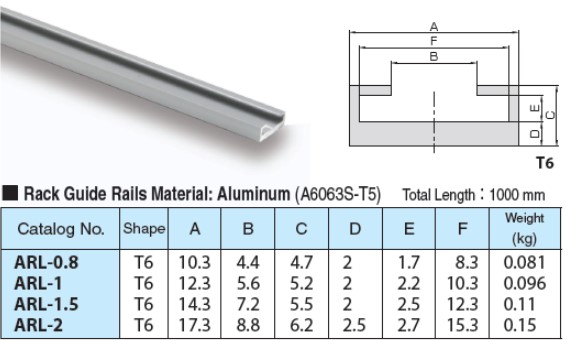

Item #	Sell Price	CAD	Construction	A	B	C	D	Internal ID	Sell Price 1 Value

ARL-0.8	$22.83	N/A	N/A Guide Rails	N/A 0.406 in10.3 mm	N/A 0.173 in4.4 mm	N/A 0.185 in4.7 mm	N/A 0.079 in2 mm	N/A 1419	22.83
ARL-1	$24.96	N/A	N/A Guide Rails	N/A 0.484 in12.3 mm	N/A 0.220 in5.6 mm	N/A 0.205 in5.2 mm	N/A 0.079 in2 mm	N/A 1420	24.96
ARL-1.5	$25.87	N/A	N/A Guide Rails	N/A 0.563 in14.3 mm	N/A 0.283 in7.2 mm	N/A 0.217 in5.5 mm	N/A 0.079 in2 mm	N/A 1421	25.87
ARL-2	$29.86	N/A	N/A Guide Rails	N/A 0.681 in17.3 mm	N/A 0.346 in8.8 mm	N/A 0.244 in6.2 mm	N/A 0.098 in2.5 mm	N/A 1422	29.86

1 - 4 of 4 | Results Per Page | View | Unit of Measure
