Brass Racks (BSR)
Racks

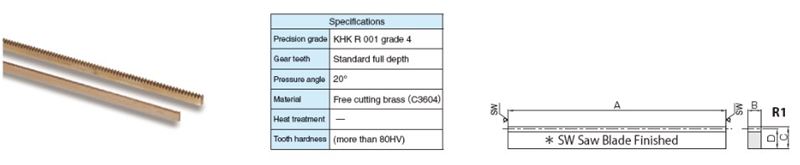

Small pitch racks made of free-cutting brass, excellent workability and high rust resistance.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Item # |
Sell Price |
CAD |
Module |
Effective Number of Teeth |
Shape |
Total Length Rack (A) |
Face Width (B) |
Height (C) |
Height To Pitch Line (D) |
Internal ID |
Sell Price 1 Value |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BSR0.5-300 | $29.22 |
CAD
N/A
|
Module N/A 0.5 | Effective Number of Teeth N/A 190 | Shape N/A R1 | Total Length Rack (A) N/A 11.929 in303 mm | Face Width (B) N/A 0.118 in3 mm | Height (C) N/A 0.354 in9 mm | Height To Pitch Line (D) N/A 0.335 in8.5 mm |
Internal ID
N/A
1629 |
29.22 |
| BSR0.8-300 | $37.33 |
CAD
N/A
|
Module N/A 0.8 | Effective Number of Teeth N/A 118 | Shape N/A R1 | Total Length Rack (A) N/A 11.929 in303 mm | Face Width (B) N/A 0.157 in4 mm | Height (C) N/A 0.394 in10 mm | Height To Pitch Line (D) N/A 0.362 in9.2 mm |
Internal ID
N/A
1630 |
37.33 |
| BSR1-300 | $44.18 |
CAD
N/A
|
Module N/A 1 | Effective Number of Teeth N/A 94 | Shape N/A R1 | Total Length Rack (A) N/A 11.929 in303 mm | Face Width (B) N/A 0.236 in6 mm | Height (C) N/A 0.394 in10 mm | Height To Pitch Line (D) N/A 0.354 in9 mm |
Internal ID
N/A
1631 |
44.18 |
| BSR1.25-300 | $9,876.54 | CAD N/A | Module N/A 1.25 | Effective Number of Teeth N/A | Shape N/A R1 | Total Length Rack (A) N/A | Face Width (B) N/A | Height (C) N/A | Height To Pitch Line (D) N/A |
Internal ID
N/A
1632 |
9876.54 |
