Assembly Gauges (ZST-GL)
Racks
SV and SVI series are made according to the automotive involute spline standard; Involute spline shafts and bushings are thermal refined to have good abrasion-resistance.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Clear
Filter
Module
Effective No. of Teeth

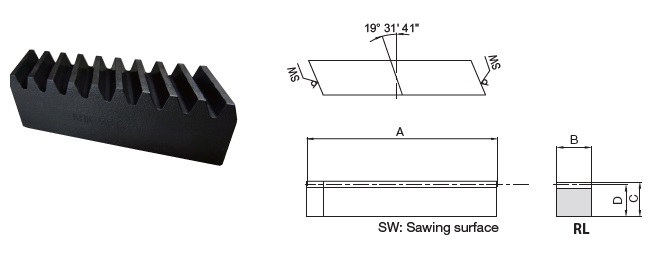

Total Length Rack (A) (in)
Total Length Rack (A) (mm)
Face Width (B) (in)
Face Width (B) (mm)
Height (C) (in)
Height (C) (mm)
Height To Pitch Line (D) (in)
Height To Pitch Line (D) (mm)
Item # |
Sell Price |
CAD |
Module |
Effective No. of Teeth |
Total Length Rack (A) |
Face Width (B) |
Height (C) |
Height To Pitch Line (D) |
Internal ID |
Sell Price 1 Value |
|---|---|---|---|---|---|---|---|---|---|---|
| ZST1.5-GL | $29.77 | CAD N/A | Module N/A 1.5 | Effective No. of Teeth N/A 9 | Total Length Rack (A) N/A 2.323 in59 mm | Face Width (B) N/A 0.669 in17 mm | Height (C) N/A 0.669 in17 mm | Height To Pitch Line (D) N/A 0.610 in15.5 mm |
Internal ID
N/A
31504 |
29.77 |
| ZST2-GL | $49.67 | CAD N/A | Module N/A 2 | Effective No. of Teeth N/A 7 | Total Length Rack (A) N/A 2.598 in66 mm | Face Width (B) N/A 0.984 in25 mm | Height (C) N/A 0.984 in25 mm | Height To Pitch Line (D) N/A 0.906 in23 mm |
Internal ID
N/A
31507 |
49.67 |
| ZST3-GL | $95.76 | CAD N/A | Module N/A 3 | Effective No. of Teeth N/A 8 | Total Length Rack (A) N/A 4.252 in108 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.181 in30 mm | Height To Pitch Line (D) N/A 1.063 in27 mm |
Internal ID
N/A
31510 |
95.76 |
| ZST4-GL | $115.06 | CAD N/A | Module N/A 4 | Effective No. of Teeth N/A 6 | Total Length Rack (A) N/A 4.646 in118 mm | Face Width (B) N/A 1.575 in40 mm | Height (C) N/A 1.575 in40 mm | Height To Pitch Line (D) N/A 1.417 in36 mm |
Internal ID
N/A
31513 |
115.06 |
| ZST5-GL | $142.62 | CAD N/A | Module N/A 5 | Effective No. of Teeth N/A 4 | Total Length Rack (A) N/A 4.528 in115 mm | Face Width (B) N/A 1.969 in50 mm | Height (C) N/A 1.969 in50 mm | Height To Pitch Line (D) N/A 1.772 in45 mm |
Internal ID
N/A
31515 |
142.62 |
| ZST6-GL | $182.86 | CAD N/A | Module N/A 6 | Effective No. of Teeth N/A 3 | Total Length Rack (A) N/A 4.685 in119 mm | Face Width (B) N/A 2.362 in60 mm | Height (C) N/A 2.362 in60 mm | Height To Pitch Line (D) N/A 2.126 in54 mm |
Internal ID
N/A
31517 |
182.86 |
