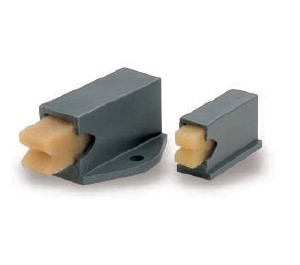

Lubricator for Ring Rail Gear
Other Products
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Item # |
Sell Price |
Type |
Use With |
A |
B |
C |
Sell Price 1 Value |
Internal ID |
|---|---|---|---|---|---|---|---|---|
| LB-20C | $99.04 | Type N/A Compact | Use With N/A Ring Gear R20 | A N/A 8 mm0.315 in | B N/A 12 mm0.472 in | C N/A 22.5 mm0.886 in | 99.04 | Internal ID N/A 36878 |
| LB-20F | $100.85 | Type N/A Flange | Use With N/A Ring Gear R20 | A N/A 19 mm0.748 in | B N/A 12 mm0.472 in | C N/A 22.5 mm0.886 in | 100.85 | Internal ID N/A 36879 |
| LB-25C | $62.45 | Type N/A Compact | Use With N/A Ring Gear R25 | A N/A 12 mm0.472 in | B N/A 16.5 mm0.650 in | C N/A 28 mm1.102 in | 62.45 | Internal ID N/A 33124 |
| LB-25F | $62.46 | Type N/A Flange | Use With N/A Ring Gear R25 | A N/A 25 mm0.984 in | B N/A 16.5 mm0.650 in | C N/A 28 mm1.102 in | 62.46 | Internal ID N/A 33125 |
| LB-44C | $64.22 | Type N/A Compact | Use With N/A Ring Gear R44 | A N/A 17 mm0.669 in | B N/A 20 mm0.787 in | C N/A 38 mm1.496 in | 64.22 | Internal ID N/A 33126 |
| LB-44F | $64.24 | Type N/A Flange | Use With N/A Ring Gear R44 | A N/A 34 mm1.339 in | B N/A 20 mm0.787 in | C N/A 38 mm1.496 in | 64.24 | Internal ID N/A 33127 |
| LB-76C | $150.27 | Type N/A Compact | Use With N/A Ring Gear R76 | A N/A 25 mm0.984 in | B N/A 33.5 mm1.319 in | C N/A 57 mm2.244 in | 150.27 | Internal ID N/A 69314 |
| LB-76F | $153.75 | Type N/A Flange | Use With N/A Ring Gear R76 | A N/A 50 mm1.969 in | B N/A 33.5 mm1.319 in | C N/A 57 mm2.244 in | 153.75 | Internal ID N/A 69315 |
