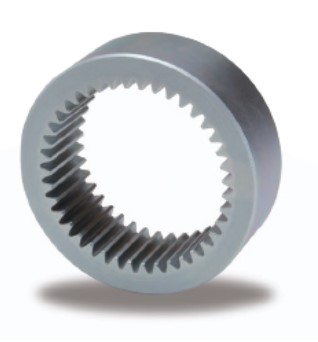

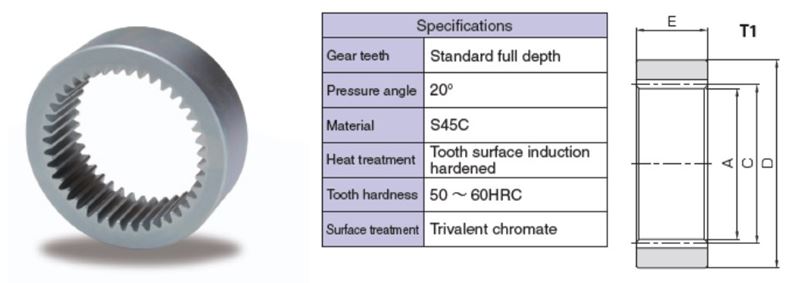

Gear Couplings (Outer ring) (GC-I)
Other Products
Phosphorous bronze worm wheels have excellent wear resistance. Interchangeable with CG Worm Wheels, and enhances strength.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Item # |
Sell Price |
CAD |
Module |
No. of teeth |
Internal Diameter (A) |
Pitch Diameter (C) |
Outer Diameter (D) |
Internal ID |
Sell Price 1 Value |
|---|---|---|---|---|---|---|---|---|---|
| GC1-I | $70.41 |
CAD
N/A
|
Module N/A 2 | No. of teeth N/A 25 | Internal Diameter (A) N/A 1.811 in46 mm | Pitch Diameter (C) N/A 1.969 in50 mm | Outer Diameter (D) N/A 2.677 in68 mm |
Internal ID
N/A
2761 |
70.41 |
| GC2-I | $140.16 |
CAD
N/A
|
Module N/A 2 | No. of teeth N/A 40 | Internal Diameter (A) N/A 2.992 in76 mm | Pitch Diameter (C) N/A 3.150 in80 mm | Outer Diameter (D) N/A 4.134 in105 mm |
Internal ID
N/A
2775 |
140.16 |
| GC3-I | $269.10 |
CAD
N/A
|
Module N/A 2.5 | No. of teeth N/A 42 | Internal Diameter (A) N/A 3.937 in100 mm | Pitch Diameter (C) N/A 4.134 in105 mm | Outer Diameter (D) N/A 5.709 in145 mm |
Internal ID
N/A
2789 |
269.1 |
