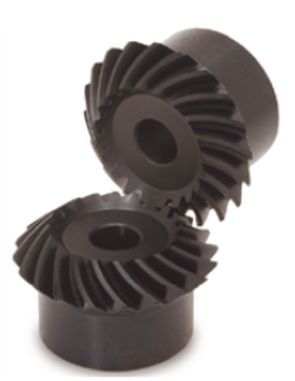

Spiral Miter Gears (SMS)
Miter Gears
Suitable for food machinery due to SUS304 material’s rust-resistant quality.
Item # |
Sell Price |
CAD |
Module |
No. of Teeth |
Shape |
Bore (A) |
Pitch Diameter (C) |
Outer Diameter (D) |
Internal ID |
Sell Price 1 Value |
|---|---|---|---|---|---|---|---|---|---|---|
| SMS1-20L | $25.22 |
CAD
N/A
|
Module N/A 1 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 0.787 in20 mm | Outer Diameter (D) N/A 0.839 in21.3 mm |
Internal ID
N/A
10193 |
25.22 |
| SMS1-20R | $25.22 |
CAD
N/A
|
Module N/A 1 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 0.787 in20 mm | Outer Diameter (D) N/A 0.839 in21.3 mm |
Internal ID
N/A
10194 |
25.22 |
| SMS1-25L | $28.36 |
CAD
N/A
|
Module N/A 1 | No. of Teeth N/A 25 | Shape N/A B3 | Bore (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 0.984 in25 mm | Outer Diameter (D) N/A 1.032 in26.22 mm |
Internal ID
N/A
10195 |
28.36 |
| SMS1-25R | $28.36 |
CAD
N/A
|
Module N/A 1 | No. of Teeth N/A 25 | Shape N/A B3 | Bore (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 0.984 in25 mm | Outer Diameter (D) N/A 1.032 in26.22 mm |
Internal ID
N/A
10196 |
28.36 |
| SMS1-30L | $37.85 |
CAD
N/A
|
Module N/A 1 | No. of Teeth N/A 30 | Shape N/A B3 | Bore (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.231 in31.26 mm |
Internal ID
N/A
10197 |
37.85 |
| SMS1-30R | $37.85 |
CAD
N/A
|
Module N/A 1 | No. of Teeth N/A 30 | Shape N/A B3 | Bore (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.231 in31.26 mm |
Internal ID
N/A
10198 |
37.85 |
| SMS1-20LJ8 | $58.00 | CAD N/A | Module N/A 1 | No. of Teeth N/A 20 | Shape N/A B3T | Bore (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 0.787 in20 mm | Outer Diameter (D) N/A 0.839 in21.3 mm |
Internal ID
N/A
69997 |
58 |
| SMS1-20RJ8 | $58.00 | CAD N/A | Module N/A 1 | No. of Teeth N/A 20 | Shape N/A B3T | Bore (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 0.787 in20 mm | Outer Diameter (D) N/A 0.839 in21.3 mm |
Internal ID
N/A
69998 |
58 |
| SMS1-25LJ8 | $61.00 | CAD N/A | Module N/A 1 | No. of Teeth N/A 25 | Shape N/A B3T | Bore (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 0.984 in25 mm | Outer Diameter (D) N/A 1.032 in26.22 mm |
Internal ID
N/A
69999 |
61 |
| SMS1-25RJ8 | $61.00 | CAD N/A | Module N/A 1 | No. of Teeth N/A 25 | Shape N/A B3T | Bore (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 0.984 in25 mm | Outer Diameter (D) N/A 1.032 in26.22 mm |
Internal ID
N/A
70000 |
61 |
| SMS1.25-20L | $9,876.54 | CAD N/A | Module N/A 1.25 | No. of Teeth N/A 20 | Shape N/A | Bore (A) N/A | Pitch Diameter (C) N/A | Outer Diameter (D) N/A |
Internal ID
N/A
10199 |
9876.54 |
| SMS1.25-20R | $9,876.54 | CAD N/A | Module N/A 1.25 | No. of Teeth N/A 20 | Shape N/A | Bore (A) N/A | Pitch Diameter (C) N/A | Outer Diameter (D) N/A |
Internal ID
N/A
10200 |
9876.54 |
| SMS1.25-25L | $9,876.54 | CAD N/A | Module N/A 1.25 | No. of Teeth N/A 25 | Shape N/A | Bore (A) N/A | Pitch Diameter (C) N/A | Outer Diameter (D) N/A |
Internal ID
N/A
10201 |
9876.54 |
| SMS1.25-25R | $9,876.54 | CAD N/A | Module N/A 1.25 | No. of Teeth N/A 25 | Shape N/A | Bore (A) N/A | Pitch Diameter (C) N/A | Outer Diameter (D) N/A |
Internal ID
N/A
10202 |
9876.54 |
| SMS1.25-30L | $9,876.54 | CAD N/A | Module N/A 1.25 | No. of Teeth N/A 30 | Shape N/A | Bore (A) N/A | Pitch Diameter (C) N/A | Outer Diameter (D) N/A |
Internal ID
N/A
10203 |
9876.54 |
| SMS1.25-30R | $9,876.54 | CAD N/A | Module N/A 1.25 | No. of Teeth N/A 30 | Shape N/A | Bore (A) N/A | Pitch Diameter (C) N/A | Outer Diameter (D) N/A |
Internal ID
N/A
10204 |
9876.54 |
| SMS1.5-20L | $29.52 |
CAD
N/A
|
Module N/A 1.5 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.250 in31.74 mm |
Internal ID
N/A
10205 |
29.52 |
| SMS1.5-20R | $29.52 |
CAD
N/A
|
Module N/A 1.5 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.250 in31.74 mm |
Internal ID
N/A
10206 |
29.52 |
| SMS1.5-25L | $36.95 |
CAD
N/A
|
Module N/A 1.5 | No. of Teeth N/A 25 | Shape N/A B3 | Bore (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.476 in37.5 mm | Outer Diameter (D) N/A 1.548 in39.31 mm |
Internal ID
N/A
10207 |
36.95 |
| SMS1.5-25R | $36.95 |
CAD
N/A
|
Module N/A 1.5 | No. of Teeth N/A 25 | Shape N/A B3 | Bore (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.476 in37.5 mm | Outer Diameter (D) N/A 1.548 in39.31 mm |
Internal ID
N/A
10208 |
36.95 |
| SMS1.5-30L | $51.06 |
CAD
N/A
|
Module N/A 1.5 | No. of Teeth N/A 30 | Shape N/A B3 | Bore (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.772 in45 mm | Outer Diameter (D) N/A 1.844 in46.84 mm |
Internal ID
N/A
10209 |
51.06 |
| SMS1.5-30R | $51.06 |
CAD
N/A
|
Module N/A 1.5 | No. of Teeth N/A 30 | Shape N/A B3 | Bore (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.772 in45 mm | Outer Diameter (D) N/A 1.844 in46.84 mm |
Internal ID
N/A
10210 |
51.06 |
| SMS1.5-20LJ10 | $73.90 | CAD N/A | Module N/A 1.5 | No. of Teeth N/A 20 | Shape N/A B3K | Bore (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.250 in31.74 mm |
Internal ID
N/A
69991 |
73.9 |
| SMS1.5-20RJ10 | $73.90 | CAD N/A | Module N/A 1.5 | No. of Teeth N/A 20 | Shape N/A B3K | Bore (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.250 in31.74 mm |
Internal ID
N/A
69992 |
73.9 |
| SMS1.5-25LJ12 | $80.60 | CAD N/A | Module N/A 1.5 | No. of Teeth N/A 25 | Shape N/A B3K | Bore (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.476 in37.5 mm | Outer Diameter (D) N/A 1.548 in39.31 mm |
Internal ID
N/A
69993 |
80.6 |
