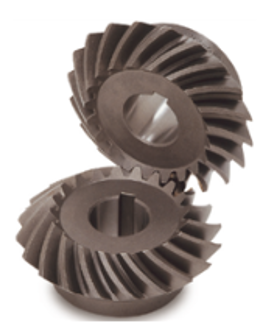

Spiral Miter Gears (MMSA·MMSB) On KHK Gears

Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.

1 - 25 of 40 | Results Per Page | View | Unit of Measure

1 2

Request Information Compare Items Search by Specification

Clear Filter

Module

No. of Teeth

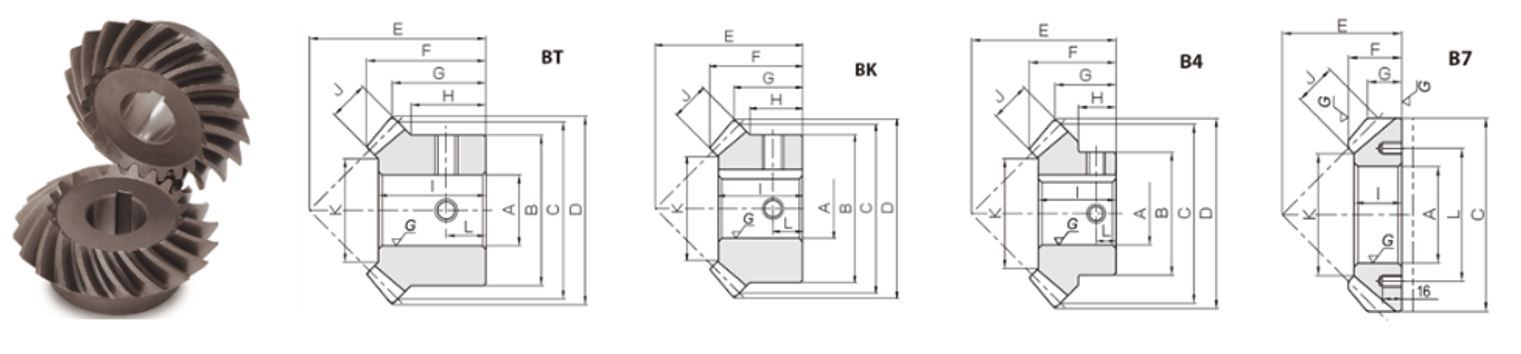

Shape

Bore (A) (in)

Bore (A) (mm)

Pitch Diameter (C) (in)

Pitch Diameter (C) (mm)

Outer Diameter (D) (in)

Outer Diameter (D) (mm)

Item #	Sell Price	CAD	Module	No. of Teeth	Shape	Bore (A)	Pitch Diameter (C)	Outer Diameter (D)	Internal ID	Sell Price 1 Value

MMSA1-20L	$41.22	N/A	N/A 1	N/A 20	N/A BT	N/A 0.315 in8 mm	N/A 0.787 in20 mm	N/A 0.838 in21.29 mm	N/A 6076	41.22
MMSA1-20R	$41.22	N/A	N/A 1	N/A 20	N/A BT	N/A 0.315 in8 mm	N/A 0.787 in20 mm	N/A 0.838 in21.29 mm	N/A 6077	41.22
MMSB1-20L	$41.19	N/A	N/A 1	N/A 20	N/A BT	N/A 0.394 in10 mm	N/A 0.787 in20 mm	N/A 0.838 in21.29 mm	N/A 6098	41.19
MMSB1-20R	$41.19	N/A	N/A 1	N/A 20	N/A BT	N/A 0.394 in10 mm	N/A 0.787 in20 mm	N/A 0.838 in21.29 mm	N/A 6099	41.19
MMSA1.5-20L	$47.44	N/A	N/A 1.5	N/A 20	N/A BT	N/A 0.394 in10 mm	N/A 1.181 in30 mm	N/A 1.256 in31.9 mm	N/A 6078	47.44
MMSA1.5-20R	$47.44	N/A	N/A 1.5	N/A 20	N/A BT	N/A 0.394 in10 mm	N/A 1.181 in30 mm	N/A 1.256 in31.9 mm	N/A 6079	47.44
MMSB1.5-20L	$51.29	N/A	N/A 1.5	N/A 20	N/A BK	N/A 0.472 in12 mm	N/A 1.181 in30 mm	N/A 1.256 in31.9 mm	N/A 6100	51.29
MMSB1.5-20R	$51.29	N/A	N/A 1.5	N/A 20	N/A BK	N/A 0.472 in12 mm	N/A 1.181 in30 mm	N/A 1.256 in31.9 mm	N/A 6101	51.29
MMSA2-20L	$63.20	N/A	N/A 2	N/A 20	N/A BK	N/A 0.551 in14 mm	N/A 1.575 in40 mm	N/A 1.674 in42.52 mm	N/A 6082	63.2
MMSA2-20R	$63.20	N/A	N/A 2	N/A 20	N/A BK	N/A 0.551 in14 mm	N/A 1.575 in40 mm	N/A 1.674 in42.52 mm	N/A 6083	63.2
MMSB2-20L	$63.11	N/A	N/A 2	N/A 20	N/A BK	N/A 0.630 in16 mm	N/A 1.575 in40 mm	N/A 1.674 in42.52 mm	N/A 6102	63.11
MMSB2-20R	$63.11	N/A	N/A 2	N/A 20	N/A BK	N/A 0.630 in16 mm	N/A 1.575 in40 mm	N/A 1.674 in42.52 mm	N/A 6103	63.11
MMSA2.5-20L	$98.71	N/A	N/A 2.5	N/A 20	N/A BK	N/A 0.709 in18 mm	N/A 1.969 in50 mm	N/A 2.094 in53.2 mm	N/A 6084	98.71
MMSA2.5-20R	$98.71	N/A	N/A 2.5	N/A 20	N/A BK	N/A 0.709 in18 mm	N/A 1.969 in50 mm	N/A 2.094 in53.2 mm	N/A 6085	98.71
MMSB2.5-20L	$98.62	N/A	N/A 2.5	N/A 20	N/A BK	N/A 0.787 in20 mm	N/A 1.969 in50 mm	N/A 2.094 in53.2 mm	N/A 6104	98.62
MMSB2.5-20R	$98.62	N/A	N/A 2.5	N/A 20	N/A BK	N/A 0.787 in20 mm	N/A 1.969 in50 mm	N/A 2.094 in53.2 mm	N/A 6105	98.62
MMSA3-20L	$116.68	N/A	N/A 3	N/A 20	N/A BK	N/A 0.787 in20 mm	N/A 2.362 in60 mm	N/A 2.519 in63.99 mm	N/A 6086	116.68
MMSA3-20R	$116.68	N/A	N/A 3	N/A 20	N/A BK	N/A 0.787 in20 mm	N/A 2.362 in60 mm	N/A 2.519 in63.99 mm	N/A 6087	116.68
MMSB3-20L	$116.59	N/A	N/A 3	N/A 20	N/A BK	N/A 0.866 in22 mm	N/A 2.362 in60 mm	N/A 2.519 in63.99 mm	N/A 6106	116.59
MMSB3-20R	$116.59	N/A	N/A 3	N/A 20	N/A BK	N/A 0.866 in22 mm	N/A 2.362 in60 mm	N/A 2.519 in63.99 mm	N/A 6107	116.59
MMSA3.5-20L	$137.81	N/A	N/A 3.5	N/A 20	N/A B4	N/A 0.984 in25 mm	N/A 2.756 in70 mm	N/A 2.934 in74.53 mm	N/A 6088	137.81
MMSA3.5-20R	$137.81	N/A	N/A 3.5	N/A 20	N/A B4	N/A 0.984 in25 mm	N/A 2.756 in70 mm	N/A 2.934 in74.53 mm	N/A 6089	137.81
MMSB3.5-20L	$137.54	N/A	N/A 3.5	N/A 20	N/A B4	N/A 1.102 in28 mm	N/A 2.756 in70 mm	N/A 2.934 in74.53 mm	N/A 6108	137.54
MMSB3.5-20R	$137.54	N/A	N/A 3.5	N/A 20	N/A B4	N/A 1.102 in28 mm	N/A 2.756 in70 mm	N/A 2.934 in74.53 mm	N/A 6109	137.54
MMSA4-20L	$164.53	N/A	N/A 4	N/A 20	N/A B4	N/A 1.102 in28 mm	N/A 3.150 in80 mm	N/A 3.346 in84.99 mm	N/A 6090	164.53
