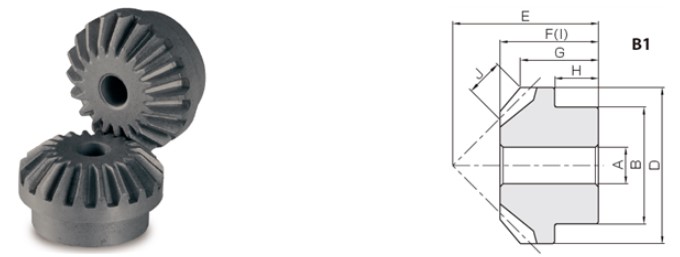

Sintered Metal Miter Gears (LM)
Miter Gears
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Item # |
Sell Price |
CAD |
Module |
No. of Teeth |
Shape |
Bore (A) |
Pitch Diameter (C) |
Outer Diameter (D) |
Internal ID |
Sell Price 1 Value |
|---|---|---|---|---|---|---|---|---|---|---|
| LM0.8-20 | $7.72 |
CAD
N/A
|
Module N/A 0.8 | No. of Teeth N/A 20 | Shape N/A B1 | Bore (A) N/A 0.157 in4 mm | Pitch Diameter (C) N/A 0.630 in16 mm | Outer Diameter (D) N/A 0.674 in17.13 mm |
Internal ID
N/A
5836 |
7.72 |
| LM1-20 | $9.00 |
CAD
N/A
|
Module N/A 1 | No. of Teeth N/A 20 | Shape N/A B1 | Bore (A) N/A 0.197 in5 mm | Pitch Diameter (C) N/A 0.787 in20 mm | Outer Diameter (D) N/A 0.843 in21.41 mm |
Internal ID
N/A
5837 |
9 |
| LM1.25-20 | $9.45 |
CAD
N/A
|
Module N/A 1.25 | No. of Teeth N/A 20 | Shape N/A B1 | Bore (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 0.984 in25 mm | Outer Diameter (D) N/A 1.054 in26.77 mm |
Internal ID
N/A
5838 |
9.45 |
| LM1.5-20 | $13.99 |
CAD
N/A
|
Module N/A 1.5 | No. of Teeth N/A 20 | Shape N/A B1 | Bore (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.265 in32.12 mm |
Internal ID
N/A
5839 |
13.99 |
