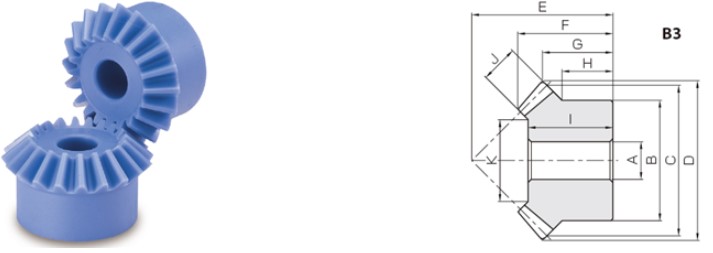

Plastic Miter Gears (PM)
Miter Gears
Only teeth are induction hardened, allowing user to perform secondary operations elsewhere.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Item # |
Sell Price |
CAD |
Module |
No. of Teeth |
Shape |
Bore (A) |
Pitch Diameter (C) |
Outer Diameter (D) |
Internal ID |
Sell Price 1 Value |
|---|---|---|---|---|---|---|---|---|---|---|
| PM1-20 | $19.50 |
CAD
N/A
|
Module N/A 1 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 0.787 in20 mm | Outer Diameter (D) N/A 0.843 in21.41 mm |
Internal ID
N/A
7582 |
19.5 |
| PM1-25 | $22.78 |
CAD
N/A
|
Module N/A 1 | No. of Teeth N/A 25 | Shape N/A B3 | Bore (A) N/A 0.236 in6 mm | Pitch Diameter (C) N/A 0.984 in25 mm | Outer Diameter (D) N/A 1.040 in26.41 mm |
Internal ID
N/A
7583 |
22.78 |
| PM1-30 | $9,876.54 | CAD N/A | Module N/A 1 | No. of Teeth N/A 30 | Shape N/A B3 | Bore (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.237 in31.41 mm |
Internal ID
N/A
7584 |
9876.54 |
| PM1.25-20 | $21.98 |
CAD
N/A
|
Module N/A 1.25 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 0.984 in25 mm | Outer Diameter (D) N/A 1.054 in26.77 mm |
Internal ID
N/A
7585 |
21.98 |
| PM1.25-25 | $9,876.54 | CAD N/A | Module N/A 1.25 | No. of Teeth N/A 25 | Shape N/A B3 | Bore (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.230 in31.25 mm | Outer Diameter (D) N/A 1.300 in33.02 mm |
Internal ID
N/A
7586 |
9876.54 |
| PM1.5-20 | $24.44 |
CAD
N/A
|
Module N/A 1.5 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.265 in32.12 mm |
Internal ID
N/A
7587 |
24.44 |
| PM1.5-25 | $29.57 |
CAD
N/A
|
Module N/A 1.5 | No. of Teeth N/A 25 | Shape N/A B3 | Bore (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.476 in37.5 mm | Outer Diameter (D) N/A 1.560 in39.62 mm |
Internal ID
N/A
7588 |
29.57 |
| PM1.5-30 | $9,876.54 | CAD N/A | Module N/A 1.5 | No. of Teeth N/A 30 | Shape N/A B3 | Bore (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.772 in45 mm | Outer Diameter (D) N/A 1.855 in47.12 mm |
Internal ID
N/A
7589 |
9876.54 |
| PM2-20 | $30.66 |
CAD
N/A
|
Module N/A 2 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.575 in40 mm | Outer Diameter (D) N/A 1.686 in42.83 mm |
Internal ID
N/A
7590 |
30.66 |
| PM2-25 | $37.80 |
CAD
N/A
|
Module N/A 2 | No. of Teeth N/A 25 | Shape N/A B3 | Bore (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.969 in50 mm | Outer Diameter (D) N/A 2.080 in52.83 mm |
Internal ID
N/A
7591 |
37.8 |
| PM2-30 | $9,876.54 | CAD N/A | Module N/A 2 | No. of Teeth N/A 30 | Shape N/A B3 | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 2.362 in60 mm | Outer Diameter (D) N/A 2.474 in62.83 mm |
Internal ID
N/A
7592 |
9876.54 |
| PM2.5-20 | $40.37 |
CAD
N/A
|
Module N/A 2.5 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.969 in50 mm | Outer Diameter (D) N/A 2.108 in53.54 mm |
Internal ID
N/A
7593 |
40.37 |
| PM2.5-25 | $49.95 |
CAD
N/A
|
Module N/A 2.5 | No. of Teeth N/A 25 | Shape N/A B3 | Bore (A) N/A 0.551 in14 mm | Pitch Diameter (C) N/A 2.461 in62.5 mm | Outer Diameter (D) N/A 2.600 in66.04 mm |
Internal ID
N/A
7594 |
49.95 |
| PM2.5-30 | $9,876.54 | CAD N/A | Module N/A 2.5 | No. of Teeth N/A 30 | Shape N/A B3 | Bore (A) N/A 0.630 in16 mm | Pitch Diameter (C) N/A 2.953 in75 mm | Outer Diameter (D) N/A 3.092 in78.54 mm |
Internal ID
N/A
7595 |
9876.54 |
| PM3-20 | $51.24 |
CAD
N/A
|
Module N/A 3 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.551 in14 mm | Pitch Diameter (C) N/A 2.362 in60 mm | Outer Diameter (D) N/A 2.529 in64.24 mm |
Internal ID
N/A
7596 |
51.24 |
| PM3-25 | $64.57 |
CAD
N/A
|
Module N/A 3 | No. of Teeth N/A 25 | Shape N/A B3 | Bore (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 2.953 in75 mm | Outer Diameter (D) N/A 3.120 in79.24 mm |
Internal ID
N/A
7597 |
64.57 |
| PM3-30 | $9,876.54 | CAD N/A | Module N/A 3 | No. of Teeth N/A 30 | Shape N/A B3 | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.543 in90 mm | Outer Diameter (D) N/A 3.710 in94.24 mm |
Internal ID
N/A
7598 |
9876.54 |
| PM3.5-20 | $63.31 |
CAD
N/A
|
Module N/A 3.5 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 2.756 in70 mm | Outer Diameter (D) N/A 2.951 in74.95 mm |
Internal ID
N/A
7599 |
63.31 |
| PM4-20 | $87.19 |
CAD
N/A
|
Module N/A 4 | No. of Teeth N/A 20 | Shape N/A B3 | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.150 in80 mm | Outer Diameter (D) N/A 3.372 in85.66 mm |
Internal ID
N/A
7600 |
87.19 |
