Hardened Miter Gears (SMA·SMB·SMC)
Miter Gears
Convenient in applications where the rack has reciprocal motion.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Item # |
Sell Price |
CAD |
Module |
No. of Teeth |

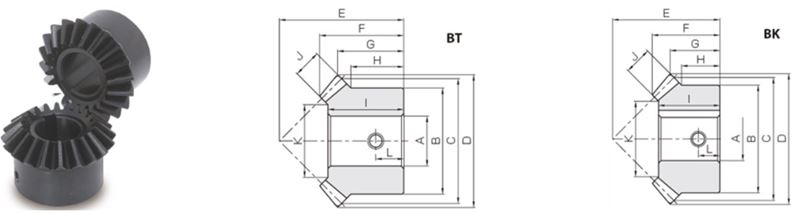

Shape |
Bore (A) |
Pitch Diameter (C) |
Outer Diameter (D) |
Internal ID |
Sell Price 1 Value |
|---|---|---|---|---|---|---|---|---|---|---|
| SMA1-20 | $29.13 |
CAD
N/A
|
Module N/A 1 | No. of Teeth N/A 20 | Shape N/A BT | Bore (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 0.787 in20 mm | Outer Diameter (D) N/A 0.843 in21.41 mm |
Internal ID
N/A
10143 |
29.13 |
| SMA1-25 | $33.75 |
CAD
N/A
|
Module N/A 1 | No. of Teeth N/A 25 | Shape N/A BT | Bore (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 0.984 in25 mm | Outer Diameter (D) N/A 1.040 in26.41 mm |
Internal ID
N/A
10144 |
33.75 |
| SMA1-30 | $39.11 |
CAD
N/A
|
Module N/A 1 | No. of Teeth N/A 30 | Shape N/A BK | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.237 in31.41 mm |
Internal ID
N/A
10145 |
39.11 |
| SMB1-20 | $29.11 |
CAD
N/A
|
Module N/A 1 | No. of Teeth N/A 20 | Shape N/A BT | Bore (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 0.787 in20 mm | Outer Diameter (D) N/A 0.843 in21.41 mm |
Internal ID
N/A
10170 |
29.11 |
| SMA1.5-20 | $34.56 |
CAD
N/A
|
Module N/A 1.5 | No. of Teeth N/A 20 | Shape N/A BT | Bore (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.265 in32.12 mm |
Internal ID
N/A
10146 |
34.56 |
| SMA1.5-25 | $43.28 |
CAD
N/A
|
Module N/A 1.5 | No. of Teeth N/A 25 | Shape N/A BK | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.476 in37.5 mm | Outer Diameter (D) N/A 1.560 in39.62 mm |
Internal ID
N/A
10147 |
43.28 |
| SMA1.5-30 | $50.37 |
CAD
N/A
|
Module N/A 1.5 | No. of Teeth N/A 30 | Shape N/A BK | Bore (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 1.772 in45 mm | Outer Diameter (D) N/A 1.855 in47.12 mm |
Internal ID
N/A
10148 |
50.37 |
| SMB1.5-20 | $36.11 |
CAD
N/A
|
Module N/A 1.5 | No. of Teeth N/A 20 | Shape N/A BK | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.181 in30 mm | Outer Diameter (D) N/A 1.265 in32.12 mm |
Internal ID
N/A
10171 |
36.11 |
| SMA2-20 | $44.22 |
CAD
N/A
|
Module N/A 2 | No. of Teeth N/A 20 | Shape N/A BK | Bore (A) N/A 0.551 in14 mm | Pitch Diameter (C) N/A 1.575 in40 mm | Outer Diameter (D) N/A 1.686 in42.83 mm |
Internal ID
N/A
10149 |
44.22 |
| SMA2-25 | $53.25 |
CAD
N/A
|
Module N/A 2 | No. of Teeth N/A 25 | Shape N/A BK | Bore (A) N/A 0.709 in18 mm | Pitch Diameter (C) N/A 1.969 in50 mm | Outer Diameter (D) N/A 2.080 in52.83 mm |
Internal ID
N/A
10150 |
53.25 |
| SMA2-30 | $63.78 |
CAD
N/A
|
Module N/A 2 | No. of Teeth N/A 30 | Shape N/A BK | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 2.362 in60 mm | Outer Diameter (D) N/A 2.474 in62.83 mm |
Internal ID
N/A
10151 |
63.78 |
| SMB2-20 | $44.13 |
CAD
N/A
|
Module N/A 2 | No. of Teeth N/A 20 | Shape N/A BK | Bore (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 1.575 in40 mm | Outer Diameter (D) N/A 1.686 in42.83 mm |
Internal ID
N/A
10172 |
44.13 |
| SMB2-25 | $53.34 |
CAD
N/A
|
Module N/A 2 | No. of Teeth N/A 25 | Shape N/A BK | Bore (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 1.969 in50 mm | Outer Diameter (D) N/A 2.080 in52.83 mm |
Internal ID
N/A
10173 |
53.34 |
| SMB2-30 | $64.05 |
CAD
N/A
|
Module N/A 2 | No. of Teeth N/A 30 | Shape N/A BK | Bore (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 2.362 in60 mm | Outer Diameter (D) N/A 2.474 in62.83 mm |
Internal ID
N/A
10174 |
64.05 |
| SMA2.5-20 | $59.17 |
CAD
N/A
|
Module N/A 2.5 | No. of Teeth N/A 20 | Shape N/A BK | Bore (A) N/A 0.709 in18 mm | Pitch Diameter (C) N/A 1.969 in50 mm | Outer Diameter (D) N/A 2.108 in53.54 mm |
Internal ID
N/A
10152 |
59.17 |
| SMA2.5-25 | $71.93 |
CAD
N/A
|
Module N/A 2.5 | No. of Teeth N/A 25 | Shape N/A BK | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 2.461 in62.5 mm | Outer Diameter (D) N/A 2.600 in66.04 mm |
Internal ID
N/A
10153 |
71.93 |
| SMA2.5-30 | $91.62 |
CAD
N/A
|
Module N/A 2.5 | No. of Teeth N/A 30 | Shape N/A BK | Bore (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 2.953 in75 mm | Outer Diameter (D) N/A 3.092 in78.54 mm |
Internal ID
N/A
10154 |
91.62 |
| SMB2.5-20 | $59.08 |
CAD
N/A
|
Module N/A 2.5 | No. of Teeth N/A 20 | Shape N/A BK | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 1.969 in50 mm | Outer Diameter (D) N/A 2.108 in53.54 mm |
Internal ID
N/A
10175 |
59.08 |
| SMB2.5-25 | $72.02 |
CAD
N/A
|
Module N/A 2.5 | No. of Teeth N/A 25 | Shape N/A BK | Bore (A) N/A 0.709 in18 mm | Pitch Diameter (C) N/A 2.461 in62.5 mm | Outer Diameter (D) N/A 2.600 in66.04 mm |
Internal ID
N/A
10176 |
72.02 |
| SMB2.5-30 | $92.07 |
CAD
N/A
|
Module N/A 2.5 | No. of Teeth N/A 30 | Shape N/A BK | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 2.953 in75 mm | Outer Diameter (D) N/A 3.092 in78.54 mm |
Internal ID
N/A
10177 |
92.07 |
| SMA3-20 | $74.78 |
CAD
N/A
|
Module N/A 3 | No. of Teeth N/A 20 | Shape N/A BK | Bore (A) N/A 0.866 in22 mm | Pitch Diameter (C) N/A 2.362 in60 mm | Outer Diameter (D) N/A 2.529 in64.24 mm |
Internal ID
N/A
10155 |
74.78 |
| SMA3-25 | $90.21 |
CAD
N/A
|
Module N/A 3 | No. of Teeth N/A 25 | Shape N/A BK | Bore (A) N/A 1.181 in30 mm | Pitch Diameter (C) N/A 2.953 in75 mm | Outer Diameter (D) N/A 3.120 in79.24 mm |
Internal ID
N/A
10156 |
90.21 |
| SMA3-30 | $124.79 |
CAD
N/A
|
Module N/A 3 | No. of Teeth N/A 30 | Shape N/A BK | Bore (A) N/A 1.260 in32 mm | Pitch Diameter (C) N/A 3.543 in90 mm | Outer Diameter (D) N/A 3.710 in94.24 mm |
Internal ID
N/A
10157 |
124.79 |
| SMB3-20 | $74.51 |
CAD
N/A
|
Module N/A 3 | No. of Teeth N/A 20 | Shape N/A BK | Bore (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 2.362 in60 mm | Outer Diameter (D) N/A 2.529 in64.24 mm |
Internal ID
N/A
10178 |
74.51 |
| SMB3-25 | $90.75 |
CAD
N/A
|
Module N/A 3 | No. of Teeth N/A 25 | Shape N/A BK | Bore (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 2.953 in75 mm | Outer Diameter (D) N/A 3.120 in79.24 mm |
Internal ID
N/A
10179 |
90.75 |
