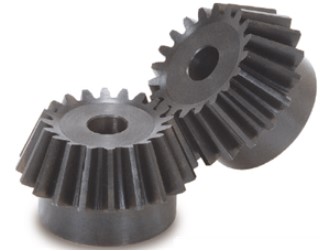

Angular Miter Gears (SAM) On KHK Gears

High strength, abrasion-resistant and compact for high speed & torque use.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.

1 - 24 of 24 | Results Per Page | View | Unit of Measure

Request Information Compare Items

Clear Filter

Module

Shape

Bore (A) (in)

Bore (A) (mm)

Pitch Diameter (C) (in)

Pitch Diameter (C) (mm)

Outer Diameter (D) (in)

Outer Diameter (D) (mm)

Item #	Sell Price	CAD	No. of Teeth	Module	Shape	Bore (A)	Pitch Diameter (C)	Outer Diameter (D)	Internal ID	Sell Price 1 Value

SAM1.5-20045	$29.73	N/A	N/A 20	N/A 1.5	N/A B45	N/A 0.315 in8 mm	N/A 1.181 in30 mm	N/A 1.290 in32.77 mm	N/A 9824	29.73
SAM1.5-20060	$29.82	N/A	N/A 20	N/A 1.5	N/A B60	N/A 0.315 in8 mm	N/A 1.181 in30 mm	N/A 1.283 in32.59 mm	N/A 9825	29.82
SAM1.5-20120	$29.78	N/A	N/A 20	N/A 1.5	N/A B120	N/A 0.315 in8 mm	N/A 1.181 in30 mm	N/A 1.240 in31.5 mm	N/A 9826	29.78
SAM1.5-20045H	$55.90	N/A	N/A 20	N/A 1.5	N/A B45	N/A 0.315 in8 mm	N/A 1.181 in30 mm	N/A 1.290 in32.77 mm		55.9
SAM1.5-20060H	$55.90	N/A	N/A 20	N/A 1.5	N/A B60	N/A 0.315 in8 mm	N/A 1.181 in30 mm	N/A 1.283 in32.59 mm		55.9
SAM1.5-20120H	$55.90	N/A	N/A 20	N/A 1.5	N/A B120	N/A 0.315 in8 mm	N/A 1.181 in30 mm	N/A 1.240 in31.5 mm		55.9
SAM2-20045	$36.03	N/A	N/A 20	N/A 2	N/A B45	N/A 0.394 in10 mm	N/A 1.575 in40 mm	N/A 1.720 in43.69 mm	N/A 9827	36.03
SAM2-20060	$36.03	N/A	N/A 20	N/A 2	N/A B60	N/A 0.472 in12 mm	N/A 1.575 in40 mm	N/A 1.711 in43.46 mm	N/A 9828	36.03
SAM2-20120	$36.12	N/A	N/A 20	N/A 2	N/A B120	N/A 0.472 in12 mm	N/A 1.575 in40 mm	N/A 1.654 in42 mm	N/A 9829	36.12
SAM2-20045H	$61.20	N/A	N/A 20	N/A 2	N/A B45	N/A 0.394 in10 mm	N/A 1.575 in40 mm	N/A 1.720 in43.69 mm		61.2
SAM2-20060H	$61.20	N/A	N/A 20	N/A 2	N/A B60	N/A 0.472 in12 mm	N/A 1.575 in40 mm	N/A 1.711 in43.46 mm		61.2
SAM2-20120H	$61.20	N/A	N/A 20	N/A 2	N/A B120	N/A 0.472 in12 mm	N/A 1.575 in40 mm	N/A 1.654 in42 mm		61.2
SAM2.5-20045	$52.32	N/A	N/A 20	N/A 2.5	N/A B45	N/A 0.472 in12 mm	N/A 1.969 in50 mm	N/A 2.150 in54.62 mm	N/A 9830	52.32
SAM2.5-20060	$51.96	N/A	N/A 20	N/A 2.5	N/A B60	N/A 0.551 in14 mm	N/A 1.969 in50 mm	N/A 2.139 in54.33 mm	N/A 9831	51.96
SAM2.5-20120	$52.32	N/A	N/A 20	N/A 2.5	N/A B120	N/A 0.551 in14 mm	N/A 1.969 in50 mm	N/A 2.067 in52.5 mm	N/A 9832	52.32
SAM2.5-20045H	$75.60	N/A	N/A 20	N/A 2.5	N/A B45	N/A 0.472 in12 mm	N/A 1.969 in50 mm	N/A 2.150 in54.62 mm		75.6
SAM2.5-20060H	$75.60	N/A	N/A 20	N/A 2.5	N/A B60	N/A 0.551 in14 mm	N/A 1.969 in50 mm	N/A 2.139 in54.33 mm		75.6
SAM2.5-20120H	$75.60	N/A	N/A 20	N/A 2.5	N/A B120	N/A 0.551 in14 mm	N/A 1.969 in50 mm	N/A 2.067 in52.5 mm		75.6
SAM3-20045	$69.83	N/A	N/A 20	N/A 3	N/A B45	N/A 0.551 in14 mm	N/A 2.362 in60 mm	N/A 2.580 in65.54 mm	N/A 9833	69.83
SAM3-20060	$69.11	N/A	N/A 20	N/A 3	N/A B60	N/A 0.630 in16 mm	N/A 2.362 in60 mm	N/A 2.567 in65.19 mm	N/A 9834	69.11
SAM3-20120	$69.65	N/A	N/A 20	N/A 3	N/A B120	N/A 0.630 in16 mm	N/A 2.362 in60 mm	N/A 2.480 in63 mm	N/A 9835	69.65
SAM3-20045H	$92.90	N/A	N/A 20	N/A 3	N/A B45	N/A 0.551 in14 mm	N/A 2.362 in60 mm	N/A 2.580 in65.54 mm		92.9
SAM3-20060H	$90.70	N/A	N/A 20	N/A 3	N/A B60	N/A 0.630 in16 mm	N/A 2.362 in60 mm	N/A 2.567 in65.19 mm		90.7
SAM3-20120H	$92.90	N/A	N/A 20	N/A 3	N/A B120	N/A 0.630 in16 mm	N/A 2.362 in60 mm	N/A 2.480 in63 mm		92.9

1 - 24 of 24 | Results Per Page | View | Unit of Measure
