Steel Ring Gears (SIR) On KHK Gears

Free Delivery

Ring gear large in size / number of tooth. It can be cut to make segment gears and corner racks.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.

1 - 6 of 6 | Results Per Page | View | Unit of Measure

Request Information Compare Items

Clear Filter

Module

No. of teeth

Internal Diameter (A) (in)

Internal Diameter (A) (mm)

Pitch Diameter (C) (in)

Pitch Diameter (C) (mm)

Face Width (E) (in)

Face Width (E) (mm)

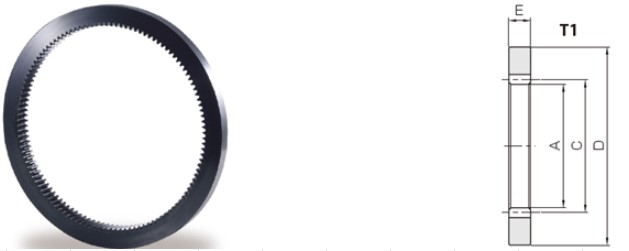

Item #	Sell Price	CAD	Module	No. of teeth	Shape	Internal Diameter (A)	Pitch Diameter (C)	Face Width (E)	Internal ID	Sell Price 1 Value

SIR2-120	$551.60	N/A	N/A 2	N/A 120	N/A T1	N/A 9.291 in236 mm	N/A 9.449 in240 mm	N/A 0.787 in20 mm	N/A 10102	551.6
SIR2-200	$1,089.30	N/A	N/A 2	N/A 200	N/A T1	N/A 15.591 in396 mm	N/A 15.748 in400 mm	N/A 0.787 in20 mm	N/A 10103	1089.3
SIR2.5-120	$756.34	N/A	N/A 2.5	N/A 120	N/A T1	N/A 11.614 in295 mm	N/A 11.811 in300 mm	N/A 0.984 in25 mm	N/A 10104	756.34
SIR2.5-200	$1,488.67	N/A	N/A 2.5	N/A 200	N/A T1	N/A 19.488 in495 mm	N/A 19.685 in500 mm	N/A 0.984 in25 mm	N/A 10105	1488.67
SIR3-120	$1,311.44	N/A	N/A 3	N/A 120	N/A T1	N/A 13.937 in354 mm	N/A 14.173 in360 mm	N/A 1.181 in30 mm	N/A 10106	1311.44
SIR3-160	$1,789.25	N/A	N/A 3	N/A 160	N/A T1	N/A 18.661 in474 mm	N/A 18.898 in480 mm	N/A 1.181 in30 mm	N/A 10107	1789.25

1 - 6 of 6 | Results Per Page | View | Unit of Measure
