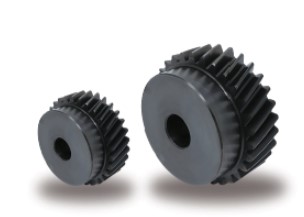

Helical Gears (SHE)
Helical Gears
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Item # |
Sell Price |
CAD |
Module |
No. of teeth |
Bore (A) |
Pitch Diameter (C) |
Outer Diameter (D) |
Internal ID |
Sell Price 1 Value |
|---|---|---|---|---|---|---|---|---|---|
| SHE1.5-20L | $21.52 |
CAD
N/A
|
Module N/A 1.5 | No. of teeth N/A 20 | Bore (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.253 in31.83 mm | Outer Diameter (D) N/A 1.417 in36 mm |
Internal ID
N/A
10064 |
21.52 |
| SHE1.5-25L | $28.44 |
CAD
N/A
|
Module N/A 1.5 | No. of teeth N/A 25 | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.567 in39.79 mm | Outer Diameter (D) N/A 1.732 in44 mm |
Internal ID
N/A
10065 |
28.44 |
| SHE1.5-30L | $33.13 |
CAD
N/A
|
Module N/A 1.5 | No. of teeth N/A 30 | Bore (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 1.880 in47.75 mm | Outer Diameter (D) N/A 2.047 in52 mm |
Internal ID
N/A
10066 |
33.13 |
| SHE1.5-20LH | $51.60 | CAD N/A | Module N/A 1.5 | No. of teeth N/A 20 | Bore (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.253 in31.83 mm | Outer Diameter (D) N/A 1.417 in36 mm | 51.6 | |
| SHE1.5-25LH | $57.30 | CAD N/A | Module N/A 1.5 | No. of teeth N/A 25 | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.567 in39.79 mm | Outer Diameter (D) N/A 1.732 in44 mm | 57.3 | |
| SHE1.5-30LH | $60.90 | CAD N/A | Module N/A 1.5 | No. of teeth N/A 30 | Bore (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 1.880 in47.75 mm | Outer Diameter (D) N/A 2.047 in52 mm | 60.9 | |
| SHE2-18L | $32.44 |
CAD
N/A
|
Module N/A 2 | No. of teeth N/A 18 | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.504 in38.2 mm | Outer Diameter (D) N/A 1.732 in44 mm |
Internal ID
N/A
10067 |
32.44 |
| SHE2-24L | $42.70 |
CAD
N/A
|
Module N/A 2 | No. of teeth N/A 24 | Bore (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 2.005 in50.93 mm | Outer Diameter (D) N/A 2.205 in56 mm |
Internal ID
N/A
10068 |
42.7 |
| SHE2-30L | $53.98 |
CAD
N/A
|
Module N/A 2 | No. of teeth N/A 30 | Bore (A) N/A 0.709 in18 mm | Pitch Diameter (C) N/A 2.506 in63.66 mm | Outer Diameter (D) N/A 2.677 in68 mm |
Internal ID
N/A
10069 |
53.98 |
| SHE2-18LH | $60.80 | CAD N/A | Module N/A 2 | No. of teeth N/A 18 | Bore (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.504 in38.2 mm | Outer Diameter (D) N/A 1.732 in44 mm | 60.8 | |
| SHE2-24LH | $70.60 | CAD N/A | Module N/A 2 | No. of teeth N/A 24 | Bore (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 2.005 in50.93 mm | Outer Diameter (D) N/A 2.205 in56 mm | 70.6 | |
| SHE2-30LH | $83.00 | CAD N/A | Module N/A 2 | No. of teeth N/A 30 | Bore (A) N/A 0.709 in18 mm | Pitch Diameter (C) N/A 2.506 in63.66 mm | Outer Diameter (D) N/A 2.677 in68 mm | 83 | |
| SHE3-20L | $68.60 |
CAD
N/A
|
Module N/A 3 | No. of teeth N/A 20 | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 2.506 in63.66 mm | Outer Diameter (D) N/A 2.835 in72 mm |
Internal ID
N/A
10070 |
68.6 |
| SHE3-25L | $93.46 |
CAD
N/A
|
Module N/A 3 | No. of teeth N/A 25 | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.133 in79.58 mm | Outer Diameter (D) N/A 3.465 in88 mm |
Internal ID
N/A
10071 |
93.46 |
| SHE3-30L | $123.35 |
CAD
N/A
|
Module N/A 3 | No. of teeth N/A 30 | Bore (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 3.759 in95.49 mm | Outer Diameter (D) N/A 4.094 in104 mm |
Internal ID
N/A
10072 |
123.35 |
| SHE3-20LH | $98.00 | CAD N/A | Module N/A 3 | No. of teeth N/A 20 | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 2.506 in63.66 mm | Outer Diameter (D) N/A 2.835 in72 mm | 98 | |
| SHE3-25LH | $129.30 | CAD N/A | Module N/A 3 | No. of teeth N/A 25 | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.133 in79.58 mm | Outer Diameter (D) N/A 3.465 in88 mm | 129.3 | |
| SHE3-30LH | $157.90 | CAD N/A | Module N/A 3 | No. of teeth N/A 30 | Bore (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 3.759 in95.49 mm | Outer Diameter (D) N/A 4.094 in104 mm | 157.9 | |
| SHE4-18L | $109.11 |
CAD
N/A
|
Module N/A 4 | No. of teeth N/A 18 | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.007 in76.39 mm | Outer Diameter (D) N/A 3.386 in86 mm |
Internal ID
N/A
10073 |
109.11 |
| SHE4-24L | $173.56 |
CAD
N/A
|
Module N/A 4 | No. of teeth N/A 24 | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 4.010 in101.86 mm | Outer Diameter (D) N/A 4.409 in112 mm |
Internal ID
N/A
10074 |
173.56 |
| SHE4-30L | $232.98 |
CAD
N/A
|
Module N/A 4 | No. of teeth N/A 30 | Bore (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 5.013 in127.32 mm | Outer Diameter (D) N/A 5.433 in138 mm |
Internal ID
N/A
10075 |
232.98 |
| SHE4-18LH | $150.60 | CAD N/A | Module N/A 4 | No. of teeth N/A 18 | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.007 in76.39 mm | Outer Diameter (D) N/A 3.386 in86 mm | 150.6 | |
| SHE4-24LH | $225.70 | CAD N/A | Module N/A 4 | No. of teeth N/A 24 | Bore (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 4.010 in101.86 mm | Outer Diameter (D) N/A 4.409 in112 mm | 225.7 | |
| SHE4-30LH | $286.90 | CAD N/A | Module N/A 4 | No. of teeth N/A 30 | Bore (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 5.013 in127.32 mm | Outer Diameter (D) N/A 5.433 in138 mm | 286.9 | |
| SHE5-18L | $191.62 |
CAD
N/A
|
Module N/A 5 | No. of teeth N/A 18 | Bore (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 3.759 in95.49 mm | Outer Diameter (D) N/A 4.331 in110 mm |
Internal ID
N/A
10076 |
191.62 |
