Helical Gears (SH)


Email This Page Download PDF Download PDF Printable Page
Helical Gears (SH) Helical Gears

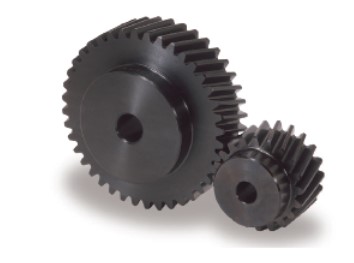

  • SH - Category/Asset/SH---Category.jpg
  • Helical Gears SH
  • SH - Category/Asset/SH---Category.jpg
  • Helical Gears SH
Having larger contact ratios compared to the SS spur gears, effective in reducing noise and vibration.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
1 - 25 of 42 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items
Clear Filter

Transverse Module

No. of Teeth

Direction of Helix

Bore Diameter (A) (in)

Bore Diameter (A) (mm)

Pitch Diameter (C) (in)

Pitch Diameter (C) (mm)

Item #

Sell Price

CAD

Transverse Module

No. of Teeth

Direction of Helix

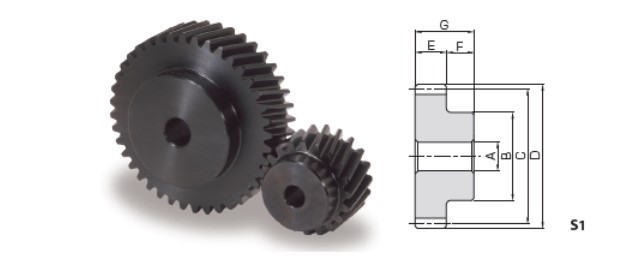

Shape

Bore Diameter (A)

Pitch Diameter (C)

Outer Diameter (D)

Total Length (G)

Internal ID

Sell Price 1 Value

SH2-15L $25.45 CAD N/A CAD Icon (for items table) Transverse Module N/A 2 No. of Teeth N/A 15 Direction of Helix N/A Left Hand Shape N/A S1 Bore Diameter (A) N/A 0.472 in12 mm Pitch Diameter (C) N/A 1.223 in31.06 mm Outer Diameter (D) N/A 1.380 in35.06 mm Total Length (G) N/A 1.378 in35 mm Internal ID N/A
10042 		25.45
SH2-15R $25.45 CAD N/A CAD Icon (for items table) Transverse Module N/A 2 No. of Teeth N/A 15 Direction of Helix N/A Right Hand Shape N/A S1 Bore Diameter (A) N/A 0.472 in12 mm Pitch Diameter (C) N/A 1.223 in31.06 mm Outer Diameter (D) N/A 1.380 in35.06 mm Total Length (G) N/A 1.378 in35 mm Internal ID N/A
10043 		25.45
SH2-20L $33.79 CAD N/A CAD Icon (for items table) Transverse Module N/A 2 No. of Teeth N/A 20 Direction of Helix N/A Left Hand Shape N/A S1 Bore Diameter (A) N/A 0.472 in12 mm Pitch Diameter (C) N/A 1.630 in41.41 mm Outer Diameter (D) N/A 1.788 in45.41 mm Total Length (G) N/A 1.378 in35 mm Internal ID N/A
10044 		33.79
SH2-20R $33.79 CAD N/A CAD Icon (for items table) Transverse Module N/A 2 No. of Teeth N/A 20 Direction of Helix N/A Right Hand Shape N/A S1 Bore Diameter (A) N/A 0.472 in12 mm Pitch Diameter (C) N/A 1.630 in41.41 mm Outer Diameter (D) N/A 1.788 in45.41 mm Total Length (G) N/A 1.378 in35 mm Internal ID N/A
10045 		33.79
SH2-30L $53.68 CAD N/A CAD Icon (for items table) Transverse Module N/A 2 No. of Teeth N/A 30 Direction of Helix N/A Left Hand Shape N/A S1 Bore Diameter (A) N/A 0.472 in12 mm Pitch Diameter (C) N/A 2.446 in62.12 mm Outer Diameter (D) N/A 2.603 in66.12 mm Total Length (G) N/A 1.378 in35 mm Internal ID N/A
10046 		53.68
SH2-30R $53.68 CAD N/A CAD Icon (for items table) Transverse Module N/A 2 No. of Teeth N/A 30 Direction of Helix N/A Right Hand Shape N/A S1 Bore Diameter (A) N/A 0.472 in12 mm Pitch Diameter (C) N/A 2.446 in62.12 mm Outer Diameter (D) N/A 2.603 in66.12 mm Total Length (G) N/A 1.378 in35 mm Internal ID N/A
10047 		53.68
SH2-40L $79.47 CAD N/A CAD Icon (for items table) Transverse Module N/A 2 No. of Teeth N/A 40 Direction of Helix N/A Left Hand Shape N/A S1 Bore Diameter (A) N/A 0.709 in18 mm Pitch Diameter (C) N/A 3.261 in82.82 mm Outer Diameter (D) N/A 3.418 in86.82 mm Total Length (G) N/A 1.378 in35 mm Internal ID N/A
10048 		79.47
SH2-40R $79.47 CAD N/A CAD Icon (for items table) Transverse Module N/A 2 No. of Teeth N/A 40 Direction of Helix N/A Right Hand Shape N/A S1 Bore Diameter (A) N/A 0.709 in18 mm Pitch Diameter (C) N/A 3.261 in82.82 mm Outer Diameter (D) N/A 3.418 in86.82 mm Total Length (G) N/A 1.378 in35 mm Internal ID N/A
10049 		79.47
SH2-60L $153.17 CAD N/A CAD Icon (for items table) Transverse Module N/A 2 No. of Teeth N/A 60 Direction of Helix N/A Left Hand Shape N/A S1 Bore Diameter (A) N/A 0.709 in18 mm Pitch Diameter (C) N/A 4.891 in124.23 mm Outer Diameter (D) N/A 5.048 in128.23 mm Total Length (G) N/A 1.378 in35 mm Internal ID N/A
10050 		153.17
SH2-60R $153.17 CAD N/A CAD Icon (for items table) Transverse Module N/A 2 No. of Teeth N/A 60 Direction of Helix N/A Right Hand Shape N/A S1 Bore Diameter (A) N/A 0.709 in18 mm Pitch Diameter (C) N/A 4.891 in124.23 mm Outer Diameter (D) N/A 5.048 in128.23 mm Total Length (G) N/A 1.378 in35 mm Internal ID N/A
10051 		153.17
SH2-90L $9,876.54 CAD N/A CAD Icon (for items table) Transverse Module N/A 2 No. of Teeth N/A 90 Direction of Helix N/A Left Hand Shape N/A S1 Bore Diameter (A) N/A 0.709 in18 mm Pitch Diameter (C) N/A 7.337 in186.35 mm Outer Diameter (D) N/A 7.494 in190.35 mm Total Length (G) N/A 1.378 in35 mm Internal ID N/A
10052 		9876.54
SH2-90R $9,876.54 CAD N/A CAD Icon (for items table) Transverse Module N/A 2 No. of Teeth N/A 90 Direction of Helix N/A Right Hand Shape N/A S1 Bore Diameter (A) N/A 0.709 in18 mm Pitch Diameter (C) N/A 7.337 in186.35 mm Outer Diameter (D) N/A 7.494 in190.35 mm Total Length (G) N/A 1.378 in35 mm Internal ID N/A
10053 		9876.54
SH2-15LH $55.40 CAD N/A Transverse Module N/A 2 No. of Teeth N/A 15 Direction of Helix N/A Left Hand Shape N/A S1 Bore Diameter (A) N/A 0.472 in12 mm Pitch Diameter (C) N/A 1.223 in31.06 mm Outer Diameter (D) N/A 1.380 in35.06 mm Total Length (G) N/A 1.378 in35 mm 55.4
SH2-15RH $55.40 CAD N/A Transverse Module N/A 2 No. of Teeth N/A 15 Direction of Helix N/A Right Hand Shape N/A S1 Bore Diameter (A) N/A 0.472 in12 mm Pitch Diameter (C) N/A 1.223 in31.06 mm Outer Diameter (D) N/A 1.380 in35.06 mm Total Length (G) N/A 1.378 in35 mm 55.4
SH2-20LH $62.10 CAD N/A Transverse Module N/A 2 No. of Teeth N/A 20 Direction of Helix N/A Left Hand Shape N/A S1 Bore Diameter (A) N/A 0.472 in12 mm Pitch Diameter (C) N/A 1.630 in41.41 mm Outer Diameter (D) N/A 1.788 in45.41 mm Total Length (G) N/A 1.378 in35 mm 62.1
SH2-20RH $62.10 CAD N/A Transverse Module N/A 2 No. of Teeth N/A 20 Direction of Helix N/A Right Hand Shape N/A S1 Bore Diameter (A) N/A 0.472 in12 mm Pitch Diameter (C) N/A 1.630 in41.41 mm Outer Diameter (D) N/A 1.788 in45.41 mm Total Length (G) N/A 1.378 in35 mm 62.1
SH2-30LH $82.50 CAD N/A Transverse Module N/A 2 No. of Teeth N/A 30 Direction of Helix N/A Left Hand Shape N/A S1 Bore Diameter (A) N/A 0.472 in12 mm Pitch Diameter (C) N/A 2.446 in62.12 mm Outer Diameter (D) N/A 2.603 in66.12 mm Total Length (G) N/A 1.378 in35 mm 82.5
SH2-30RH $82.50 CAD N/A Transverse Module N/A 2 No. of Teeth N/A 30 Direction of Helix N/A Right Hand Shape N/A S1 Bore Diameter (A) N/A 0.472 in12 mm Pitch Diameter (C) N/A 2.446 in62.12 mm Outer Diameter (D) N/A 2.603 in66.12 mm Total Length (G) N/A 1.378 in35 mm 82.5
SH2-40LH $108.70 CAD N/A Transverse Module N/A 2 No. of Teeth N/A 40 Direction of Helix N/A Left Hand Shape N/A S1 Bore Diameter (A) N/A 0.709 in18 mm Pitch Diameter (C) N/A 3.261 in82.82 mm Outer Diameter (D) N/A 3.418 in86.82 mm Total Length (G) N/A 1.378 in35 mm 108.7
SH2-40RH $108.70 CAD N/A Transverse Module N/A 2 No. of Teeth N/A 40 Direction of Helix N/A Right Hand Shape N/A S1 Bore Diameter (A) N/A 0.709 in18 mm Pitch Diameter (C) N/A 3.261 in82.82 mm Outer Diameter (D) N/A 3.418 in86.82 mm Total Length (G) N/A 1.378 in35 mm 108.7
SH2-60LH $191.10 CAD N/A Transverse Module N/A 2 No. of Teeth N/A 60 Direction of Helix N/A Left Hand Shape N/A S1 Bore Diameter (A) N/A 0.709 in18 mm Pitch Diameter (C) N/A 4.891 in124.23 mm Outer Diameter (D) N/A 5.048 in128.23 mm Total Length (G) N/A 1.378 in35 mm 191.1
SH2-60RH $191.10 CAD N/A Transverse Module N/A 2 No. of Teeth N/A 60 Direction of Helix N/A Right Hand Shape N/A S1 Bore Diameter (A) N/A 0.709 in18 mm Pitch Diameter (C) N/A 4.891 in124.23 mm Outer Diameter (D) N/A 5.048 in128.23 mm Total Length (G) N/A 1.378 in35 mm 191.1
SH3-15L $47.79 CAD N/A CAD Icon (for items table) Transverse Module N/A 3 No. of Teeth N/A 15 Direction of Helix N/A Left Hand Shape N/A S1 Bore Diameter (A) N/A 0.591 in15 mm Pitch Diameter (C) N/A 1.834 in46.59 mm Outer Diameter (D) N/A 2.070 in52.59 mm Total Length (G) N/A 1.969 in50 mm Internal ID N/A
10054 		47.79
SH3-15R $47.79 CAD N/A CAD Icon (for items table) Transverse Module N/A 3 No. of Teeth N/A 15 Direction of Helix N/A Right Hand Shape N/A S1 Bore Diameter (A) N/A 0.591 in15 mm Pitch Diameter (C) N/A 1.834 in46.59 mm Outer Diameter (D) N/A 2.070 in52.59 mm Total Length (G) N/A 1.969 in50 mm Internal ID N/A
10055 		47.79
SH3-20L $68.93 CAD N/A CAD Icon (for items table) Transverse Module N/A 3 No. of Teeth N/A 20 Direction of Helix N/A Left Hand Shape N/A S1 Bore Diameter (A) N/A 0.591 in15 mm Pitch Diameter (C) N/A 2.446 in62.12 mm Outer Diameter (D) N/A 2.682 in68.12 mm Total Length (G) N/A 1.969 in50 mm Internal ID N/A
10056 		68.93
1 - 25 of 42 | Results Per Page | View | Unit of Measure
1 2
*
