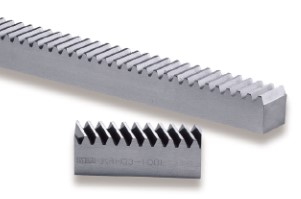

Ground Helical Racks (KRHG - KRHGF - KRHGFD)


Email This Page Download PDF Download PDF Printable Page
Ground Helical Racks (KRHG - KRHGF - KRHGFD) Helical Gears
  • Ground-Helical-Racks--KRHG---KRHGF---KRHGFD-/Asset/Ground-Helical-Racks--KRHG---KRHGF---KRHGFD-.jpg
  • Ground-Helical-Racks--KRHG---KRHGF---KRHGFD-_DIm
  • Ground-Helical-Racks--KRHG---KRHGF---KRHGFD-/Asset/Ground-Helical-Racks--KRHG---KRHGF---KRHGFD-.jpg
  • Ground-Helical-Racks--KRHG---KRHGF---KRHGFD-_DIm
Excellent products with high precision and strength, and low noise and abrasion characteristics.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
1 - 25 of 30 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items Search by Specification
Clear Filter

Transverse Module

Effective Number of Teeth

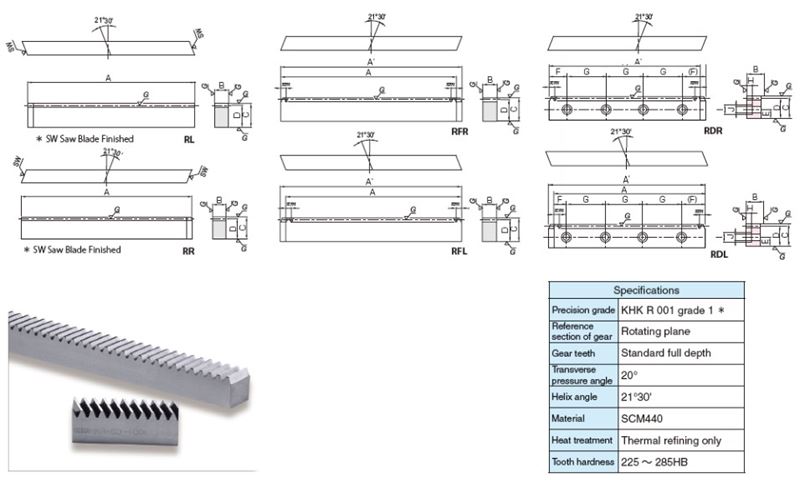

Shape

Total Length Rack (A) (in)

Total Length Rack (A) (mm)

Face Width (B) (in)

Face Width (B) (mm)

Item #

Sell Price

CAD

Transverse Module

Effective Number of Teeth

Shape

Total Length Rack (A)

Face Width (B)

Internal ID

Sell Price 1 Value

KRHG1-100L $168.09 CAD N/A CAD Icon (for items table) Transverse Module N/A 1 Effective Number of Teeth N/A 28 Shape N/A RL Total Length Rack (A) N/A 3.858 in98 mm Face Width (B) N/A 0.315 in8 mm Internal ID N/A
4854 		168.09
KRHG1-100R $168.09 CAD N/A CAD Icon (for items table) Transverse Module N/A 1 Effective Number of Teeth N/A 28 Shape N/A RR Total Length Rack (A) N/A 3.858 in98 mm Face Width (B) N/A 0.315 in8 mm Internal ID N/A
4855 		168.09
KRHGF1-500L $618.85 CAD N/A CAD Icon (for items table) Transverse Module N/A 1 Effective Number of Teeth N/A 159 Shape N/A RFL Total Length Rack (A) N/A 19.666 in499.51 mm Face Width (B) N/A 0.315 in8 mm Internal ID N/A
4864 		618.85
KRHGF1-500R $618.85 CAD N/A CAD Icon (for items table) Transverse Module N/A 1 Effective Number of Teeth N/A 159 Shape N/A RFR Total Length Rack (A) N/A 19.666 in499.51 mm Face Width (B) N/A 0.315 in8 mm Internal ID N/A
4865 		618.85
KRHGFD1-500LJ $669.00 CAD N/A CAD Icon (for items table) Transverse Module N/A 1 Effective Number of Teeth N/A 159 Shape N/A RDL Total Length Rack (A) N/A 19.666 in499.51 mm Face Width (B) N/A 0.315 in8 mm Internal ID N/A
4874 		669
KRHGFD1-500RJ $669.00 CAD N/A CAD Icon (for items table) Transverse Module N/A 1 Effective Number of Teeth N/A 159 Shape N/A RDR Total Length Rack (A) N/A 19.666 in499.51 mm Face Width (B) N/A 0.315 in8 mm Internal ID N/A
4875 		669
KRHG1.5-100L $159.75 CAD N/A CAD Icon (for items table) Transverse Module N/A 1.5 Effective Number of Teeth N/A 19 Shape N/A RL Total Length Rack (A) N/A 3.976 in101 mm Face Width (B) N/A 0.472 in12 mm Internal ID N/A
4856 		159.75
KRHG1.5-100R $159.75 CAD N/A CAD Icon (for items table) Transverse Module N/A 1.5 Effective Number of Teeth N/A 19 Shape N/A RR Total Length Rack (A) N/A 3.976 in101 mm Face Width (B) N/A 0.472 in12 mm Internal ID N/A
4857 		159.75
KRHGF1.5-500L $595.95 CAD N/A CAD Icon (for items table) Transverse Module N/A 1.5 Effective Number of Teeth N/A 106 Shape N/A RFL Total Length Rack (A) N/A 19.666 in499.51 mm Face Width (B) N/A 0.472 in12 mm Internal ID N/A
4866 		595.95
KRHGF1.5-500R $595.95 CAD N/A CAD Icon (for items table) Transverse Module N/A 1.5 Effective Number of Teeth N/A 106 Shape N/A RFR Total Length Rack (A) N/A 19.666 in499.51 mm Face Width (B) N/A 0.472 in12 mm Internal ID N/A
4867 		595.95
KRHGFD1.5-500LJ $648.60 CAD N/A CAD Icon (for items table) Transverse Module N/A 1.5 Effective Number of Teeth N/A 106 Shape N/A RDL Total Length Rack (A) N/A 19.666 in499.51 mm Face Width (B) N/A 0.472 in12 mm Internal ID N/A
4876 		648.6
KRHGFD1.5-500RJ $648.60 CAD N/A CAD Icon (for items table) Transverse Module N/A 1.5 Effective Number of Teeth N/A 106 Shape N/A RDR Total Length Rack (A) N/A 19.666 in499.51 mm Face Width (B) N/A 0.472 in12 mm Internal ID N/A
4877 		648.6
KRHG2-100L $9,876.54 CAD N/A CAD Icon (for items table) Transverse Module N/A 2 Effective Number of Teeth N/A 13 Shape N/A RL Total Length Rack (A) N/A 3.858 in98 mm Face Width (B) N/A 0.630 in16 mm Internal ID N/A
4858 		9876.54
KRHG2-100R $9,876.54 CAD N/A CAD Icon (for items table) Transverse Module N/A 2 Effective Number of Teeth N/A 13 Shape N/A RR Total Length Rack (A) N/A 3.858 in98 mm Face Width (B) N/A 0.630 in16 mm Internal ID N/A
4859 		9876.54
KRHGF2-1000L $1,152.93 CAD N/A CAD Icon (for items table) Transverse Module N/A 2 Effective Number of Teeth N/A 160 Shape N/A RFL Total Length Rack (A) N/A 39.579 in1005.31 mm Face Width (B) N/A 0.630 in16 mm Internal ID N/A
4868 		1152.93
KRHGF2-1000R $1,152.93 CAD N/A CAD Icon (for items table) Transverse Module N/A 2 Effective Number of Teeth N/A 160 Shape N/A RFR Total Length Rack (A) N/A 39.579 in1005.31 mm Face Width (B) N/A 0.630 in16 mm Internal ID N/A
4869 		1152.93
KRHGFD2-1000LJ $1,217.20 CAD N/A CAD Icon (for items table) Transverse Module N/A 2 Effective Number of Teeth N/A 160 Shape N/A RDL Total Length Rack (A) N/A 39.579 in1005.31 mm Face Width (B) N/A 0.630 in16 mm Internal ID N/A
4878 		1217.2
KRHGFD2-1000RJ $1,217.20 CAD N/A CAD Icon (for items table) Transverse Module N/A 2 Effective Number of Teeth N/A 160 Shape N/A RDR Total Length Rack (A) N/A 39.579 in1005.31 mm Face Width (B) N/A 0.630 in16 mm Internal ID N/A
4879 		1217.2
KRHG2.5-100L $9,876.54 CAD N/A CAD Icon (for items table) Transverse Module N/A 2.5 Effective Number of Teeth N/A 10 Shape N/A RL Total Length Rack (A) N/A 3.937 in100 mm Face Width (B) N/A 0.787 in20 mm Internal ID N/A
4860 		9876.54
KRHG2.5-100R $9,876.54 CAD N/A CAD Icon (for items table) Transverse Module N/A 2.5 Effective Number of Teeth N/A 10 Shape N/A RR Total Length Rack (A) N/A 3.937 in100 mm Face Width (B) N/A 0.787 in20 mm Internal ID N/A
4861 		9876.54
KRHGF2.5-1000L $1,271.26 CAD N/A CAD Icon (for items table) Transverse Module N/A 2.5 Effective Number of Teeth N/A 128 Shape N/A RFL Total Length Rack (A) N/A 39.579 in1005.31 mm Face Width (B) N/A 0.787 in20 mm Internal ID N/A
4870 		1271.26
KRHGF2.5-1000R $1,271.26 CAD N/A CAD Icon (for items table) Transverse Module N/A 2.5 Effective Number of Teeth N/A 128 Shape N/A RFR Total Length Rack (A) N/A 39.579 in1005.31 mm Face Width (B) N/A 0.787 in20 mm Internal ID N/A
4871 		1271.26
KRHGFD2.5-1000LJ $1,337.60 CAD N/A CAD Icon (for items table) Transverse Module N/A 2.5 Effective Number of Teeth N/A 128 Shape N/A RDL Total Length Rack (A) N/A 39.579 in1005.31 mm Face Width (B) N/A 0.787 in20 mm Internal ID N/A
4880 		1337.6
KRHGFD2.5-1000RJ $1,337.60 CAD N/A CAD Icon (for items table) Transverse Module N/A 2.5 Effective Number of Teeth N/A 128 Shape N/A RDR Total Length Rack (A) N/A 39.579 in1005.31 mm Face Width (B) N/A 0.787 in20 mm Internal ID N/A
4881 		1337.6
KRHG3-100L $9,876.54 CAD N/A CAD Icon (for items table) Transverse Module N/A 3 Effective Number of Teeth N/A 8 Shape N/A RL Total Length Rack (A) N/A 4.016 in102 mm Face Width (B) N/A 0.984 in25 mm Internal ID N/A
4862 		9876.54
1 - 25 of 30 | Results Per Page | View | Unit of Measure
1 2
*
