Ground Helical Gears (ZSTP) On KHK Gears

SV and SVI series are made according to the automotive involute spline standard; Involute spline shafts and bushings are thermal refined to have good abrasion-resistance.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.

1 - 25 of 240 | Results Per Page | View | Unit of Measure

1 2 3 4 5 »

Request Information Compare Items Search by Specification

Clear Filter

Module

No. of teeth

Shape

Bore (A) (in)

Bore (A) (mm)

Pitch Diameter (C) (in)

Pitch Diameter (C) (mm)

Outer Diameter (D) (in)

Outer Diameter (D) (mm)

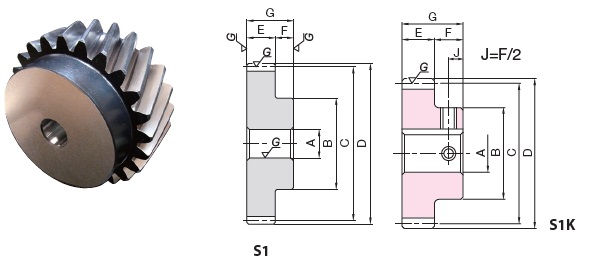

Item #	Sell Price	CAD	Module	No. of teeth	Bore (A)	Pitch Diameter (C)	Outer Diameter (D)	Internal ID	Sell Price 1 Value

ZSTP2-18L	$107.69	N/A	N/A 2	N/A 18	N/A 0.472 in12 mm	N/A 1.504 in38.2 mm	N/A 1.732 in44 mm	N/A 31526	107.69
ZSTP2-18LE15	$343.00	N/A	N/A 2	N/A 18	N/A 0.591 in15 mm	N/A 1.504 in38.2 mm	N/A 1.732 in44 mm	N/A 31527	343
ZSTP2-18LJ12	$145.90	N/A	N/A 2	N/A 18	N/A 0.472 in12 mm	N/A 1.504 in38.2 mm	N/A 1.732 in44 mm	N/A 31528	145.9
ZSTP2-18LJ14	$155.70	N/A	N/A 2	N/A 18	N/A 0.551 in14 mm	N/A 1.504 in38.2 mm	N/A 1.732 in44 mm	N/A 31529	155.7
ZSTP2-18LJ15	$155.70	N/A	N/A 2	N/A 18	N/A 0.591 in15 mm	N/A 1.504 in38.2 mm	N/A 1.732 in44 mm	N/A 31530	155.7
ZSTP2-18LJ16	$155.70	N/A	N/A 2	N/A 18	N/A 0.630 in16 mm	N/A 1.504 in38.2 mm	N/A 1.732 in44 mm	N/A 31531	155.7
ZSTP2-18LJ17	$155.70	N/A	N/A 2	N/A 18	N/A 0.669 in17 mm	N/A 1.504 in38.2 mm	N/A 1.732 in44 mm	N/A 31532	155.7
ZSTP2-24L	$133.27	N/A	N/A 2	N/A 24	N/A 0.591 in15 mm	N/A 2.005 in50.93 mm	N/A 2.205 in56 mm	N/A 31533	133.27
ZSTP2-24LE15	$366.10	N/A	N/A 2	N/A 24	N/A 0.591 in15 mm	N/A 2.005 in50.93 mm	N/A 2.205 in56 mm	N/A 31534	366.1
ZSTP2-24LE19	$370.70	N/A	N/A 2	N/A 24	N/A 0.748 in19 mm	N/A 2.005 in50.93 mm	N/A 2.205 in56 mm	N/A 31535	370.7
ZSTP2-24LE20	$373.20	N/A	N/A 2	N/A 24	N/A 0.787 in20 mm	N/A 2.005 in50.93 mm	N/A 2.205 in56 mm	N/A 31536	373.2
ZSTP2-24LE22	$381.30	N/A	N/A 2	N/A 24	N/A 0.866 in22 mm	N/A 2.005 in50.93 mm	N/A 2.205 in56 mm	N/A 31537	381.3
ZSTP2-24LE24	$387.70	N/A	N/A 2	N/A 30	N/A 0.945 in24 mm	N/A 2.005 in50.93 mm	N/A 2.205 in56 mm	N/A 31538	387.7
ZSTP2-24LJ15	$176.50	N/A	N/A 2	N/A 24	N/A 0.591 in15 mm	N/A 2.005 in50.93 mm	N/A 2.205 in56 mm	N/A 31539	176.5
ZSTP2-24LJ16	$188.50	N/A	N/A 2	N/A 24	N/A 0.630 in16 mm	N/A 2.005 in50.93 mm	N/A 2.205 in56 mm	N/A 31540	188.5
ZSTP2-24LJ17	$188.50	N/A	N/A 2	N/A 24	N/A 0.669 in17 mm	N/A 2.005 in50.93 mm	N/A 2.205 in56 mm	N/A 31541	188.5
ZSTP2-24LJ18	$188.50	N/A	N/A 2	N/A 24	N/A 0.709 in18 mm	N/A 2.005 in50.93 mm	N/A 2.205 in56 mm	N/A 31542	188.5
ZSTP2-24LJ19	$188.50	N/A	N/A 2	N/A 24	N/A 0.748 in19 mm	N/A 2.005 in50.93 mm	N/A 2.205 in56 mm	N/A 31543	188.5
ZSTP2-24LJ20	$188.50	N/A	N/A 2	N/A 24	N/A 0.787 in20 mm	N/A 2.005 in50.93 mm	N/A 2.205 in56 mm	N/A 31544	188.5
ZSTP2-24LJ22	$188.50	N/A	N/A 2	N/A 24	N/A 0.866 in22 mm	N/A 2.005 in50.93 mm	N/A 2.205 in56 mm	N/A 31545	188.5
ZSTP2-24LJ25	$188.50	N/A	N/A 2	N/A 24	N/A 0.984 in25 mm	N/A 2.005 in50.93 mm	N/A 2.205 in56 mm	N/A 31546	188.5
ZSTP2-30L	$164.76	N/A	N/A 2	N/A 30	N/A 0.709 in18 mm	N/A 2.506 in63.66 mm	N/A 2.677 in68 mm	N/A 31547	164.76
ZSTP2-30LE15	$395.90	N/A	N/A 2	N/A 30	N/A 0.591 in15 mm	N/A 2.506 in63.66 mm	N/A 2.677 in68 mm	N/A 31548	395.9
ZSTP2-30LE19	$400.40	N/A	N/A 2	N/A 30	N/A 0.748 in19 mm	N/A 2.506 in63.66 mm	N/A 2.677 in68 mm	N/A 31549	400.4
ZSTP2-30LE20	$402.90	N/A	N/A 2	N/A 30	N/A 0.787 in20 mm	N/A 2.506 in63.66 mm	N/A 2.677 in68 mm	N/A 31550	402.9
