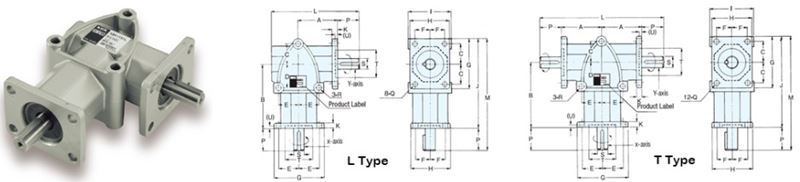

Bevel Gearboxes (KBX) On KHK Gears

Duplex worm wheels made of aluminum bronze, excellent in wear-resistance. The pitch accuracy is first grade.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.

1 - 12 of 12 | Results Per Page | View | Unit of Measure

Request Information Compare Items

Clear Filter

Shaft Diameter (in)

Shaft Diameter (mm)

Nominal Ratio

Item #	Sell Price	CAD	Gear Box Shape (L or T)	Shaft Diameter	Speed Ratio	Internal ID	Sell Price 1 Value

KBX-101L	$255.25	N/A	N/A L Type	N/A 0.394 in10 mm	N/A 1:1	N/A 2797	255.25
KBX-101T	$273.74	N/A	N/A T Type	N/A 0.394 in10 mm	N/A 1:1	N/A 2798	273.74
KBX-102L	$255.25	N/A	N/A L Type	N/A 0.394 in10 mm	N/A 1:2	N/A 2799	255.25
KBX-102T	$273.74	N/A	N/A T Type	N/A 0.394 in10 mm	N/A 1:2	N/A 2800	273.74
KBX-151L	$411.53	N/A	N/A L Type	N/A 0.591 in15 mm	N/A 1:1	N/A 2801	411.53
KBX-151T	$450.22	N/A	N/A T Type	N/A 0.591 in15 mm	N/A 1:1	N/A 2802	450.22
KBX-152L	$411.53	N/A	N/A L Type	N/A 0.591 in15 mm	N/A 1:2	N/A 2803	411.53
KBX-152T	$450.22	N/A	N/A T Type	N/A 0.591 in15 mm	N/A 1:2	N/A 2804	450.22
KBX-201L	$686.57	N/A	N/A L Type	N/A 0.787 in20 mm	N/A 1:1	N/A 2805	686.57
KBX-201T	$722.70	N/A	N/A T Type	N/A 0.787 in20 mm	N/A 1:1	N/A 2806	722.7
KBX-202L	$686.57	N/A	N/A L Type	N/A 0.787 in20 mm	N/A 1:2	N/A 2807	686.57
KBX-202T	$722.70	N/A	N/A T Type	N/A 0.787 in20 mm	N/A 1:2	N/A 2808	722.7

1 - 12 of 12 | Results Per Page | View | Unit of Measure
