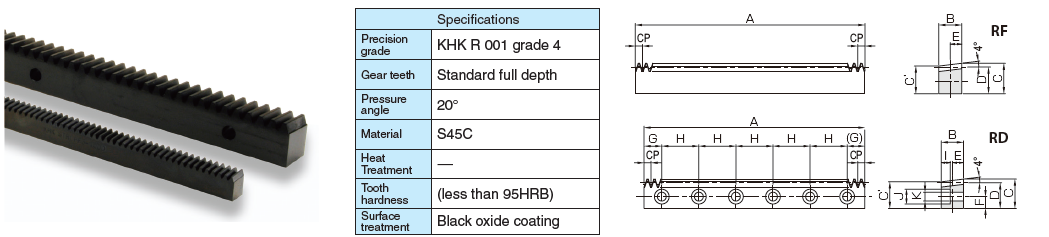

CP Tapered Racks (STRCPF - STRCPFD)
CP Rack & Pinions
By pairing with KTSCP pinion, the backlash may be adjusted.
Item # |
Sell Price |
CAD |
Module |
Effective No. of Teeth |
Shape |
Total Length Rack (A) |
Face Width (B) |
Height (C) |
Height To Pitch Line (D) |
Internal ID |
Sell Price 1 Value |
|---|---|---|---|---|---|---|---|---|---|---|---|
| STRCPF5-1000 | $279.52 |
CAD
N/A
|
Module N/A 1.5915 | Effective No. of Teeth N/A 200 | Shape N/A RF | Total Length Rack (A) N/A 39.370 in1000 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.768 in19.5 mm | Height To Pitch Line (D) N/A 0.684 in17.38 mm |
Internal ID
N/A
28682 |
279.52 |
| STRCPFD5-1000 | $300.52 |
CAD
N/A
|
Module N/A 1.5915 | Effective No. of Teeth N/A 200 | Shape N/A RD | Total Length Rack (A) N/A 39.370 in1000 mm | Face Width (B) N/A 0.591 in15 mm | Height (C) N/A 0.768 in19.5 mm | Height To Pitch Line (D) N/A 0.684 in17.38 mm |
Internal ID
N/A
28684 |
300.52 |
| STRCPF10-1000 | $469.58 |
CAD
N/A
|
Module N/A 3.1831 | Effective No. of Teeth N/A 100 | Shape N/A RF | Total Length Rack (A) N/A 39.370 in1000 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.358 in34.5 mm | Height To Pitch Line (D) N/A 1.192 in30.27 mm |
Internal ID
N/A
28681 |
469.58 |
| STRCPFD10-1000 | $517.01 |
CAD
N/A
|
Module N/A 3.1831 | Effective No. of Teeth N/A 100 | Shape N/A RD | Total Length Rack (A) N/A 39.370 in1000 mm | Face Width (B) N/A 1.181 in30 mm | Height (C) N/A 1.358 in34.5 mm | Height To Pitch Line (D) N/A 1.192 in30.27 mm |
Internal ID
N/A
28683 |
517.01 |
