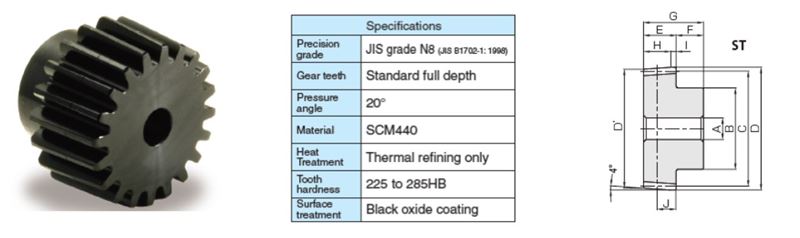

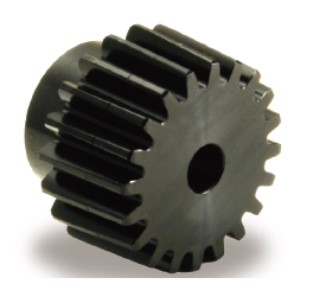

CP Tapered Pinions (KTSCP)
CP Rack & Pinions
By pairing with STRCPF rack, the backlash may be adjusted.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Item # |
Sell Price |
CAD |
Module |
Circular Pitch |
No. of Teeth |
Shape |
Bore Diameter (A) |
Pitch Diameter (C) |
Outer Diameter (D) |
Total Length (G) |
Internal ID |
Sell Price 1 Value |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KTSCP5-20 | $50.68 |
CAD
N/A
|
Module N/A 1.5915 | Circular Pitch N/A 5 | No. of Teeth N/A 20 | Shape N/A ST | Bore Diameter (A) N/A 0.315 in8 mm | Pitch Diameter (C) N/A 1.253 in31.83 mm | Outer Diameter (D) N/A 1.420 in36.06 mm | Total Length (G) N/A 1.299 in33 mm |
Internal ID
N/A
5797 |
50.68 |
| KTSCP5-25 | $9,876.54 |
CAD
N/A
|
Module N/A 1.5915 | Circular Pitch N/A 5 | No. of Teeth N/A 25 | Shape N/A ST | Bore Diameter (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.567 in39.79 mm | Outer Diameter (D) N/A 1.733 in44.02 mm | Total Length (G) N/A 1.299 in33 mm |
Internal ID
N/A
5798 |
9876.54 |
| KTSCP5-30 | $70.21 |
CAD
N/A
|
Module N/A 1.5915 | Circular Pitch N/A 5 | No. of Teeth N/A 30 | Shape N/A ST | Bore Diameter (A) N/A 0.394 in10 mm | Pitch Diameter (C) N/A 1.880 in47.75 mm | Outer Diameter (D) N/A 2.046 in51.98 mm | Total Length (G) N/A 1.299 in33 mm |
Internal ID
N/A
5799 |
70.21 |
| KTSCP5-40 | $91.43 |
CAD
N/A
|
Module N/A 1.5915 | Circular Pitch N/A 5 | No. of Teeth N/A 40 | Shape N/A ST | Bore Diameter (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 2.506 in63.66 mm | Outer Diameter (D) N/A 2.673 in67.89 mm | Total Length (G) N/A 1.299 in33 mm |
Internal ID
N/A
5800 |
91.43 |
| KTSCP10-20 | $103.29 |
CAD
N/A
|
Module N/A 3.1831 | Circular Pitch N/A 10 | No. of Teeth N/A 20 | Shape N/A ST | Bore Diameter (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 2.506 in63.66 mm | Outer Diameter (D) N/A 2.840 in72.13 mm | Total Length (G) N/A 2.205 in56 mm |
Internal ID
N/A
5793 |
103.29 |
| KTSCP10-25 | $139.29 |
CAD
N/A
|
Module N/A 3.1831 | Circular Pitch N/A 10 | No. of Teeth N/A 25 | Shape N/A ST | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.133 in79.58 mm | Outer Diameter (D) N/A 3.466 in88.04 mm | Total Length (G) N/A 2.205 in56 mm |
Internal ID
N/A
5794 |
139.29 |
| KTSCP10-30 | $177.91 |
CAD
N/A
|
Module N/A 3.1831 | Circular Pitch N/A 10 | No. of Teeth N/A 30 | Shape N/A ST | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 3.759 in95.49 mm | Outer Diameter (D) N/A 4.093 in103.96 mm | Total Length (G) N/A 2.205 in56 mm |
Internal ID
N/A
5795 |
177.91 |
| KTSCP10-40 | $9,876.54 |
CAD
N/A
|
Module N/A 3.1831 | Circular Pitch N/A 10 | No. of Teeth N/A 40 | Shape N/A ST | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 5.013 in127.32 mm | Outer Diameter (D) N/A 5.346 in135.79 mm | Total Length (G) N/A 2.205 in56 mm |
Internal ID
N/A
5796 |
9876.54 |
