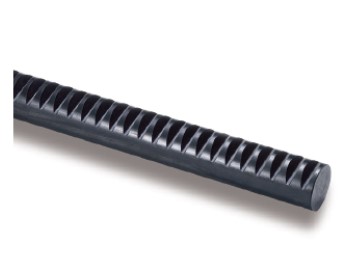

CP Round Racks (SROCP)
CP Rack & Pinions
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Item # |
Sell Price |
CAD |
Module |
Circular Pitch |
Effective Number of Teeth |

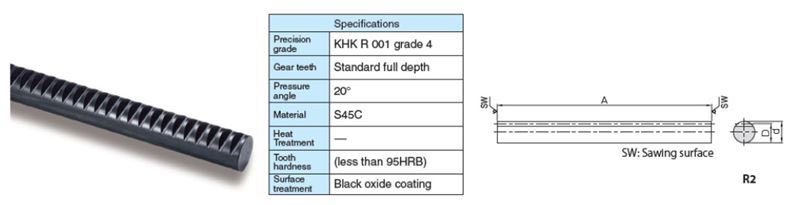

Shape |
Total Length Rack (A) |
Outer Diameter (d) |
Height To Pitch Line (D) |
Internal ID |
Sell Price 1 Value |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SROCP2.5-500 | $97.62 |
CAD
N/A
|
Module N/A 0.7958 | Circular Pitch N/A 2.5 | Effective Number of Teeth N/A 200 | Shape N/A R2 | Total Length Rack (A) N/A 19.882 in505 mm | Outer Diameter (d) N/A 0.394 in10 mm | Height To Pitch Line (D) N/A 0.362 in9.2 mm |
Internal ID
N/A
11435 |
97.62 |
| SROCP5-500 | $103.52 |
CAD
N/A
|
Module N/A 1.5915 | Circular Pitch N/A 5 | Effective Number of Teeth N/A 99 | Shape N/A R2 | Total Length Rack (A) N/A 19.882 in505 mm | Outer Diameter (d) N/A 0.591 in15 mm | Height To Pitch Line (D) N/A 0.528 in13.41 mm |
Internal ID
N/A
11436 |
103.52 |
| SROCP10-1000 | $379.81 |
CAD
N/A
|
Module N/A 3.1831 | Circular Pitch N/A 10 | Effective Number of Teeth N/A 99 | Shape N/A R2 | Total Length Rack (A) N/A 39.764 in1010 mm | Outer Diameter (d) N/A 1.181 in30 mm | Height To Pitch Line (D) N/A 1.056 in26.82 mm |
Internal ID
N/A
11434 |
379.81 |
