CP Hardened Ground Racks (SRGCP - SRGCPF - SRGCPFD)


Email This Page Download PDF Download PDF Printable Page

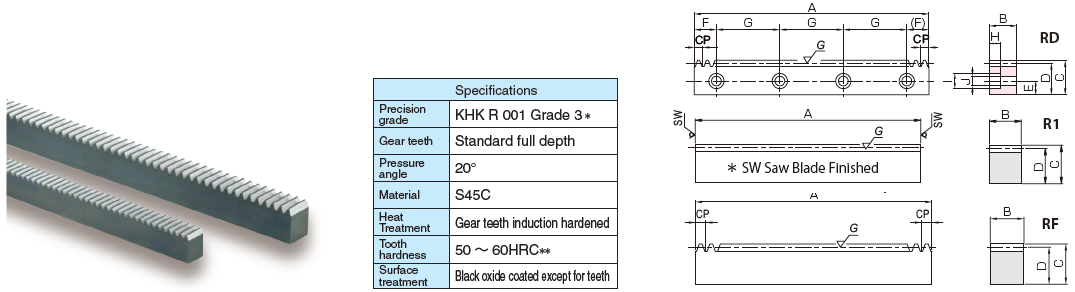

CP Hardened Ground Racks (SRGCP - SRGCPF - SRGCPFD) CP Rack & Pinions
  • SRGCP---SRGCPF---SRGCPFD---Category/Asset/SRGCP---SRGCPF---SRGCPFD---Category.png
  • CP-Hardened-Ground-Racks--SRGCP---SRGCPF---SRGCPFD-
  • SRGCP---SRGCPF---SRGCPFD---Category/Asset/SRGCP---SRGCPF---SRGCPFD---Category.png
  • CP-Hardened-Ground-Racks--SRGCP---SRGCPF---SRGCPFD-
High strength and abrasion-resistant for precision linear motion.
1 - 20 of 20 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items
Clear Filter

Module

Effective No. of Teeth

Shape

Total Length Rack (A) (in)

Total Length Rack (A) (mm)

Face Width (B) (in)

Face Width (B) (mm)

Height (C) (in)

Height (C) (mm)

Height To Pitch Line (D) (in)

Height To Pitch Line (D) (mm)

Item #

Sell Price

CAD

Module

Effective No. of Teeth

Shape

Total Length Rack (A)

Face Width (B)

Height (C)

Height To Pitch Line (D)

Internal ID

Sell Price 1 Value

SRGCP5-100 $89.90 CAD N/A CAD Icon (for items table) Module N/A 1.5915 Effective No. of Teeth N/A 18 Shape N/A R1 Total Length Rack (A) N/A 3.858 in98 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.725 in18.41 mm Internal ID N/A
11343 		89.9
SRGCPF5-1000 $734.72 CAD N/A CAD Icon (for items table) Module N/A 1.5915 Effective No. of Teeth N/A 200 Shape N/A RF Total Length Rack (A) N/A 39.370 in1000 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.725 in18.41 mm Internal ID N/A
11350 		734.72
SRGCPF5-500 $399.32 CAD N/A CAD Icon (for items table) Module N/A 1.5915 Effective No. of Teeth N/A 100 Shape N/A RF Total Length Rack (A) N/A 19.685 in500 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.725 in18.41 mm Internal ID N/A
11351 		399.32
SRGCPFD5-1000J $792.70 CAD N/A CAD Icon (for items table) Module N/A 1.5915 Effective No. of Teeth N/A 200 Shape N/A RD Total Length Rack (A) N/A 39.370 in1000 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.725 in18.41 mm Internal ID N/A
11358 		792.7
SRGCPFD5-500J $452.10 CAD N/A CAD Icon (for items table) Module N/A 1.5915 Effective No. of Teeth N/A 100 Shape N/A RD Total Length Rack (A) N/A 19.685 in500 mm Face Width (B) N/A 0.591 in15 mm Height (C) N/A 0.787 in20 mm Height To Pitch Line (D) N/A 0.725 in18.41 mm Internal ID N/A
11359 		452.1
SRGCP10-100 $109.71 CAD N/A CAD Icon (for items table) Module N/A 3.1831 Effective No. of Teeth N/A 8 Shape N/A R1 Total Length Rack (A) N/A 3.858 in98 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.253 in31.82 mm Internal ID N/A
11340 		109.71
SRGCPF10-1000 $898.44 CAD N/A CAD Icon (for items table) Module N/A 3.1831 Effective No. of Teeth N/A 100 Shape N/A RF Total Length Rack (A) N/A 39.370 in1000 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.253 in31.82 mm Internal ID N/A
11344 		898.44
SRGCPF10-500 $515.88 CAD N/A CAD Icon (for items table) Module N/A 3.1831 Effective No. of Teeth N/A 50 Shape N/A RF Total Length Rack (A) N/A 19.685 in500 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.253 in31.82 mm Internal ID N/A
11345 		515.88
SRGCPFD10-1000J $972.00 CAD N/A CAD Icon (for items table) Module N/A 3.1831 Effective No. of Teeth N/A 100 Shape N/A RD Total Length Rack (A) N/A 39.370 in1000 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.253 in31.82 mm Internal ID N/A
11352 		972
SRGCPFD10-500J $584.10 CAD N/A CAD Icon (for items table) Module N/A 3.1831 Effective No. of Teeth N/A 50 Shape N/A RD Total Length Rack (A) N/A 19.685 in500 mm Face Width (B) N/A 1.181 in30 mm Height (C) N/A 1.378 in35 mm Height To Pitch Line (D) N/A 1.253 in31.82 mm Internal ID N/A
11353 		584.1
SRGCP15-100 $179.86 CAD N/A CAD Icon (for items table) Module N/A 4.7746 Effective No. of Teeth N/A 5 Shape N/A R1 Total Length Rack (A) N/A 4.055 in103 mm Face Width (B) N/A 1.969 in50 mm Height (C) N/A 1.969 in50 mm Height To Pitch Line (D) N/A 1.781 in45.23 mm Internal ID N/A
11341 		179.86
SRGCPF15-1000 $1,318.79 CAD N/A CAD Icon (for items table) Module N/A 4.7746 Effective No. of Teeth N/A 67 Shape N/A RF Total Length Rack (A) N/A 39.567 in1005 mm Face Width (B) N/A 1.969 in50 mm Height (C) N/A 1.969 in50 mm Height To Pitch Line (D) N/A 1.781 in45.23 mm Internal ID N/A
11346 		1318.79
SRGCPF15-500 $9,876.54 CAD N/A CAD Icon (for items table) Module N/A 4.7746 Effective No. of Teeth N/A 33 Shape N/A RF Total Length Rack (A) N/A 19.488 in495 mm Face Width (B) N/A 1.969 in50 mm Height (C) N/A 1.969 in50 mm Height To Pitch Line (D) N/A 1.781 in45.23 mm Internal ID N/A
11347 		9876.54
SRGCPFD15-1000J $1,381.00 CAD N/A CAD Icon (for items table) Module N/A 4.7746 Effective No. of Teeth N/A 67 Shape N/A RD Total Length Rack (A) N/A 39.567 in1005 mm Face Width (B) N/A 1.969 in50 mm Height (C) N/A 1.969 in50 mm Height To Pitch Line (D) N/A 1.781 in45.23 mm Internal ID N/A
11354 		1381
SRGCPFD15-500J $9,876.54 CAD N/A CAD Icon (for items table) Module N/A 4.7746 Effective No. of Teeth N/A 33 Shape N/A RD Total Length Rack (A) N/A 19.488 in495 mm Face Width (B) N/A 1.969 in50 mm Height (C) N/A 1.969 in50 mm Height To Pitch Line (D) N/A 1.781 in45.23 mm Internal ID N/A
11355 		9876.54
SRGCP20-100 $231.21 CAD N/A CAD Icon (for items table) Module N/A 6.3662 Effective No. of Teeth N/A 3 Shape N/A R1 Total Length Rack (A) N/A 3.858 in98 mm Face Width (B) N/A 2.362 in60 mm Height (C) N/A 2.362 in60 mm Height To Pitch Line (D) N/A 2.111 in53.63 mm Internal ID N/A
11342 		231.21
SRGCPF20-1000 $1,697.71 CAD N/A CAD Icon (for items table) Module N/A 6.3662 Effective No. of Teeth N/A 50 Shape N/A RF Total Length Rack (A) N/A 39.370 in1000 mm Face Width (B) N/A 2.362 in60 mm Height (C) N/A 2.362 in60 mm Height To Pitch Line (D) N/A 2.111 in53.63 mm Internal ID N/A
11348 		1697.71
SRGCPF20-500 $9,876.54 CAD N/A CAD Icon (for items table) Module N/A 6.3662 Effective No. of Teeth N/A 25 Shape N/A RF Total Length Rack (A) N/A 19.685 in500 mm Face Width (B) N/A 2.362 in60 mm Height (C) N/A 2.362 in60 mm Height To Pitch Line (D) N/A 2.111 in53.63 mm Internal ID N/A
11349 		9876.54
SRGCPFD20-1000J $1,759.50 CAD N/A CAD Icon (for items table) Module N/A 6.3662 Effective No. of Teeth N/A 50 Shape N/A RD Total Length Rack (A) N/A 39.370 in1000 mm Face Width (B) N/A 2.362 in60 mm Height (C) N/A 2.362 in60 mm Height To Pitch Line (D) N/A 2.111 in53.63 mm Internal ID N/A
11356 		1759.5
SRGCPFD20-500J $9,876.54 CAD N/A CAD Icon (for items table) Module N/A 6.3662 Effective No. of Teeth N/A 25 Shape N/A RD Total Length Rack (A) N/A 19.685 in500 mm Face Width (B) N/A 2.362 in60 mm Height (C) N/A 2.362 in60 mm Height To Pitch Line (D) N/A 2.111 in53.63 mm Internal ID N/A
11357 		9876.54
1 - 20 of 20 | Results Per Page | View | Unit of Measure
1
*
