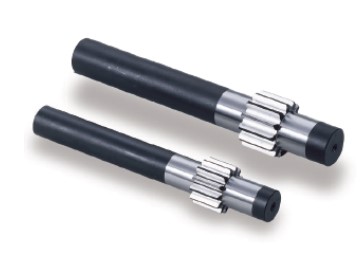

CP Ground Spur Pinion Shafts (SSCPGS)
CP Rack & Pinions
Heat treated ground gears with high precision and strength has excellent cost-performance ratio. J Series products are also available.
Item # |
Sell Price |
CAD |
Module |
Circular Pitch |
No. of Teeth |
Shaft Diameter Left (A') |
Shaft Diameter Right (A) |
Pitch Diameter (C) |
Outer Diameter (D) |
Face Width (E) |
Total Length (G) |
Internal ID |
Sell Price 1 Value |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SSCPGS5-15 | $110.01 |
CAD
N/A
|
Module N/A 1.5915 | Circular Pitch N/A 5 | No. of Teeth N/A 15 | Shaft Diameter Left (A') N/A 0.756 in19.2 mm | Shaft Diameter Right (A) N/A 0.756 in19.2 mm | Pitch Diameter (C) N/A 0.940 in23.87 mm | Outer Diameter (D) N/A 1.065 in27.06 mm | Face Width (E) N/A 0.591 in15 mm | Total Length (G) N/A 5.512 in140 mm |
Internal ID
N/A
23964 |
110.01 |
| SSCPGS5-20 | $149.35 |
CAD
N/A
|
Module N/A 1.5915 | Circular Pitch N/A 5 | No. of Teeth N/A 20 | Shaft Diameter Left (A') N/A 1.071 in27.2 mm | Shaft Diameter Right (A) N/A 1.071 in27.2 mm | Pitch Diameter (C) N/A 1.253 in31.83 mm | Outer Diameter (D) N/A 1.378 in35.01 mm | Face Width (E) N/A 0.591 in15 mm | Total Length (G) N/A 5.512 in140 mm |
Internal ID
N/A
23965 |
149.35 |
| SSCPGS5-25 | $9,876.54 |
CAD
N/A
|
Module N/A 1.5915 | Circular Pitch N/A 5 | No. of Teeth N/A 25 | Shaft Diameter Left (A') N/A 1.189 in30.2 mm | Shaft Diameter Right (A) N/A 1.189 in30.2 mm | Pitch Diameter (C) N/A 1.567 in39.79 mm | Outer Diameter (D) N/A 1.692 in42.97 mm | Face Width (E) N/A 0.591 in15 mm | Total Length (G) N/A 5.512 in140 mm |
Internal ID
N/A
23966 |
9876.54 |
| SSCPGS10-10 | $176.05 |
CAD
N/A
|
Module N/A 3.1831 | Circular Pitch N/A 10 | No. of Teeth N/A 10 | Shaft Diameter Left (A') N/A 0.992 in25.2 mm | Shaft Diameter Right (A) N/A 0.992 in25.2 mm | Pitch Diameter (C) N/A 1.253 in31.83 mm | Outer Diameter (D) N/A 1.629 in41.38 mm | Face Width (E) N/A 1.181 in30 mm | Total Length (G) N/A 8.661 in220 mm |
Internal ID
N/A
23961 |
176.05 |
| SSCPGS10-15 | $268.92 |
CAD
N/A
|
Module N/A 3.1831 | Circular Pitch N/A 10 | No. of Teeth N/A 15 | Shaft Diameter Left (A') N/A 1.386 in35.2 mm | Shaft Diameter Right (A) N/A 1.386 in35.2 mm | Pitch Diameter (C) N/A 1.880 in47.75 mm | Outer Diameter (D) N/A 2.130 in54.11 mm | Face Width (E) N/A 1.181 in30 mm | Total Length (G) N/A 8.661 in220 mm |
Internal ID
N/A
23962 |
268.92 |
| SSCPGS10-20 | $380.54 |
CAD
N/A
|
Module N/A 3.1831 | Circular Pitch N/A 10 | No. of Teeth N/A 20 | Shaft Diameter Left (A') N/A 1.583 in40.2 mm | Shaft Diameter Right (A) N/A 1.583 in40.2 mm | Pitch Diameter (C) N/A 2.506 in63.66 mm | Outer Diameter (D) N/A 2.757 in70.03 mm | Face Width (E) N/A 1.181 in30 mm | Total Length (G) N/A 8.661 in220 mm |
Internal ID
N/A
23963 |
380.54 |
