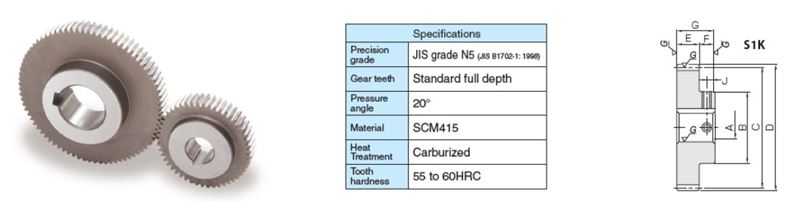

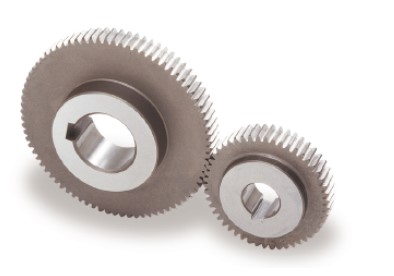

CP Ground Spur Gears (MSCPG)
CP Rack & Pinions
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.
Item # |
Sell Price |
CAD |
Module |
No. of Teeth |
Circular Pitch |
Bore Diameter (A) |
Pitch Diameter (C) |
Outer Diameter (D) |
Total Length (G) |
Internal ID |
Sell Price 1 Value |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MSCPG5-20A | $11,928.60 |
CAD
N/A
|
Module N/A 1.5915 | No. of Teeth N/A 20 | Circular Pitch N/A 5 | Bore Diameter (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.253 in31.83 mm | Outer Diameter (D) N/A 1.432 in36.37 mm | Total Length (G) N/A 1.181 in30 mm |
Internal ID
N/A
6402 |
11928.6 |
| MSCPG5-20B | $11,928.60 |
CAD
N/A
|
Module N/A 1.5915 | No. of Teeth N/A 20 | Circular Pitch N/A 5 | Bore Diameter (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 1.253 in31.83 mm | Outer Diameter (D) N/A 1.432 in36.37 mm | Total Length (G) N/A 1.181 in30 mm |
Internal ID
N/A
6403 |
11928.6 |
| MSCPG5-25A | $11,928.60 |
CAD
N/A
|
Module N/A 1.5915 | No. of Teeth N/A 25 | Circular Pitch N/A 5 | Bore Diameter (A) N/A 0.472 in12 mm | Pitch Diameter (C) N/A 1.567 in39.79 mm | Outer Diameter (D) N/A 1.747 in44.37 mm | Total Length (G) N/A 1.181 in30 mm |
Internal ID
N/A
6404 |
11928.6 |
| MSCPG5-25B | $11,928.60 |
CAD
N/A
|
Module N/A 1.5915 | No. of Teeth N/A 25 | Circular Pitch N/A 5 | Bore Diameter (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 1.567 in39.79 mm | Outer Diameter (D) N/A 1.747 in44.37 mm | Total Length (G) N/A 1.181 in30 mm |
Internal ID
N/A
6405 |
11928.6 |
| MSCPG5-30A | $11,928.60 |
CAD
N/A
|
Module N/A 1.5915 | No. of Teeth N/A 30 | Circular Pitch N/A 5 | Bore Diameter (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 1.880 in47.75 mm | Outer Diameter (D) N/A 2.062 in52.37 mm | Total Length (G) N/A 1.181 in30 mm |
Internal ID
N/A
6406 |
11928.6 |
| MSCPG5-30B | $11,928.60 |
CAD
N/A
|
Module N/A 1.5915 | No. of Teeth N/A 30 | Circular Pitch N/A 5 | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 1.880 in47.75 mm | Outer Diameter (D) N/A 2.062 in52.37 mm | Total Length (G) N/A 1.181 in30 mm |
Internal ID
N/A
6407 |
11928.6 |
| MSCPG5-40A | $11,930.90 |
CAD
N/A
|
Module N/A 1.5915 | No. of Teeth N/A 40 | Circular Pitch N/A 5 | Bore Diameter (A) N/A 0.591 in15 mm | Pitch Diameter (C) N/A 2.506 in63.66 mm | Outer Diameter (D) N/A 2.692 in68.37 mm | Total Length (G) N/A 1.181 in30 mm |
Internal ID
N/A
6408 |
11930.9 |
| MSCPG5-40B | $11,930.90 |
CAD
N/A
|
Module N/A 1.5915 | No. of Teeth N/A 40 | Circular Pitch N/A 5 | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 2.506 in63.66 mm | Outer Diameter (D) N/A 2.692 in68.37 mm | Total Length (G) N/A 1.181 in30 mm |
Internal ID
N/A
6409 |
11930.9 |
| MSCPG5-40C | $11,928.60 |
CAD
N/A
|
Module N/A 1.5915 | No. of Teeth N/A 40 | Circular Pitch N/A 5 | Bore Diameter (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 2.506 in63.66 mm | Outer Diameter (D) N/A 2.692 in68.37 mm | Total Length (G) N/A 1.181 in30 mm |
Internal ID
N/A
6410 |
11928.6 |
| MSCPG10-20A | $11,936.20 |
CAD
N/A
|
Module N/A 3.1831 | No. of Teeth N/A 20 | Circular Pitch N/A 10 | Bore Diameter (A) N/A 0.787 in20 mm | Pitch Diameter (C) N/A 2.506 in63.66 mm | Outer Diameter (D) N/A 2.785 in70.73 mm | Total Length (G) N/A 1.969 in50 mm |
Internal ID
N/A
6394 |
11936.2 |
| MSCPG10-20B | $11,934.90 |
CAD
N/A
|
Module N/A 3.1831 | No. of Teeth N/A 20 | Circular Pitch N/A 10 | Bore Diameter (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 2.506 in63.66 mm | Outer Diameter (D) N/A 2.785 in70.73 mm | Total Length (G) N/A 1.969 in50 mm |
Internal ID
N/A
6395 |
11934.9 |
| MSCPG10-25A | $11,940.50 |
CAD
N/A
|
Module N/A 3.1831 | No. of Teeth N/A 25 | Circular Pitch N/A 10 | Bore Diameter (A) N/A 0.984 in25 mm | Pitch Diameter (C) N/A 3.133 in79.58 mm | Outer Diameter (D) N/A 3.415 in86.73 mm | Total Length (G) N/A 1.969 in50 mm |
Internal ID
N/A
6396 |
11940.5 |
| MSCPG10-25B | $11,940.50 |
CAD
N/A
|
Module N/A 3.1831 | No. of Teeth N/A 25 | Circular Pitch N/A 10 | Bore Diameter (A) N/A 1.181 in30 mm | Pitch Diameter (C) N/A 3.133 in79.58 mm | Outer Diameter (D) N/A 3.415 in86.73 mm | Total Length (G) N/A 1.969 in50 mm |
Internal ID
N/A
6397 |
11940.5 |
| MSCPG10-30A | $9,876.54 |
CAD
N/A
|
Module N/A 3.1831 | No. of Teeth N/A 30 | Circular Pitch N/A 10 | Bore Diameter (A) N/A 1.181 in30 mm | Pitch Diameter (C) N/A 3.759 in95.49 mm | Outer Diameter (D) N/A 4.044 in102.73 mm | Total Length (G) N/A 1.969 in50 mm |
Internal ID
N/A
6398 |
9876.54 |
| MSCPG10-30B | $11,946.40 |
CAD
N/A
|
Module N/A 3.1831 | No. of Teeth N/A 30 | Circular Pitch N/A 10 | Bore Diameter (A) N/A 1.575 in40 mm | Pitch Diameter (C) N/A 3.759 in95.49 mm | Outer Diameter (D) N/A 4.044 in102.73 mm | Total Length (G) N/A 1.969 in50 mm |
Internal ID
N/A
6399 |
11946.4 |
| MSCPG10-40A | $9,876.54 |
CAD
N/A
|
Module N/A 3.1831 | No. of Teeth N/A 40 | Circular Pitch N/A 10 | Bore Diameter (A) N/A 1.181 in30 mm | Pitch Diameter (C) N/A 5.013 in127.32 mm | Outer Diameter (D) N/A 5.304 in134.73 mm | Total Length (G) N/A 1.969 in50 mm |
Internal ID
N/A
6400 |
9876.54 |
| MSCPG10-40B | $9,876.54 |
CAD
N/A
|
Module N/A 3.1831 | No. of Teeth N/A 40 | Circular Pitch N/A 10 | Bore Diameter (A) N/A 1.575 in40 mm | Pitch Diameter (C) N/A 5.013 in127.32 mm | Outer Diameter (D) N/A 5.304 in134.73 mm | Total Length (G) N/A 1.969 in50 mm |
Internal ID
N/A
6401 |
9876.54 |
