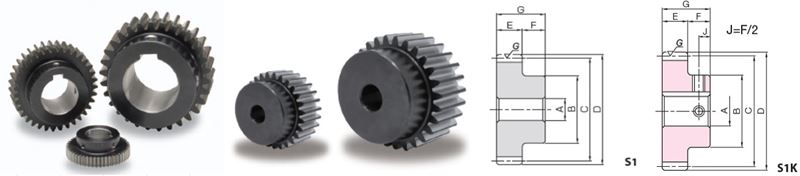

CP Ground Spur Gears (KSCPG)


Email This Page Download PDF Download PDF Printable Page
CP Ground Spur Gears (KSCPG) CP Rack & Pinions
  • KSCPG - Category/Asset/KSCPG---Category.jpg

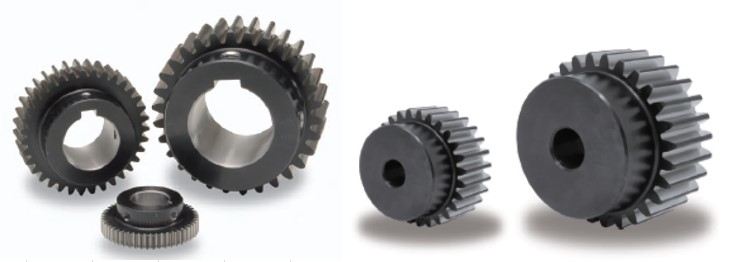

  • CP Ground Spur Gears KSCPG
  • KSCPG - Category/Asset/KSCPG---Category.jpg
  • CP Ground Spur Gears KSCPG
Increased strength with SCM440 material which is thermal refined.
1 - 25 of 72 | Results Per Page | View | Unit of Measure
1 2 3
Request Information Compare Items Search by Specification
Clear Filter

Module

No. of Teeth

Bore Diameter (A) (in)

Bore Diameter (A) (mm)

Pitch Diameter (C) (in)

Pitch Diameter (C) (mm)

Outer Diameter (D) (in)

Outer Diameter (D) (mm)

Total Length (G) (in)

Total Length (G) (mm)

Item #

Sell Price

CAD

Module

No. of Teeth

Circular Pitch

Bore Diameter (A)

Pitch Diameter (C)

Outer Diameter (D)

Total Length (G)

Internal ID

Sell Price 1 Value

KSCPG5-20 $9,876.54 CAD N/A Module N/A 1.59155 No. of Teeth N/A 20 Circular Pitch N/A Bore Diameter (A) N/A 0.394 in10 mm Pitch Diameter (C) N/A 1.253 in31.83 mm Outer Diameter (D) N/A 1.432 in36.37 mm Total Length (G) N/A 1.181 in30 mm Internal ID N/A
5278 		9876.54
KSCPG5-25 $95.50 CAD N/A CAD Icon (for items table) Module N/A 1.59155 No. of Teeth N/A 25 Circular Pitch N/A Bore Diameter (A) N/A 0.394 in10 mm Pitch Diameter (C) N/A 1.567 in39.79 mm Outer Diameter (D) N/A 1.747 in44.37 mm Total Length (G) N/A 1.181 in30 mm Internal ID N/A
5281 		95.5
KSCPG5-30 $106.81 CAD N/A CAD Icon (for items table) Module N/A 1.59155 No. of Teeth N/A 30 Circular Pitch N/A Bore Diameter (A) N/A 0.591 in15 mm Pitch Diameter (C) N/A 1.880 in47.75 mm Outer Diameter (D) N/A 2.062 in52.37 mm Total Length (G) N/A 1.181 in30 mm Internal ID N/A
5290 		106.81
KSCPG5-40 $133.20 CAD N/A CAD Icon (for items table) Module N/A 1.59155 No. of Teeth N/A 40 Circular Pitch N/A Bore Diameter (A) N/A 0.591 in15 mm Pitch Diameter (C) N/A 2.506 in63.66 mm Outer Diameter (D) N/A 2.692 in68.37 mm Total Length (G) N/A 1.181 in30 mm Internal ID N/A
5298 		133.2
KSCPG5-20J10 $9,876.54 CAD N/A Module N/A 1.59155 No. of Teeth N/A 20 Circular Pitch N/A Bore Diameter (A) N/A 0.394 in10 mm Pitch Diameter (C) N/A 1.253 in31.83 mm Outer Diameter (D) N/A 1.432 in36.37 mm Total Length (G) N/A 1.181 in30 mm Internal ID N/A
5279 		9876.54
KSCPG5-20J12 $9,876.54 CAD N/A Module N/A 1.59155 No. of Teeth N/A 20 Circular Pitch N/A Bore Diameter (A) N/A 0.394 in10 mm Pitch Diameter (C) N/A 1.253 in31.83 mm Outer Diameter (D) N/A 1.432 in36.37 mm Total Length (G) N/A 1.181 in30 mm Internal ID N/A
5280 		9876.54
KSCPG5-25J10 $145.80 CAD N/A CAD Icon (for items table) Module N/A 1.59155 No. of Teeth N/A 25 Circular Pitch N/A Bore Diameter (A) N/A 0.394 in10 mm Pitch Diameter (C) N/A 1.567 in39.79 mm Outer Diameter (D) N/A 1.747 in44.37 mm Total Length (G) N/A 1.181 in30 mm Internal ID N/A
5282 		145.8
KSCPG5-25J12 $159.50 CAD N/A CAD Icon (for items table) Module N/A 1.59155 No. of Teeth N/A 25 Circular Pitch N/A Bore Diameter (A) N/A 0.394 in10 mm Pitch Diameter (C) N/A 1.567 in39.79 mm Outer Diameter (D) N/A 1.747 in44.37 mm Total Length (G) N/A 1.181 in30 mm Internal ID N/A
5283 		159.5
KSCPG5-25J14 $159.50 CAD N/A CAD Icon (for items table) Module N/A 1.59155 No. of Teeth N/A 25 Circular Pitch N/A Bore Diameter (A) N/A 0.394 in10 mm Pitch Diameter (C) N/A 1.567 in39.79 mm Outer Diameter (D) N/A 1.747 in44.37 mm Total Length (G) N/A 1.181 in30 mm Internal ID N/A
5284 		159.5
KSCPG5-25J15 $159.50 CAD N/A Module N/A 1.59155 No. of Teeth N/A 25 Circular Pitch N/A Bore Diameter (A) N/A 0.394 in10 mm Pitch Diameter (C) N/A 1.567 in39.79 mm Outer Diameter (D) N/A 1.747 in44.37 mm Total Length (G) N/A 1.181 in30 mm Internal ID N/A
5285 		159.5
KSCPG5-25J16 $159.50 CAD N/A CAD Icon (for items table) Module N/A 1.59155 No. of Teeth N/A 25 Circular Pitch N/A Bore Diameter (A) N/A 0.394 in10 mm Pitch Diameter (C) N/A 1.567 in39.79 mm Outer Diameter (D) N/A 1.747 in44.37 mm Total Length (G) N/A 1.181 in30 mm Internal ID N/A
5286 		159.5
KSCPG5-25J17 $159.50 CAD N/A CAD Icon (for items table) Module N/A 1.59155 No. of Teeth N/A 25 Circular Pitch N/A Bore Diameter (A) N/A 0.394 in10 mm Pitch Diameter (C) N/A 1.567 in39.79 mm Outer Diameter (D) N/A 1.747 in44.37 mm Total Length (G) N/A 1.181 in30 mm Internal ID N/A
5287 		159.5
KSCPG5-25J18 $159.50 CAD N/A CAD Icon (for items table) Module N/A 1.59155 No. of Teeth N/A 25 Circular Pitch N/A Bore Diameter (A) N/A 0.394 in10 mm Pitch Diameter (C) N/A 1.567 in39.79 mm Outer Diameter (D) N/A 1.747 in44.37 mm Total Length (G) N/A 1.181 in30 mm Internal ID N/A
5288 		159.5
KSCPG5-25J19 $159.50 CAD N/A CAD Icon (for items table) Module N/A 1.59155 No. of Teeth N/A 25 Circular Pitch N/A Bore Diameter (A) N/A 0.394 in10 mm Pitch Diameter (C) N/A 1.567 in39.79 mm Outer Diameter (D) N/A 1.747 in44.37 mm Total Length (G) N/A 1.181 in30 mm Internal ID N/A
5289 		159.5
KSCPG5-30J15 $156.10 CAD N/A CAD Icon (for items table) Module N/A 1.59155 No. of Teeth N/A 30 Circular Pitch N/A Bore Diameter (A) N/A 0.591 in15 mm Pitch Diameter (C) N/A 1.880 in47.75 mm Outer Diameter (D) N/A 2.062 in52.37 mm Total Length (G) N/A 1.181 in30 mm Internal ID N/A
5291 		156.1
KSCPG5-30J16 $169.70 CAD N/A CAD Icon (for items table) Module N/A 1.59155 No. of Teeth N/A 30 Circular Pitch N/A Bore Diameter (A) N/A 0.591 in15 mm Pitch Diameter (C) N/A 1.880 in47.75 mm Outer Diameter (D) N/A 2.062 in52.37 mm Total Length (G) N/A 1.181 in30 mm Internal ID N/A
5292 		169.7
KSCPG5-30J17 $169.70 CAD N/A CAD Icon (for items table) Module N/A 1.59155 No. of Teeth N/A 30 Circular Pitch N/A Bore Diameter (A) N/A 0.591 in15 mm Pitch Diameter (C) N/A 1.880 in47.75 mm Outer Diameter (D) N/A 2.062 in52.37 mm Total Length (G) N/A 1.181 in30 mm Internal ID N/A
5293 		169.7
KSCPG5-30J18 $169.70 CAD N/A CAD Icon (for items table) Module N/A 1.59155 No. of Teeth N/A 30 Circular Pitch N/A Bore Diameter (A) N/A 0.591 in15 mm Pitch Diameter (C) N/A 1.880 in47.75 mm Outer Diameter (D) N/A 2.062 in52.37 mm Total Length (G) N/A 1.181 in30 mm Internal ID N/A
5294 		169.7
KSCPG5-30J19 $169.70 CAD N/A CAD Icon (for items table) Module N/A 1.59155 No. of Teeth N/A 30 Circular Pitch N/A Bore Diameter (A) N/A 0.591 in15 mm Pitch Diameter (C) N/A 1.880 in47.75 mm Outer Diameter (D) N/A 2.062 in52.37 mm Total Length (G) N/A 1.181 in30 mm Internal ID N/A
5295 		169.7
KSCPG5-30J20 $169.70 CAD N/A CAD Icon (for items table) Module N/A 1.59155 No. of Teeth N/A 30 Circular Pitch N/A Bore Diameter (A) N/A 0.591 in15 mm Pitch Diameter (C) N/A 1.880 in47.75 mm Outer Diameter (D) N/A 2.062 in52.37 mm Total Length (G) N/A 1.181 in30 mm Internal ID N/A
5296 		169.7
KSCPG5-30J22 $169.70 CAD N/A CAD Icon (for items table) Module N/A 1.59155 No. of Teeth N/A 30 Circular Pitch N/A Bore Diameter (A) N/A 0.591 in15 mm Pitch Diameter (C) N/A 1.880 in47.75 mm Outer Diameter (D) N/A 2.062 in52.37 mm Total Length (G) N/A 1.181 in30 mm Internal ID N/A
5297 		169.7
KSCPG5-40J15 $182.70 CAD N/A CAD Icon (for items table) Module N/A 1.59155 No. of Teeth N/A 40 Circular Pitch N/A Bore Diameter (A) N/A 0.591 in15 mm Pitch Diameter (C) N/A 2.506 in63.66 mm Outer Diameter (D) N/A 2.692 in68.37 mm Total Length (G) N/A 1.181 in30 mm Internal ID N/A
5299 		182.7
KSCPG5-40J16 $196.10 CAD N/A CAD Icon (for items table) Module N/A 1.59155 No. of Teeth N/A 40 Circular Pitch N/A Bore Diameter (A) N/A 0.591 in15 mm Pitch Diameter (C) N/A 2.506 in63.66 mm Outer Diameter (D) N/A 2.692 in68.37 mm Total Length (G) N/A 1.181 in30 mm Internal ID N/A
5300 		196.1
KSCPG5-40J17 $196.10 CAD N/A CAD Icon (for items table) Module N/A 1.59155 No. of Teeth N/A 40 Circular Pitch N/A Bore Diameter (A) N/A 0.591 in15 mm Pitch Diameter (C) N/A 2.506 in63.66 mm Outer Diameter (D) N/A 2.692 in68.37 mm Total Length (G) N/A 1.181 in30 mm Internal ID N/A
5301 		196.1
KSCPG5-40J18 $196.10 CAD N/A CAD Icon (for items table) Module N/A 1.59155 No. of Teeth N/A 40 Circular Pitch N/A Bore Diameter (A) N/A 0.591 in15 mm Pitch Diameter (C) N/A 2.506 in63.66 mm Outer Diameter (D) N/A 2.692 in68.37 mm Total Length (G) N/A 1.181 in30 mm Internal ID N/A
5302 		196.1
1 - 25 of 72 | Results Per Page | View | Unit of Measure
1 2 3
*
