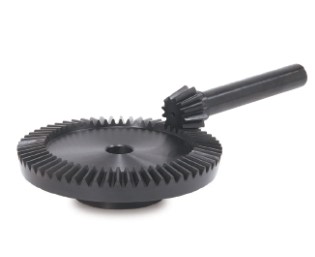

Bevel Gears & Pinion Shafts (SBY) On KHK Gears

Free Delivery

3 types are available for shafts at 45°, 60° and 120°.
Please note that all J-Series, E-Series, F-Series, H-Series, HJ-Series & S-Series products are made-to-order, noncancellable, and non-returnable.

1 - 8 of 8 | Results Per Page | View | Unit of Measure

Request Information Compare Items

Clear Filter

Module

No. of Teeth

Shape

Bore Diameter (A) (in)

Bore Diameter (A) (mm)

Pitch Diameter (C) (in)

Pitch Diameter (C) (mm)

Item #	Sell Price	CAD	Gear Ratio	Module	No. of Teeth	Shape	Bore Diameter (A)	Pitch Diameter (C)	Outer Diameter (D)	Total Length (F)	Internal ID	Sell Price 1 Value

SB1.5-1260	$46.47	N/A	N/A 5	N/A 1.5	N/A 12	N/A B8	N/A 0.480 in12.2 mm	N/A 0.709 in18 mm	N/A 0.876 in22.24 mm	N/A 3.821 in97.06 mm	N/A 9848	46.47
SB1.5-6012	$87.19	N/A	N/A 5	N/A 1.5	N/A 60	N/A B4	N/A 0.472 in12 mm	N/A 3.543 in90 mm	N/A 3.556 in90.33 mm	N/A 0.941 in23.89 mm	N/A 9860	87.19
SB2-1260	$58.75	N/A	N/A 5	N/A 2	N/A 12	N/A B8	N/A 0.598 in15.2 mm	N/A 0.945 in24 mm	N/A 1.167 in29.65 mm	N/A 4.609 in117.08 mm	N/A 9862	58.75
SB2-6012	$141.86	N/A	N/A 5	N/A 2	N/A 60	N/A B4	N/A 0.591 in15 mm	N/A 4.724 in120 mm	N/A 4.741 in120.43 mm	N/A 1.254 in31.85 mm	N/A 9874	141.86
SB2.5-1260	$80.32	N/A	N/A 5	N/A 2.5	N/A 12	N/A B8	N/A 0.795 in20.2 mm	N/A 1.181 in30 mm	N/A 1.459 in37.06 mm	N/A 5.634 in143.1 mm	N/A 9876	80.32
SB2.5-6012	$211.59	N/A	N/A 5	N/A 2.5	N/A 60	N/A B4	N/A 0.787 in20 mm	N/A 5.906 in150 mm	N/A 5.927 in150.54 mm	N/A 1.567 in39.81 mm	N/A 9890	211.59
SB3-1260	$103.65	N/A	N/A 5	N/A 3	N/A 12	N/A B8	N/A 0.994 in25.25 mm	N/A 1.417 in36 mm	N/A 1.751 in44.48 mm	N/A 6.779 in172.19 mm	N/A 9892	103.65
SB3-6012	$305.51	N/A	N/A 5	N/A 3	N/A 60	N/A B4	N/A 0.787 in20 mm	N/A 7.087 in180 mm	N/A 7.112 in180.65 mm	N/A 1.867 in47.43 mm	N/A 9906	305.51
